21W 2100LM MODUALR AND INTEGRATED LED DOWNLIGHT

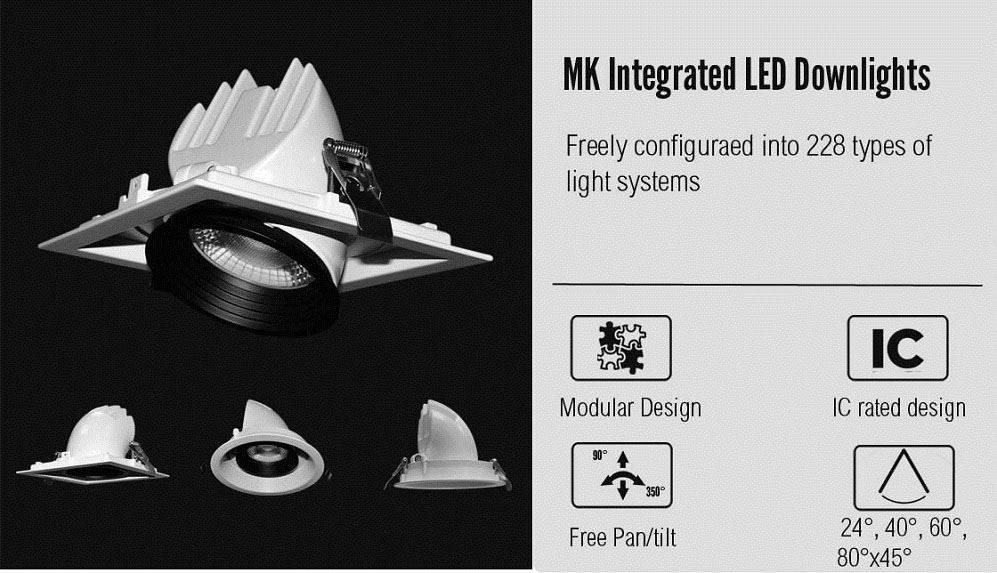

The MK range of integrated LED downlights lead the trends of modern commercial lighting design with modular and integrated approach for maximizing the benefit of user experience. The 21W MK modular downlight, which's offered with high lumen of 2100LM, comprises removable and interchangeable LED sources, optical lens, LED power supply, as well as external cover accessories, etc. This is one of the biggest selling point for the customers for helping them reducing the inventory costs and saving repair & maintenance costs. With multiple and user-friendly accessories, these adjsutable LED downlights are incredibly easy and quick to be docked into different light systems.



To ensure stable and perfect heat transfer performance, we used die casting aluminum housing for the light system. This modular light fitting also works well with a wide range of interchangeable optics including 24°,38°,60°and 80°x45°. They are able to offer both general and vertical precise lighting distributions within the spaces of hospitality, retail stores, arts rooms, residential areas, offices, etc. Besides, with IC rated design, the luminaires fit in well with environments where insulated ceilings are included and humidity is high.


Base (standard designation):
DOWNLOAD
click to print page
  • photo name
  • photo name
  • photo name
  • photo name
  • photo name

FEATURES:

• Up to 100LPW energy efficacy, delivering sufficient lighting with less power consumptions.

Freely customized into up to hundreds of different light systems with a great variety of removable and exchangeable light control gears.

• Modular and user-friendly design that brings maximum value to users for easy and quick replacement of separate lighting parts.

• Offered with flexible lighting patterns of 24°, 40°, 60°, 80°x45°

• Support a pan of 350 degrees and free tilt of 50 degrees

• Included with Non-dim, Triac and ELV brightness control solutions

• Passive cooling power system with PF more than 0.95

• IC rated LED downlights, working well in locations of high humidity and insulated ceiling

• High stability and safety performance with certificates of ETL and FCC

SPECIFICATION:

Product   CodeR6-DL003-21-IC
Produce   Name 21W modular and integrated LED downlights
Input Voltage120V AC
Power21W
Power Factor>0.95
DimmableNon-dim, TRIAC/ELV
Lumen Flux2000lm
Beam Angle24°, 38°, 60°, 80°x45°
CCT Optial2700K/3000K/4000K/5000K
CRI Optial

CRI82 (CRI90 available)

Size7 5/16"x5/1/2"
Cutout Size D6 1/2"
