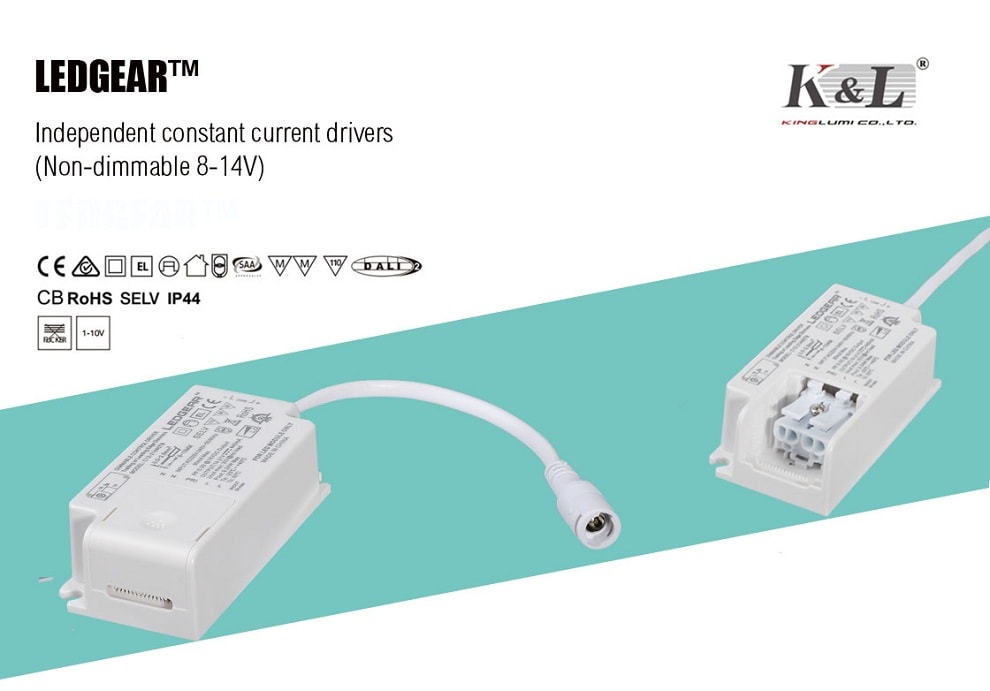

The LEDGEAR™ types of Non-dimmable 8-14V LED drivers utilize the independent constant current design with output voltage offered from 3W to 43W. These drivers for led lights are easily assembled and disassembled due to strain-relief and loop-through mechanical advantages. They are also engineered with screw free design for helping users save time spent on installations of light fixtures. Compared to the built-in drivers, the LEDGEAR™ power supply led drivers do not need the junction box and can be installed out of light fixtures easily and quickly. Besides, we also provide two- hole types of push-wire terminals (L,L,N,N) for the input AC cables to ensure the cable wiring is conducted smoothly.
The LED power supply drivers, with a size of 92x45x26mm, are manufactured with a 225mm long DC cable along with 5521(female) DC terminals. It is important to mention that these 8-14V led power drivers also feature flicker-free design that helps generate the comfortable and healthy lighting. For the output voltage and current performances, we are able to deliver custom design solutions based on the unique and specific requirements. Praised by both new and existing customers due to high stability and quality, these IP44 rated flicker free led drivers can operate well at a long service life of more than 50,000 hours. After being tested successfully under the comprehensive and stringent industry standards, the LEDGEAR™ range of led drivers are presently certified by Class II,SELV,EN61347, ROHS, CE,CB,EL,C-TICK,SAA.
FETURES:
• IP44 Non-dimmable 8-14V independent constant current led drivers
• Utilize the train-relief and loop through design for user-friendly installation.
• Through wiring with 2-hole press-in type terminals(L, L, N, N); Max. 8A.
• Permissible AC cable with 0.5-2.5mm2 wire gauge and φ 3.5~12mm PVC jacket
• Implement over-current, over-voltage, over-temperature,overload, short-circuit protection
• Long service life of 50,000 hrs
• Custom design service is available on output voltage and current.
• Suitable for emergency lighting with DC input
• Pass the grow wire test under 650°C
• For luminaires of protection class I, class II, class III
• Used either in independent or built-in style (including 2 fixations)
• Certified by Class II,SELV,EN61347, ROHS, CE,CB,EL,C-TICK,SAA
• 5-year warranty service
