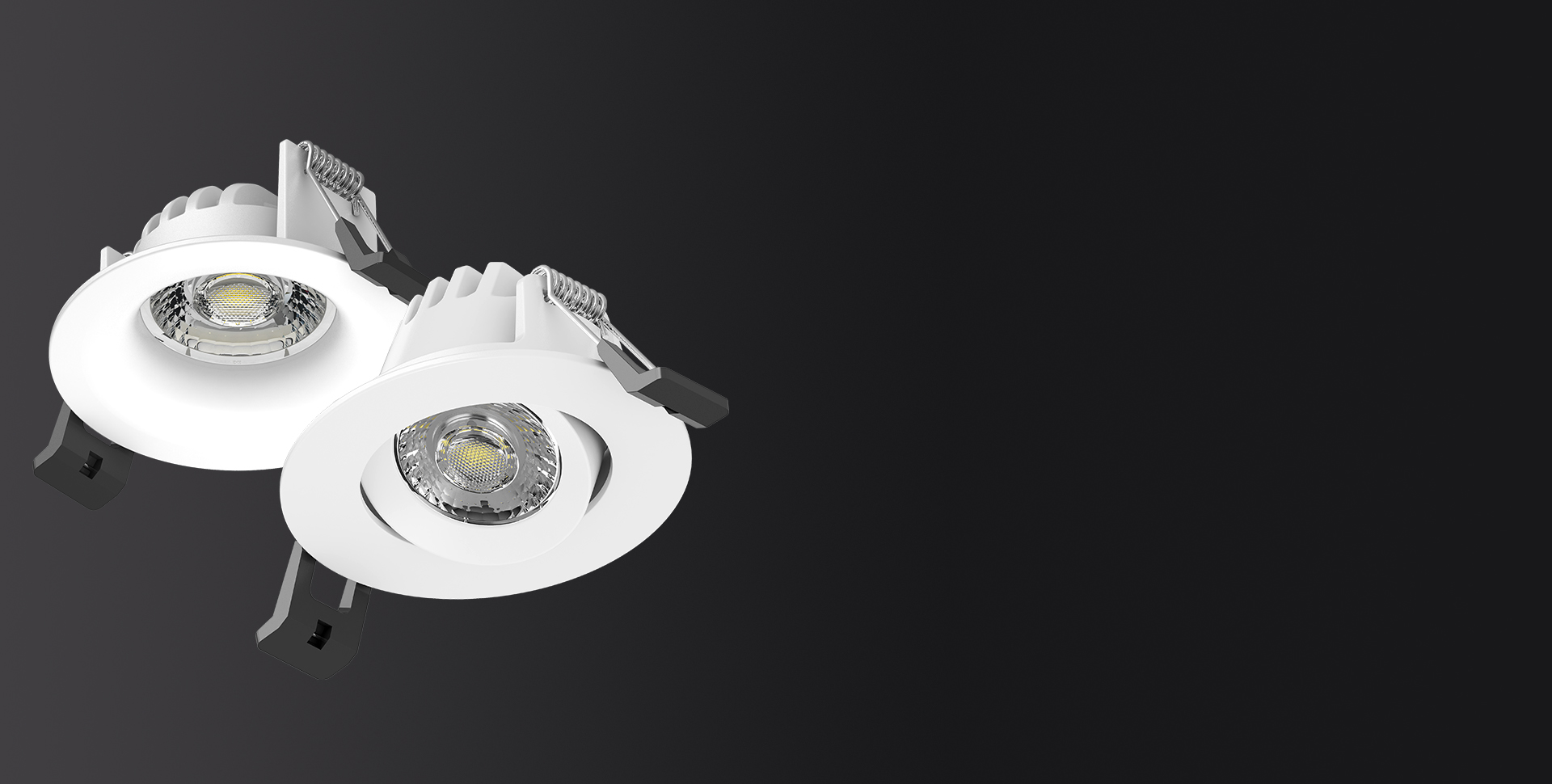

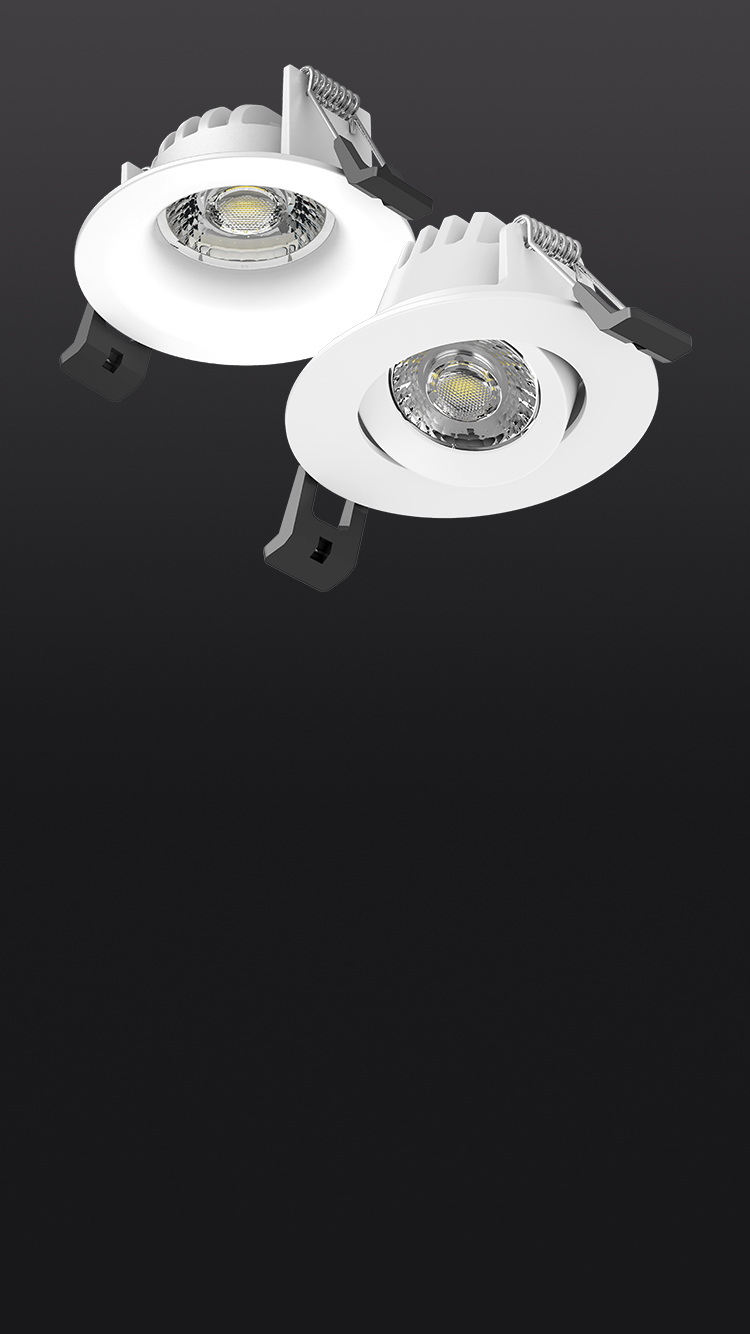

EVOLITE G2 Downlight
Evolite LED downlight equivalent to 50W-90W halogen downlights and achieve energy savings of up to 85%, IP44 bathroom rated, including dust and splashing water. It's suitable for a diversity of applications and emits pleasant basic lighting in general building sections, corridors, reception areas, conference rooms and traffic zones. To make installation simple, the downlight features a 'loop in & loop out' system which allows you install multiple units together by mains wiring.
Product advantage
Relevant data
Product parameter
| Product Name | EVOLITE G2 Downlight | EVOLITE G2 Downlight | EVOLITE G2 Downlight | EVOLITE G2 Downlight | EVOLITE G2 Downlight |
| Cut-out(If recessed mounted) | D62-75mm | D66-75mm | D62-75mm | D66-75mm | D66-75mm |
| LED Voltage (V) | 18V | 18V | 36V | 36V | 36V |
| Input voltage | 220V~240Vac | 220V~240Vac | 220V~240Vac | 220V~240Vac | 220V~240Vac |
| CCT | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K | 2700K-6500K |
| Lumen | 500lm | 500lm | 800lm | 1050lm | 720lm |
| Beam angle | 38°, 60° | 38°, 60° | 38°, 60° | 38°, 60° | 38°, 60° |
| Dimensions | 82x61x32 | 82x65x37 | 82x61x32 | 82x65x37 | 82x65x37 |
| Ra | 95 | 95 | 90 | 90 | 90 |
| Finish | WH/BK | WH/BK | WH/BK | WH/BK | WH/BK |
