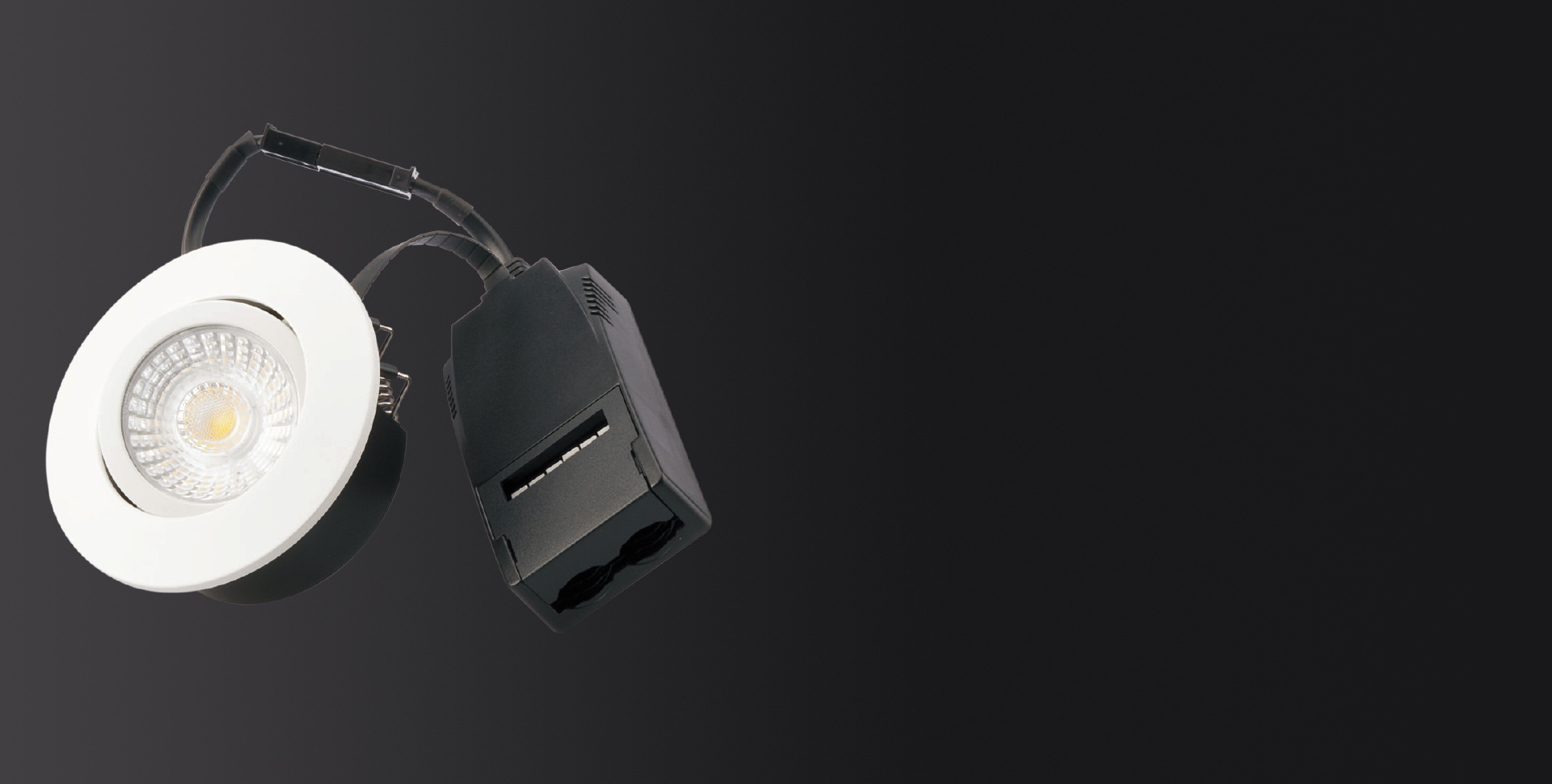

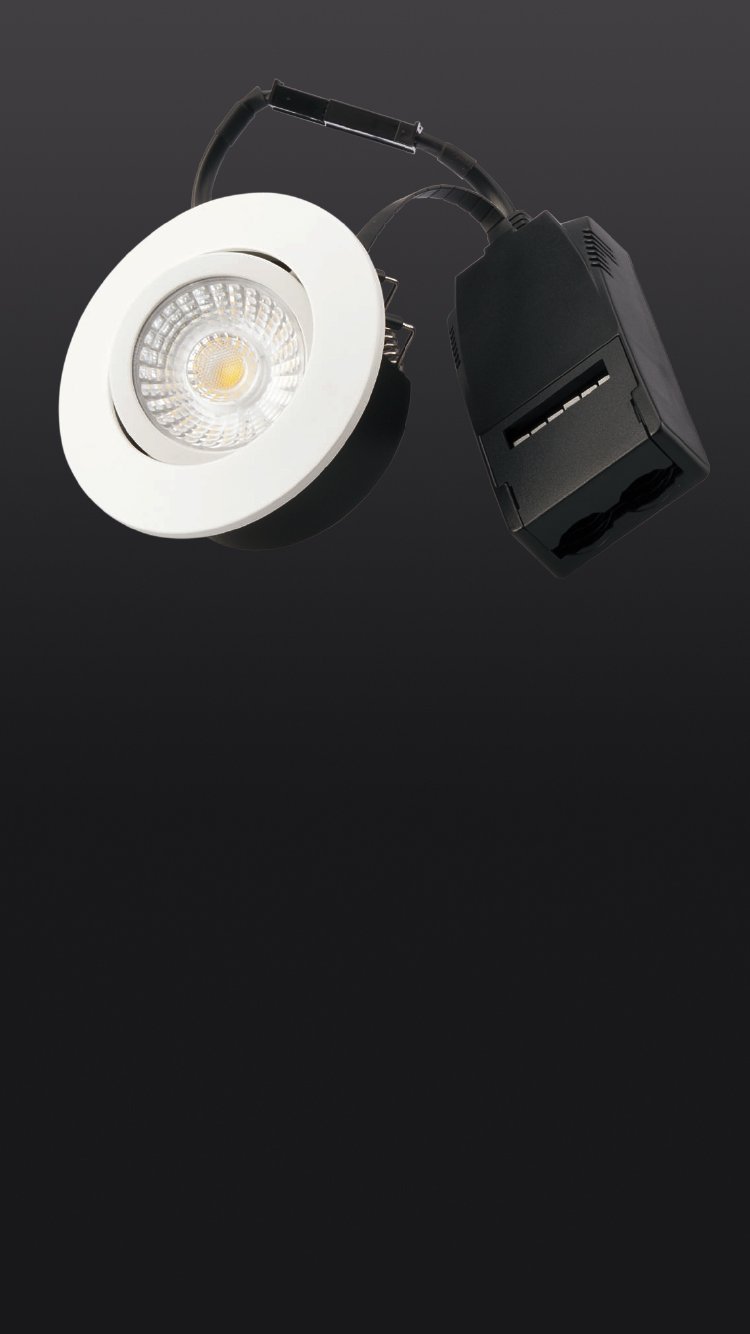

JUPITER G3 DOWNLIGHT

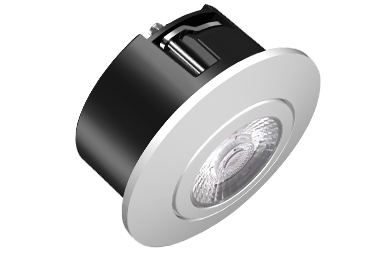

Upgrade from 1.0, Jupiter 2.0 family is a downlight suitable for insulation ceiling, with low profile(33mm/40mm), airtight, IP 44 and quick installation. Powered by CREE® COB LED, Jupiter 2.0 provides high lumen output for 50W halogen retrofit application. Screwless strain relief with 6pcs T-type push terminals makes it easy for Loop in/out and connection. The family combines: Jupiter Deep, Jupiter 360, Jupiter Screwfix. Jupiter Deep is fixed deep optics; Jupiter 360 has 150° rotation plus +/-30° tilt; Jupiter Screwfix is to fit cement-bonded wood wool panels ceiling.
Product advantage

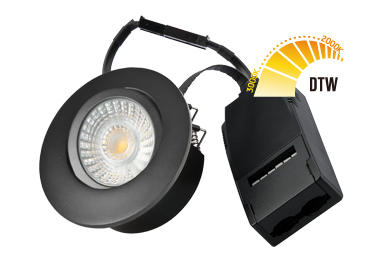

Triac dimming control 100% -10% brightness.DIM to Warm available on request
Up to 80lm/W & IP44

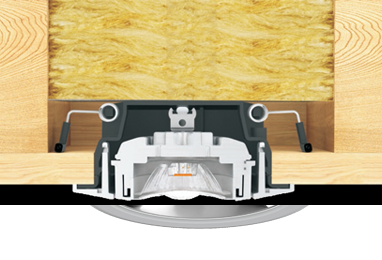

Low profile, suitable for insulation ceiling
Design to fit all different recessed ceiling conditions for residential
Relevant data
Product parameter
| Product Name | JUPITER G3 DOWNLIGHT | JUPITER G3 DOWNLIGHT | JUPITER G3 DOWNLIGHT | JUPITER G3 DOWNLIGHT | JUPITER G3 DOWNLIGHT | JUPITER G3 DOWNLIGHT |
| Cut-out(If recessed mounted) | D70mm | D70mm | D70mm | D70mm | D70mm | D70mm |
| Input power | 6W | 6W | 6W | 6W | 6W | 6W |
| Input voltage | 220V~240Vac | 220V~240Vac | 220V~240Vac | 220V~240Vac | 220V~240Vac | 220V~240Vac |
| CCT | 2000K-3000K | 2000K-3000K | 2000K-3000K | 2000K-3000K | 2000K-3000K | 2000K-3000K |
| Lumen | 580lm | 580lm | 580lm | 320lm | 320lm | 320lm |
| Beam angle | 24°，38°, 60° | 24°，38°, 60° | 24°，38°, 60° | 38°, 60° | 38°, 60° | 38°, 60° |
| Dimensions | 88x71x39 | 88x71x39 | 88x71x39 | 88x71x39 | 88x71x39 | 88x71x39 |
| Dimming | Triac | Triac | Triac | Triac | Triac | Triac |
