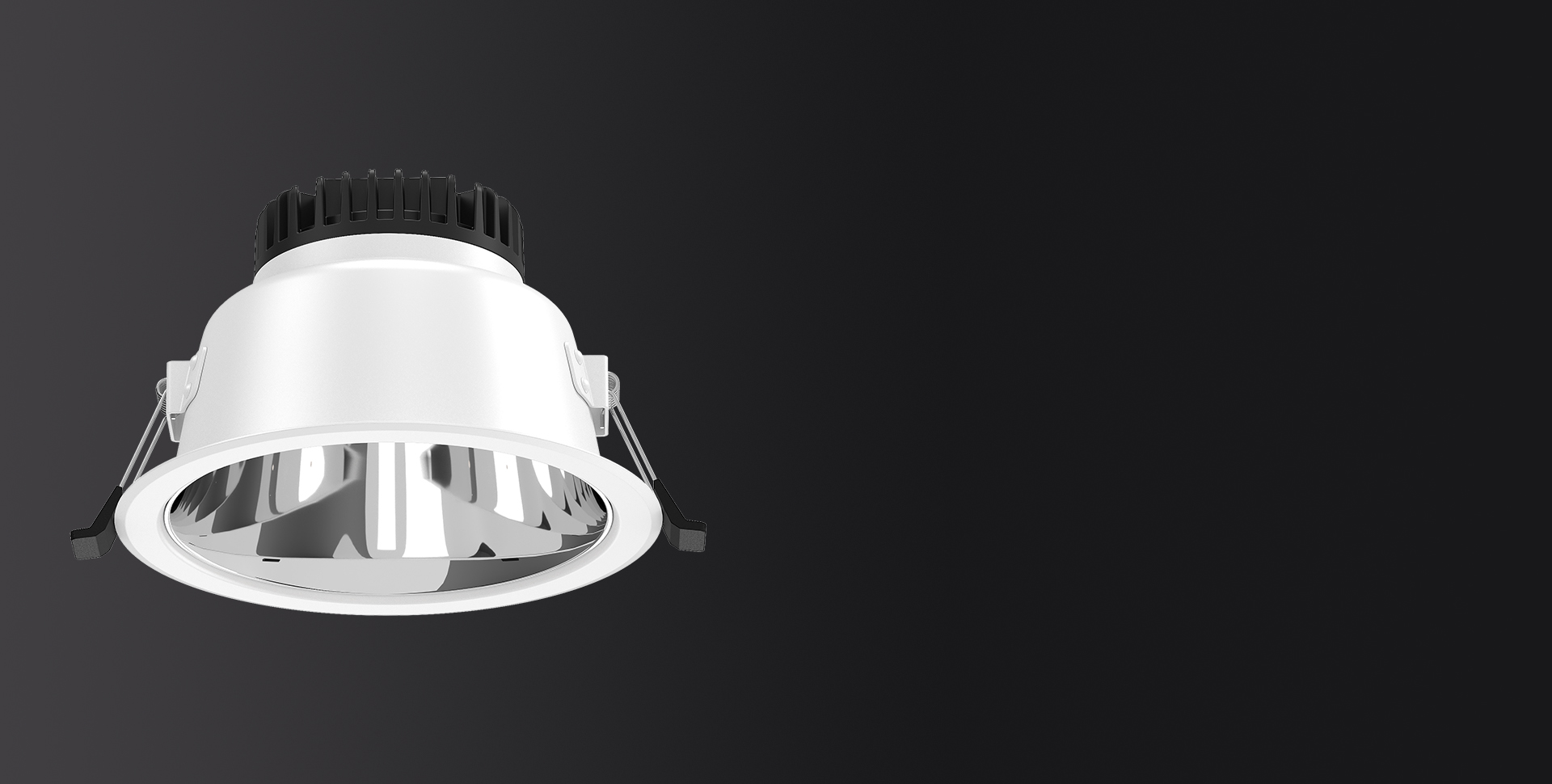

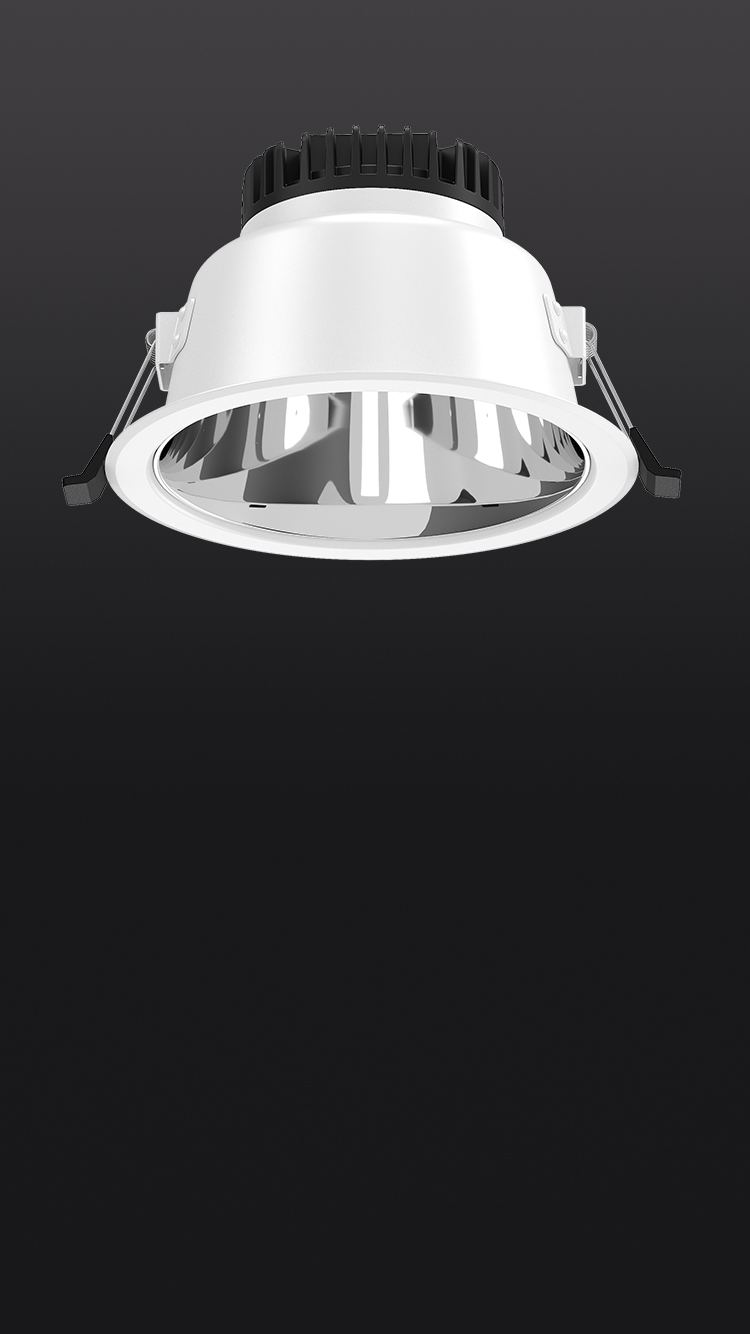

Milo™ G2 downlight
Milo™ G2 downlight , a new line of high performance portfolio dedicated
to architectural lighting segment. With complete modular design

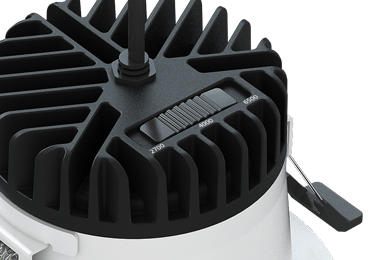

concept and equipped with the latest MultiCCT and MultiPower
technology innovation , it simply configure multiply of combination to
satisfy diversified customer’s requirement. This system unveils a
special combination of unobtrusive light sourcing superior performance ,
high-quality materials and best in class LED technology and drivers .

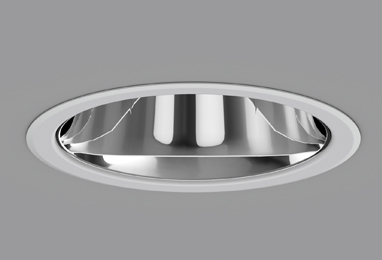

The vaccum aluminum plating specular reflector with lens design
minimized the glare .Suitable for VDUs workplace light according to EN
12464-1 (UGR 19, UGR 22) ; 6 different aperture sizes(Ø110 , Ø120 ,
Ø150 , Ø170,Ø210, Ø225 , Ø270 . unit in mm) , and reflectors (specular/
high-gloss) to create infinite possibilities for comfortable ambience
Product advantage
Relevant data
Product parameter
| Product Name | LED DOWNLIGHT | LED DOWNLIGHT | LED DOWNLIGHT | EVOLITE G2 Downlight | EVOLITE G2 Downlight | |
| Cut-out(If recessed mounted) | D110-210MM | D110-210MM | D210-270MM | D66-75mm | D66-75mm | |
| Beam Angle(°) | 85° | 85° | 85° | 36V | 36V | |
| Light SourceInput Voltage(VDC | 35v | 35v | 35v | 220V~240Vac | 220V~240Vac | |
| CCT | 3000-4000-5700K | 3000-4000-5700K | 3000-4000-5700K | 2700K-6500K | 2700K-6500K | |
| Lumen Output(LM) | 1250LM | 2030LM | 4070LM | 82x65x37 | 82x65x37 | |
| Power | 15W | 20W | 36W | |||
| Ra | 80 | 80 | 80 | |||
| DxdxH(mm) | 124x102x84 172x142x106 215x147x102 270x195x107 |
150x102x84 150x102x84 172x142x106 215x147x102 270x195x107 |
231x203x109 265x210x110 320x250x110 |
