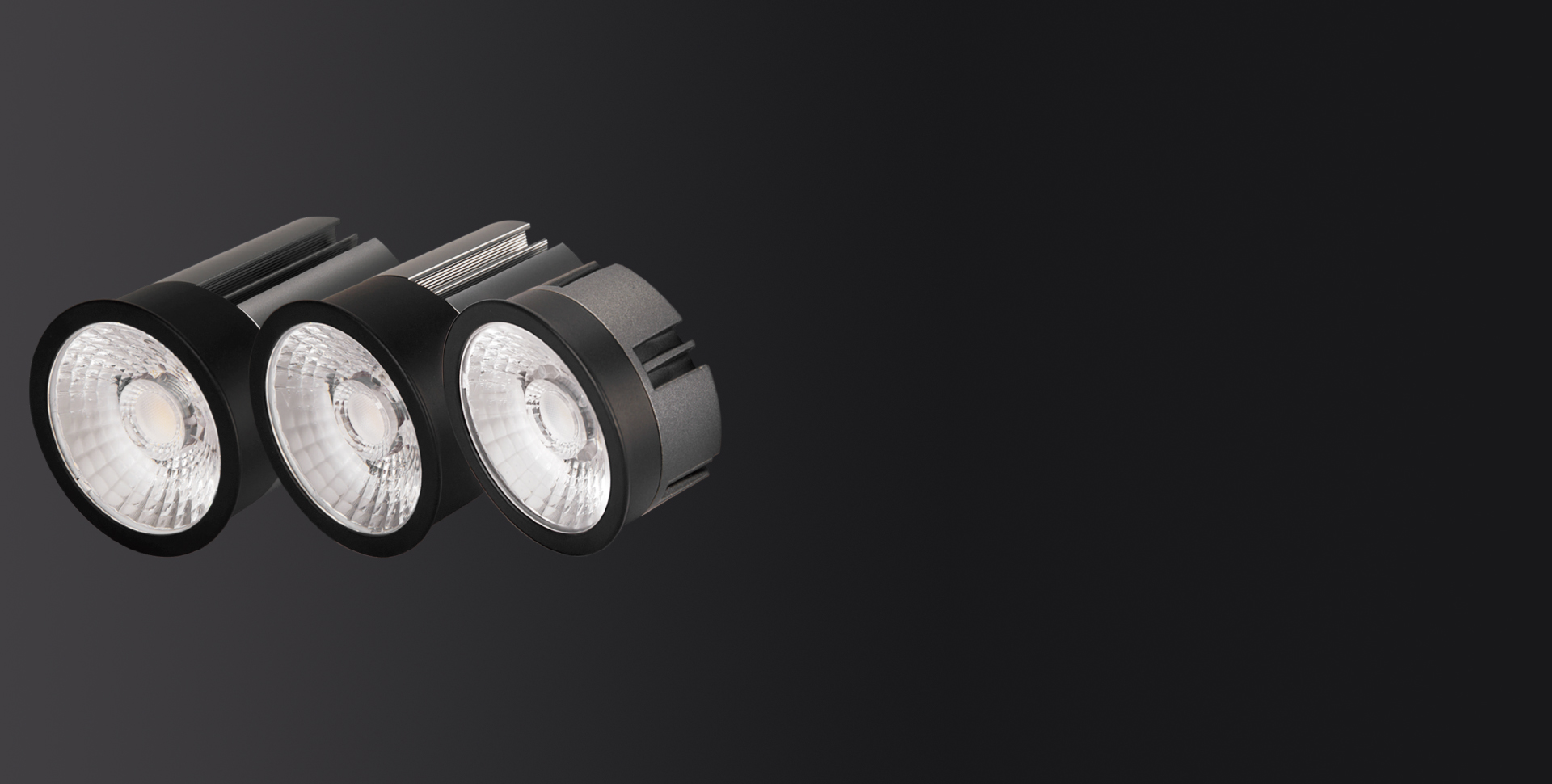

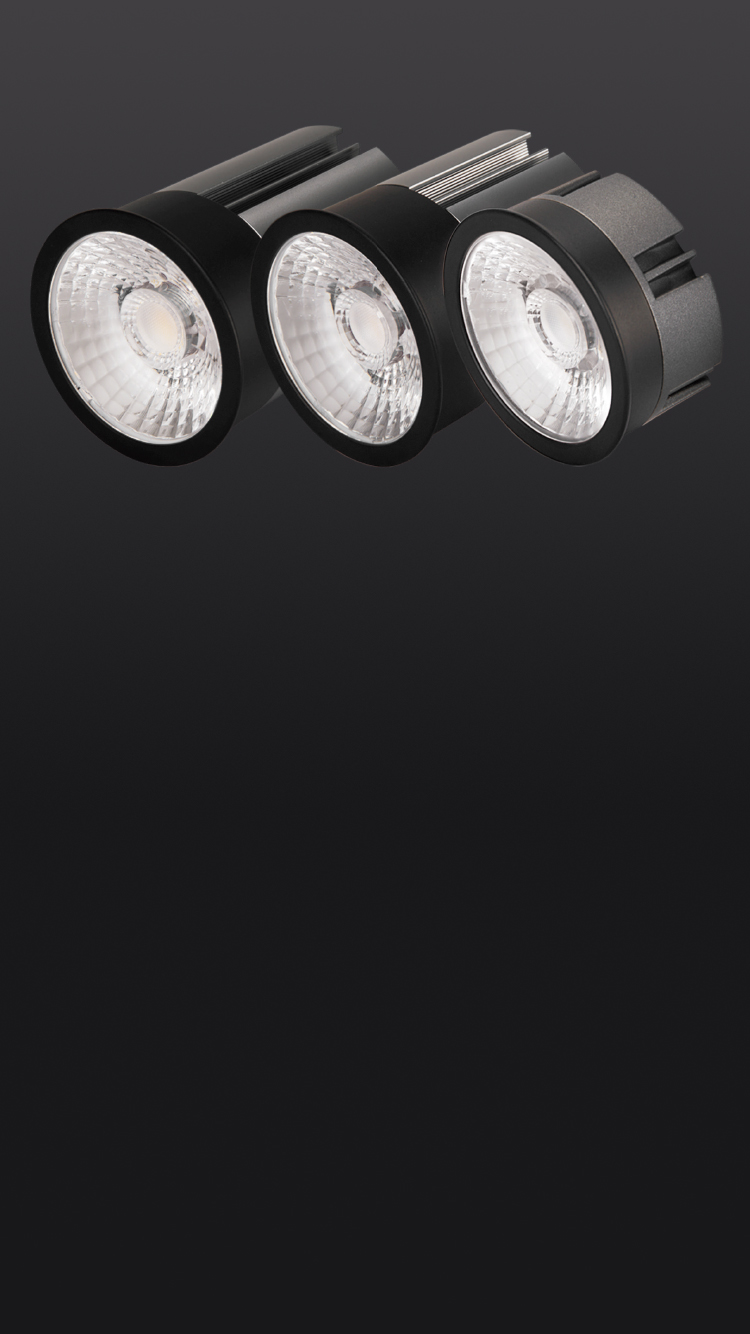

SATURN MODULE-Rocket

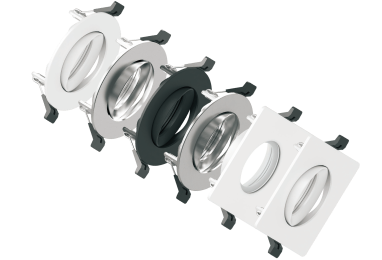

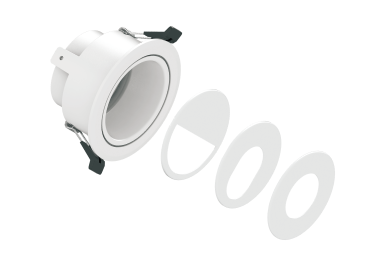

Rocket module is a MR16 design, which can fit most of MR16 in the market. The chips with high light efciency R9 can reach 90. There are variety of frames, light engines and beam angles for option. Due to the same diameter of the engine, it’s with interchangeable optics using diferent lens,high flexibility and save your inventory.
Applications:
Ofces,Banks,Education/Schools,Government,Healthca
re,Hospitality,Retail,stores,Supermarkets, Factories,
Laboratory, Workshop etc.

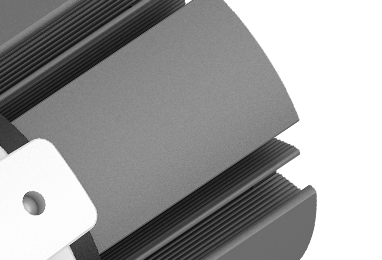

Product advantage
Relevant data
Product parameter
| Product Name | Single CCT SATURN MODULE-Rocket | Sunset DTW SATURN MODULE-Rocket |
| Lumen(lm) | 500lm~1200lm | 250LM~880LM |
| Ra | 98 | 95 |
| R9 | 90 | 88 |
| CCT | 2700K/3000K/4000K | 2000-3000K 2000-2900K 2000-2800K |
| Beam(°) | 15, 38, 60° | 38, 60° |
| Lumen efficacy | 90lm/W | 90lm/W |
| Pon(W) | 10.8 6.48 5.04 |
10.8 6.48 6.3 4.5 |
| LED Input Voltage（VDC） | 36 | 36 18 |
| Input Current (mA) | 300 180 140 |
300 180 350 250 |
| Dimensions(mm) | D50xH65 D50xH53 D50xH25 |
D50xH65 D50xH53 D50xH53 D50xH25 |
