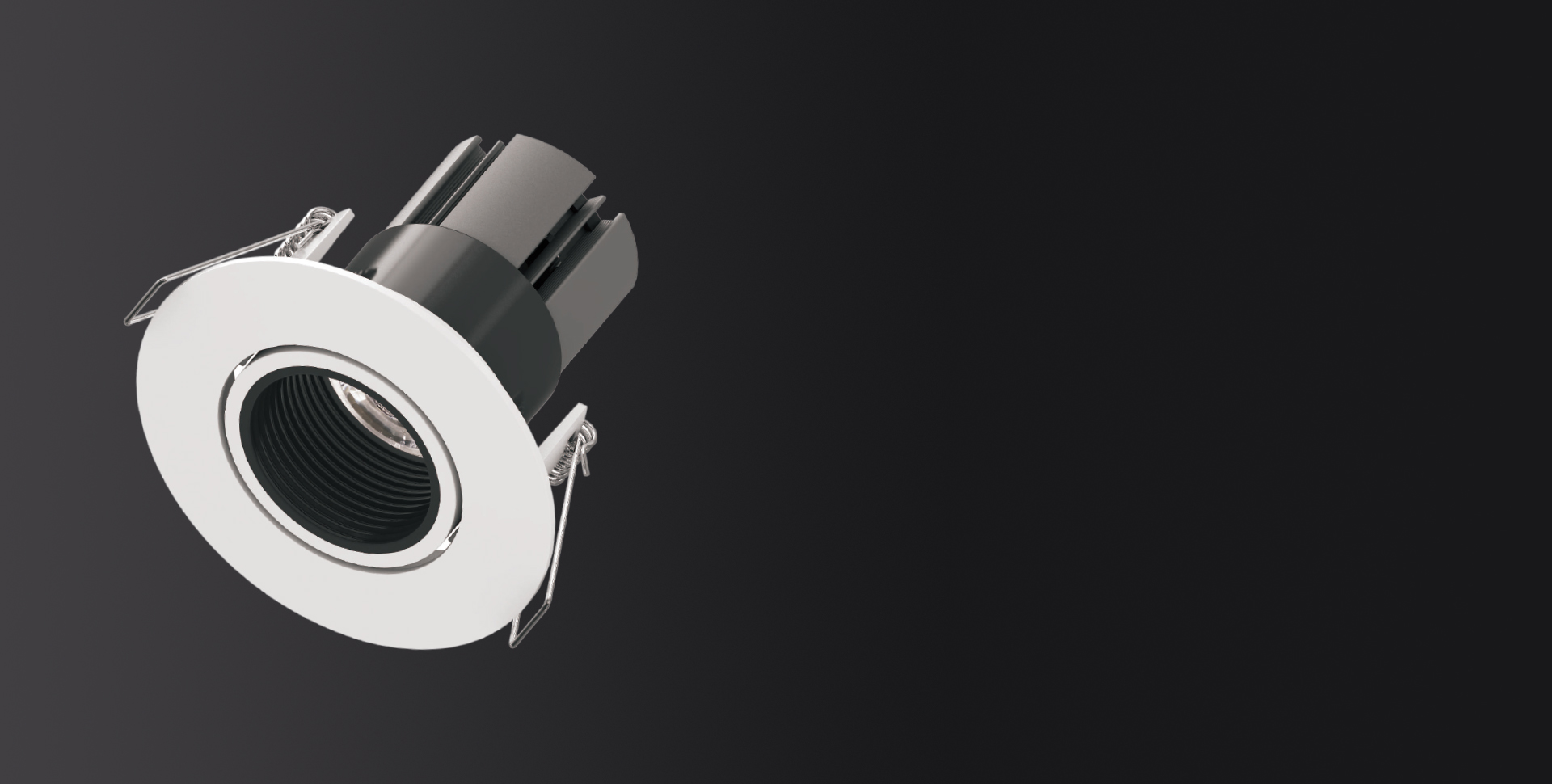

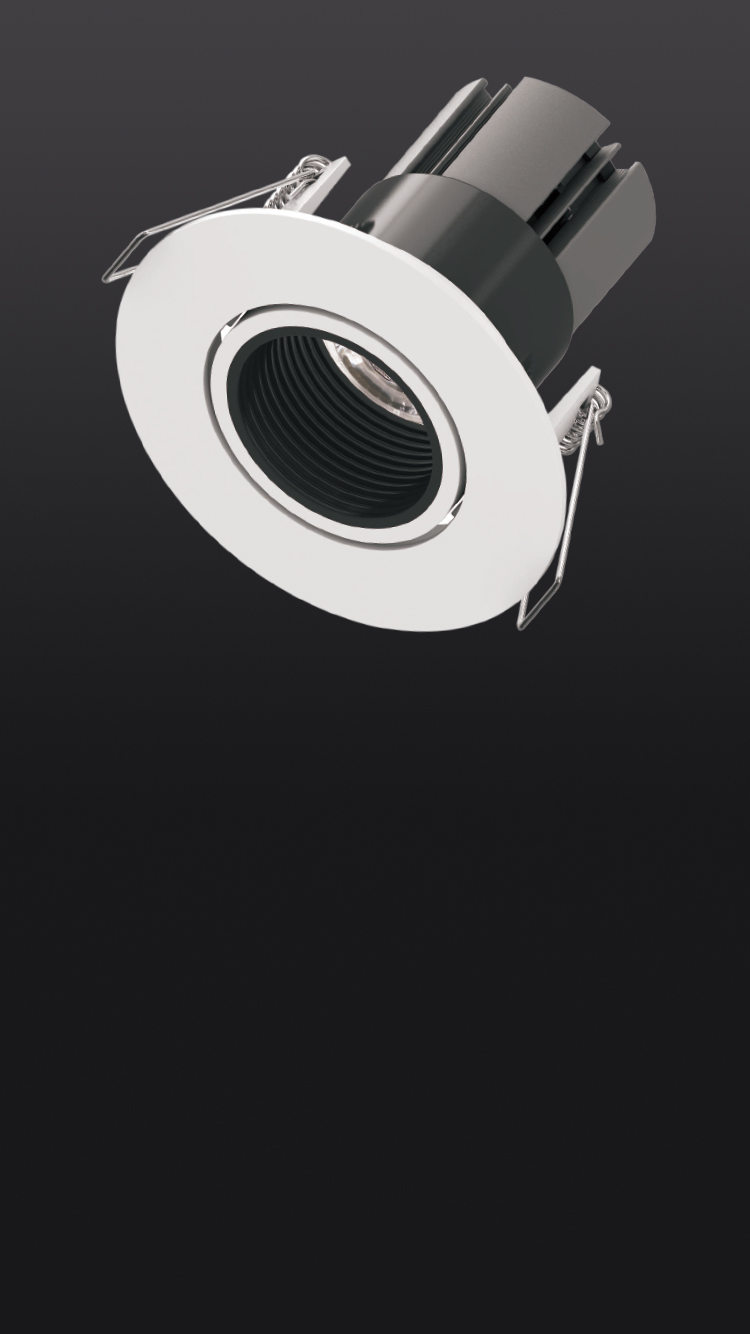

SATURN FOCUS
Note:
Up to 110lm/W; Macadam 4 SDCM
· No risk flicker with Pst LM<0.1%; SVM<0.1%
· This product contains a light source of energy Class D/F
· Replaceable light source and control gear by professional
· WEEE: Do not dispose of this luminarie with your normal household waste. Recycle where facilities exist
Product advantage

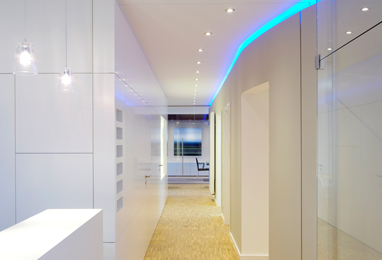

Applications
Ofces, Banks, Education/Schools, Government, Healthcare, Hospitality, Retail, stores, Supermarkets, Factories, Laboratory, Workshop etc
Features & Benefits
1. Modular design
2. Quick installation, loop in and loop out system
3. Flicker Free
4. Interchangeable optics
5. Various external driver options:Non-dim/Traic/DALI-2 Push DIM/1-10V
Accessory

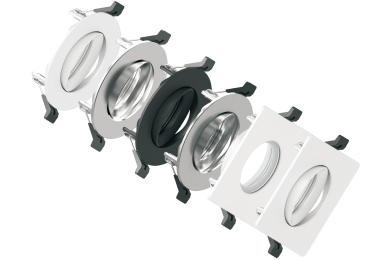

Normal frames:
IP20(tilt) / IP65 option(Fix);
White, black, siliver, bruch nickel finish colo

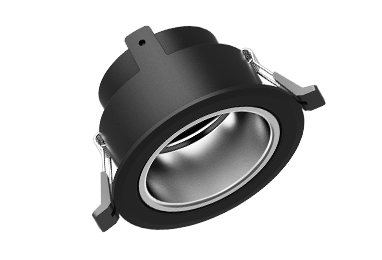

Deep frames:
IP20(tilt) in white finish color, and has

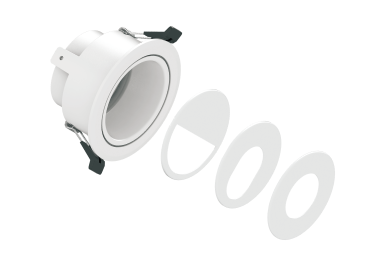

open reflector, wallwash, slot aperture, and pin hole option
Honeycomb for Rocket Module
Relevant data
Product parameter
| Product Name | Single CCT SATURN FOCUS | Sunset DTW SATURN FOCUS |
| Lumen(lm) | 500lm~1200lm | 250LM~880LM |
| Ra | 98 | 95 |
| R9 | 90 | 88 |
| CCT | 2700K/3000K/4000K | 2000-3000K 2000-2900K 2000-2800K |
| Beam(°) | 15, 38, 60° | 38, 60° |
| Lumen efficacy | 90lm/W | 90lm/W |
| Pon(W) | 10.8 6.48 5.04 |
10.8 6.48 6.3 4.5 |
| LED Input Voltage（VDC） | 36 | 36 18 |
| Input Current (mA) | 300 180 140 |
300 180 350 250 |
| Cut-out(mm) | 75-85 | 75-85 |
