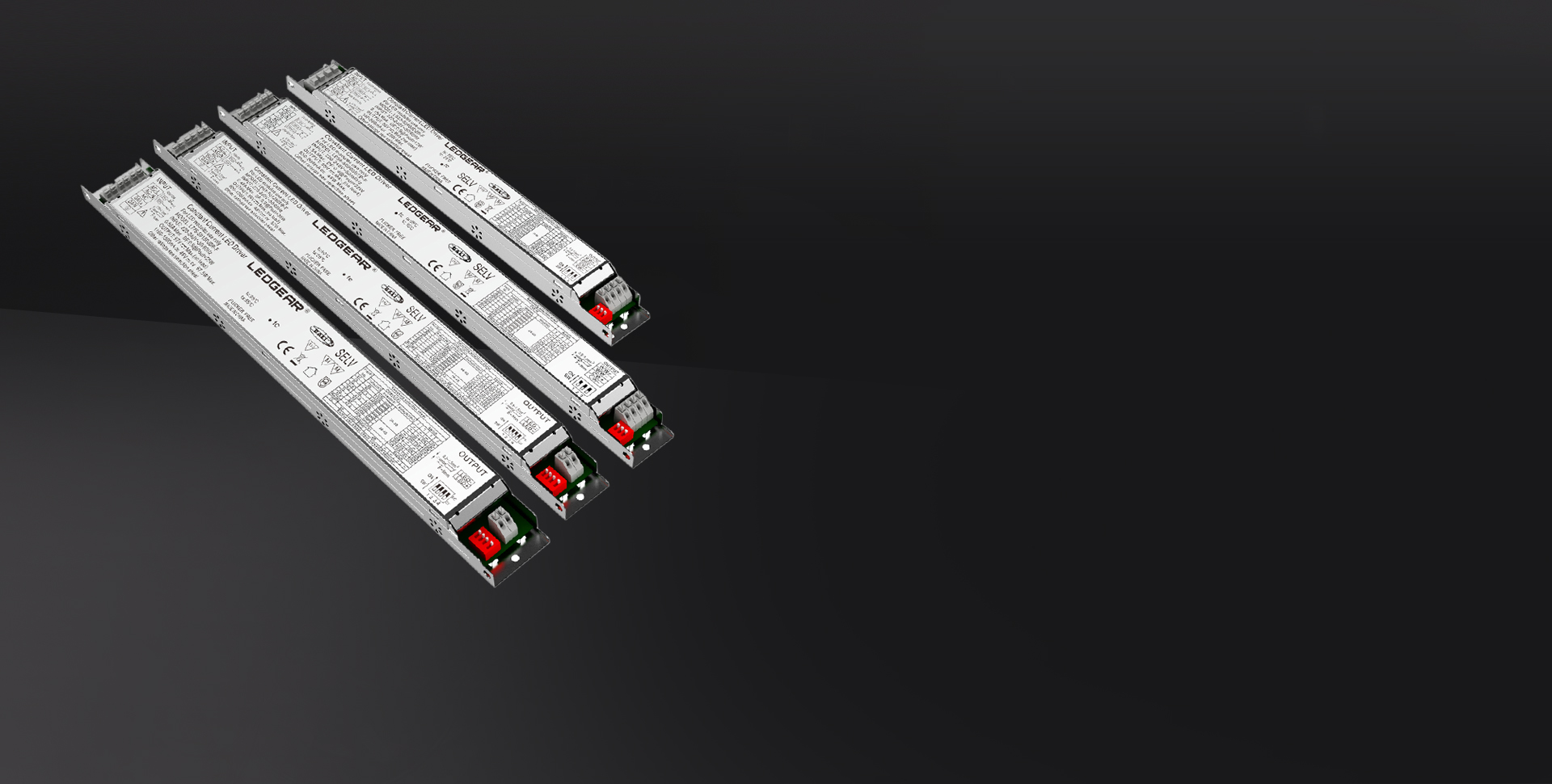

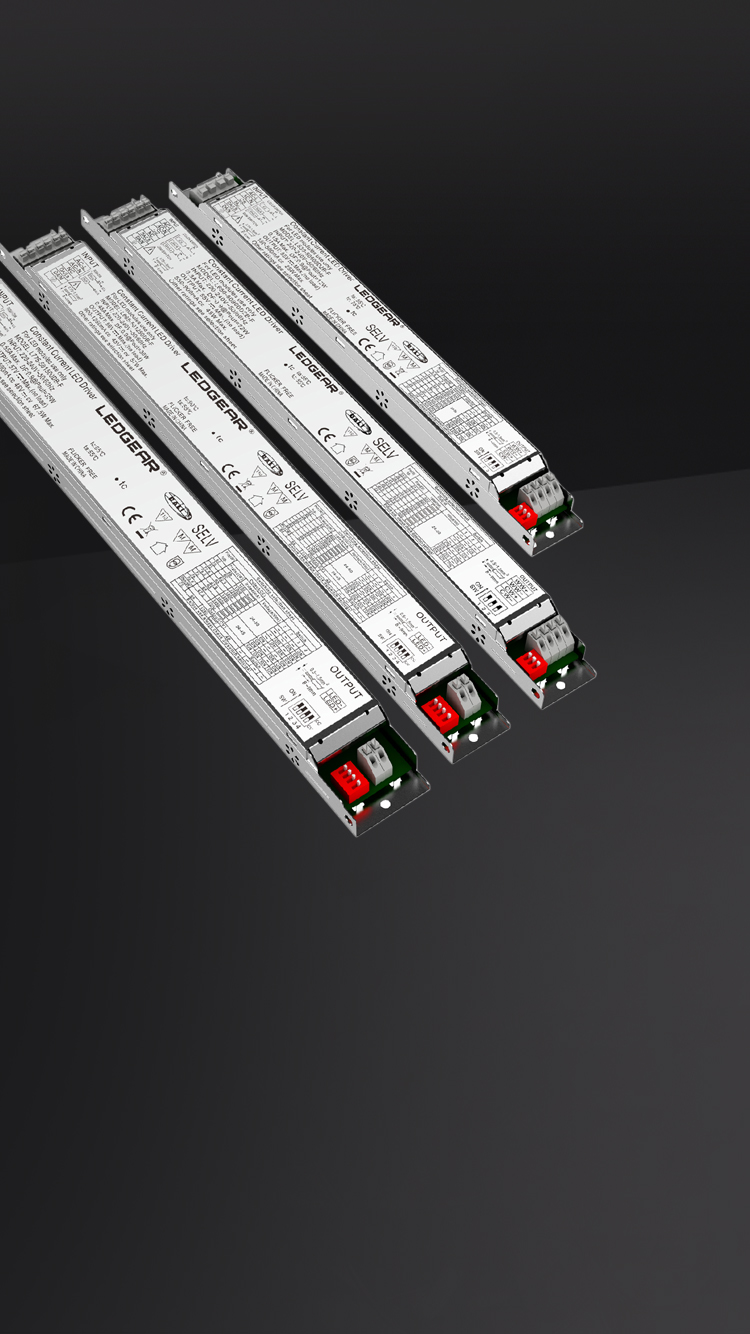

DALI 2 Device Type 8 Collection
LEDGEAR® isolated DALI-2 DT8 and Push-DIM 2in1 linear drivers
For Tunable White as well as for 2-channel use (e.g. warm white/cool white lighting)
Product advantages
Relevant data
Product parameter
| Product code | L530-50500D2B-F | L650-50900D2B-F | L665-501250D2B-F | L775-501500D2B-F |
| Housing | L5 | L6 | L6 | L7 |
| Output power(W) | 25 | 45 | 56 | 68 |
| Dimming range(%) | 1-100 | 1-100 | 1-100 | 1-100 |
| Output current range(mA) | 100-850 | 100-500 | 150-600 | 250-700 |
| Output voltage range(Vdc) | 150-500 | 550-900 | 900-1250 | 1150-1500 |
| Output levels | 16 | 16 | 16 | 16 |
| Pst | <0.8 | <0.8 | <0.8 | <0.8 |
| SVM | <0.3 | <0.3 | <0.3 | <0.3 |
| Flicker | <3% | <3% | <3% | <3% |
| Dimension(mm) | 285 x 30 x 21 | 355 x 30 x 21 | 355 x 30 x 21 | 355 x 36.5 x 23 |
