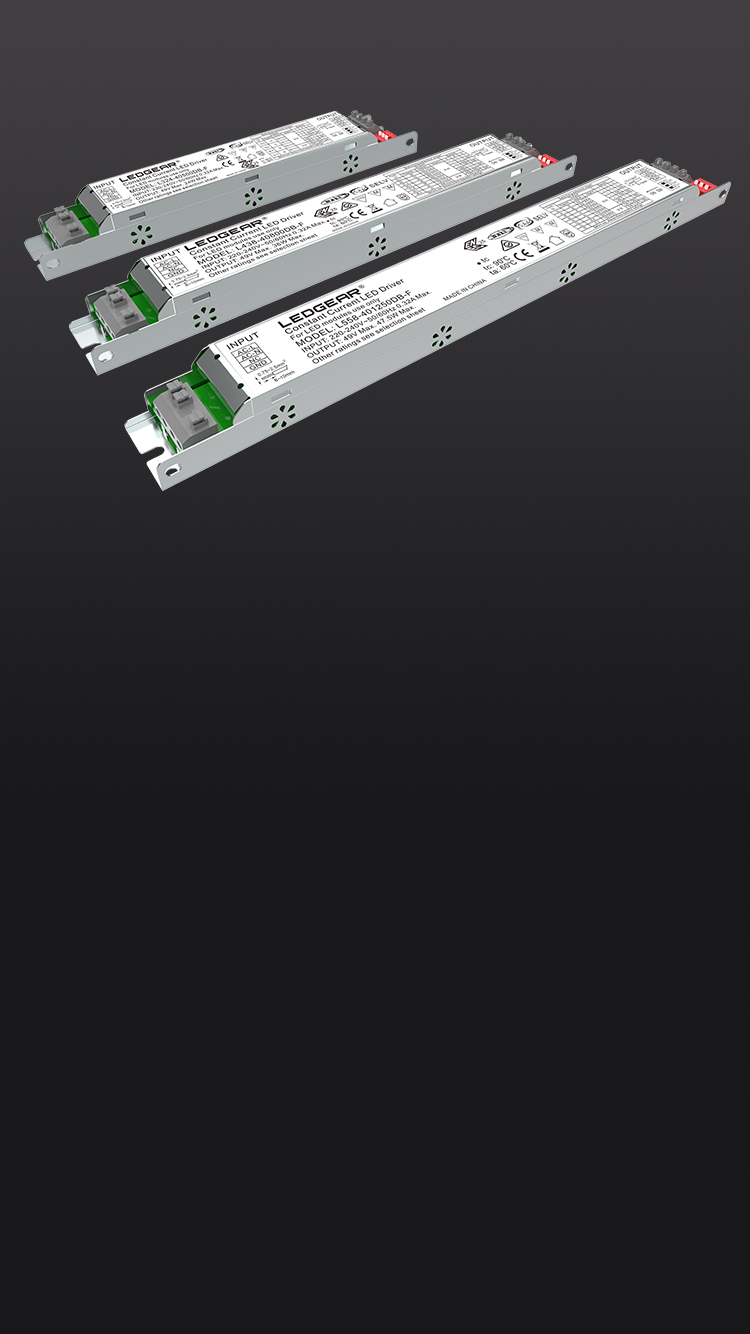

DALI 2 Non-isolated collection
The LEDGEAR®

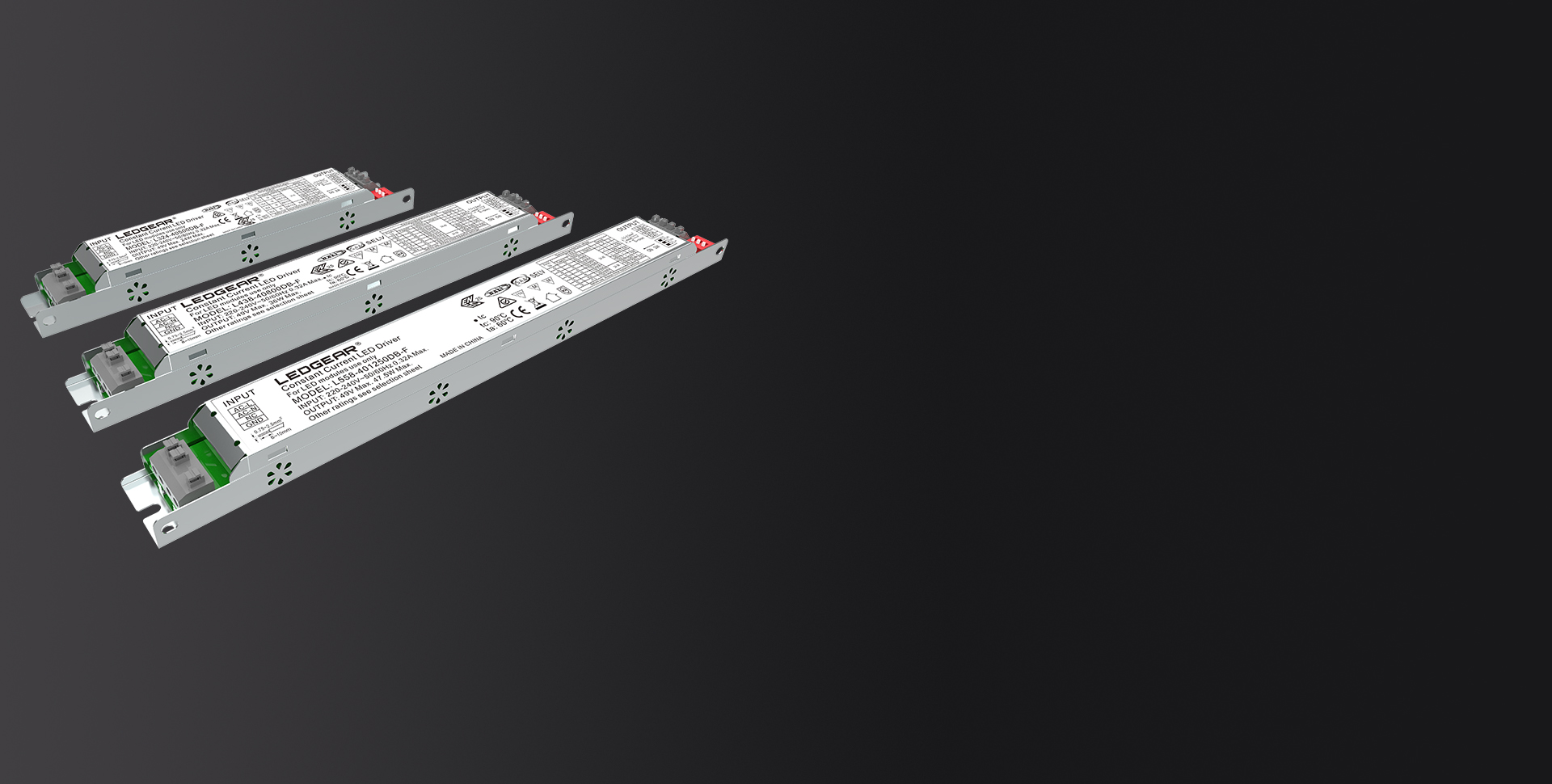

Non-SELV Constant Current LED Drivers: 50W to 150W options.
Product advantages
Customizable output current for inventory efficiency
Energy savings(standby<0.5W)
Flicker free,< 3% flicker percentage
Sustainable packaging without plastic
Relevant data
Product parameter
| Product code | L440-50850DB-F | L550-200500DB-F | L575-250600DB-F | L6100-300700DB-F | L8150-300800DB-F |
| Housing | L4 | L5 | L5 | L6 | L8 |
| Output power(W) | 35 | 50 | 75 | 100 | 150 |
| Dimming range(%) | 1-100 | 1-100 | 1-100 | 1-100 | 1-100 |
| Output current range(mA) | 100-850 | 100-500 | 150-600 | 250-700 | 350-800 |
| Output voltage range(Vdc) | 20-50 | 50-200 | 50-250 | 80-300 | 80-300 |
| Output levels | 16 | 16 | 16 | 16 | 16 |
| Pst | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 |
| SVM | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 |
| Flicker | <3% | <3% | <3% | <3% | <3% |
| Dimension(mm) | 245x30x21 | 285x30x21 | 285x30x21 | 355x30x21 | 359x30x28 |
