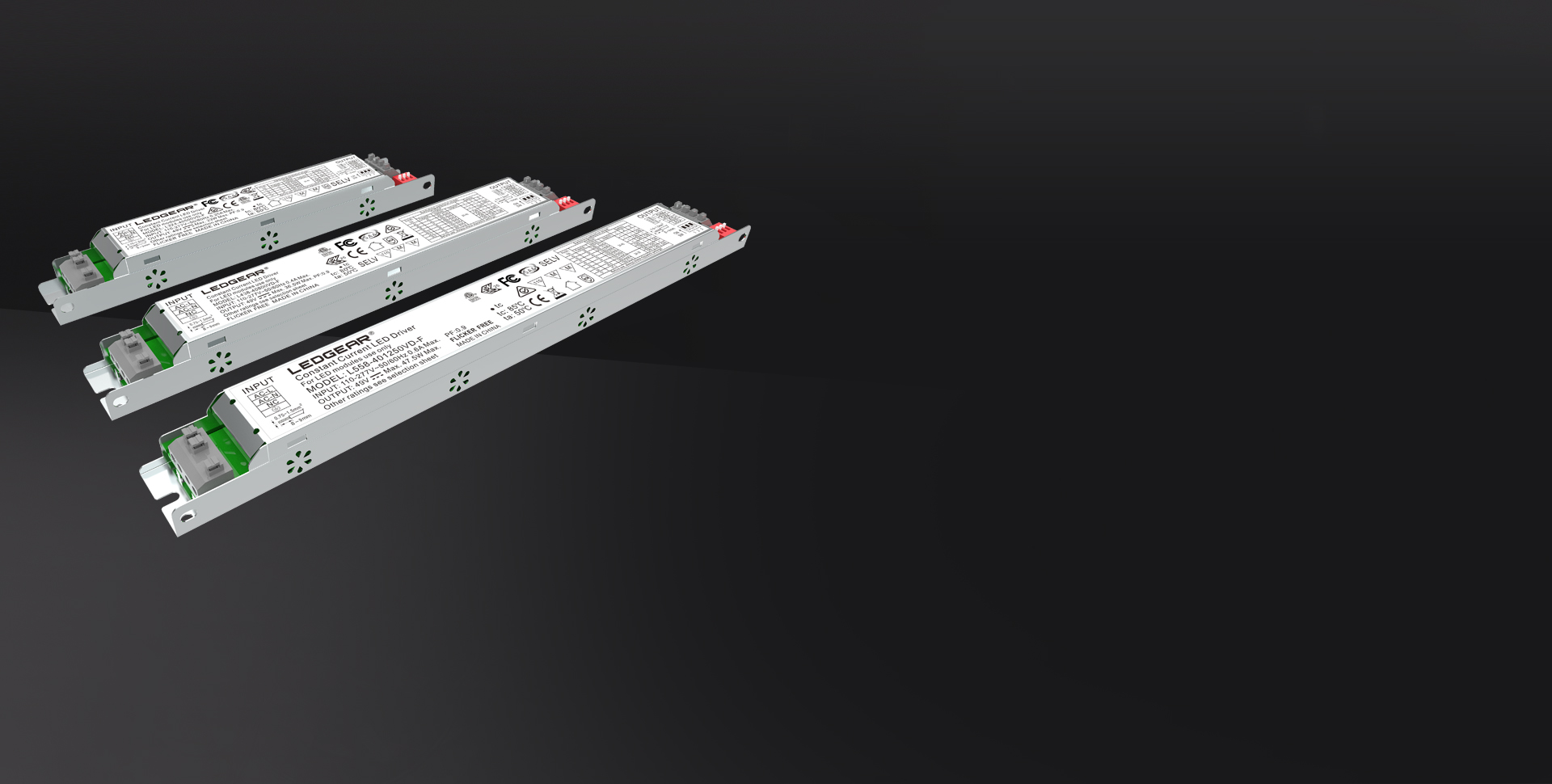

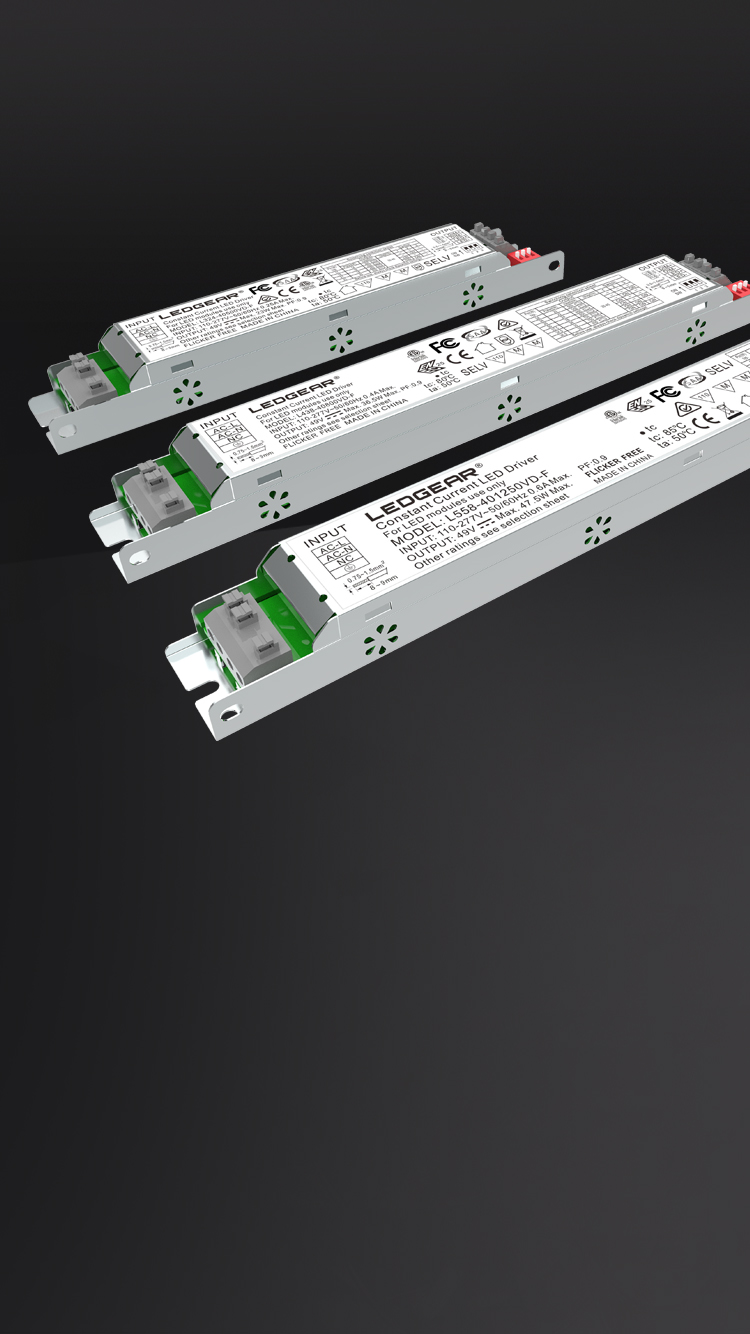

1-10V Linear Driver
The LEDGEAR®
isolated SELV 1-10V, 10V PWM, and Additive
Resistance 3in1 dimming linear drivers excel in linear lighting systems,
emphasizing quality of light, reliability, and adaptability.
Product advantages
Relevant data
Product parameter
| Product code | L324-40500VD-F | L438-40800VD-F | L558-401250VD-F | L430-54500VD-F | L555-54900VD-F | L670-501250VD-F |
| Housing | L3 | L4 | L5 | L4 | L5 | L6 |
| Output power(W) | 20 | 32 | 47.5 | 24.5 | 44 | 62.5 |
| Dimming range | 1-100 | 1-100 | 1-100 | 1-100 | 1-100 | 1-100 |
| Output current range（mA） | 350-500 | 500-800 | 900-1250 | 200-500 | 550-900 | 900-1250 |
| Output voltage range（Vdc） | 20-40 | 20-40 | 20-40 | 30-54 | 30-54 | 32-50 |
| Output levels | 4 | 7 | 8 | 7 | 8 | 8 |
| Pst | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 |
| SVM | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 |
| Flicker | <3% | <3% | <3% | <3% | <3% | <3% |
| Dimension(mm) | 195x30x21 | 245x30x21 | 285x30x21 | 245x30x21 | 285x30x21 | 355x30x21 |
| Input Voltage | AC110-277V | AC110-277V | AC110-277V | AC110-277V | AC110-277V | AC110-277V |
