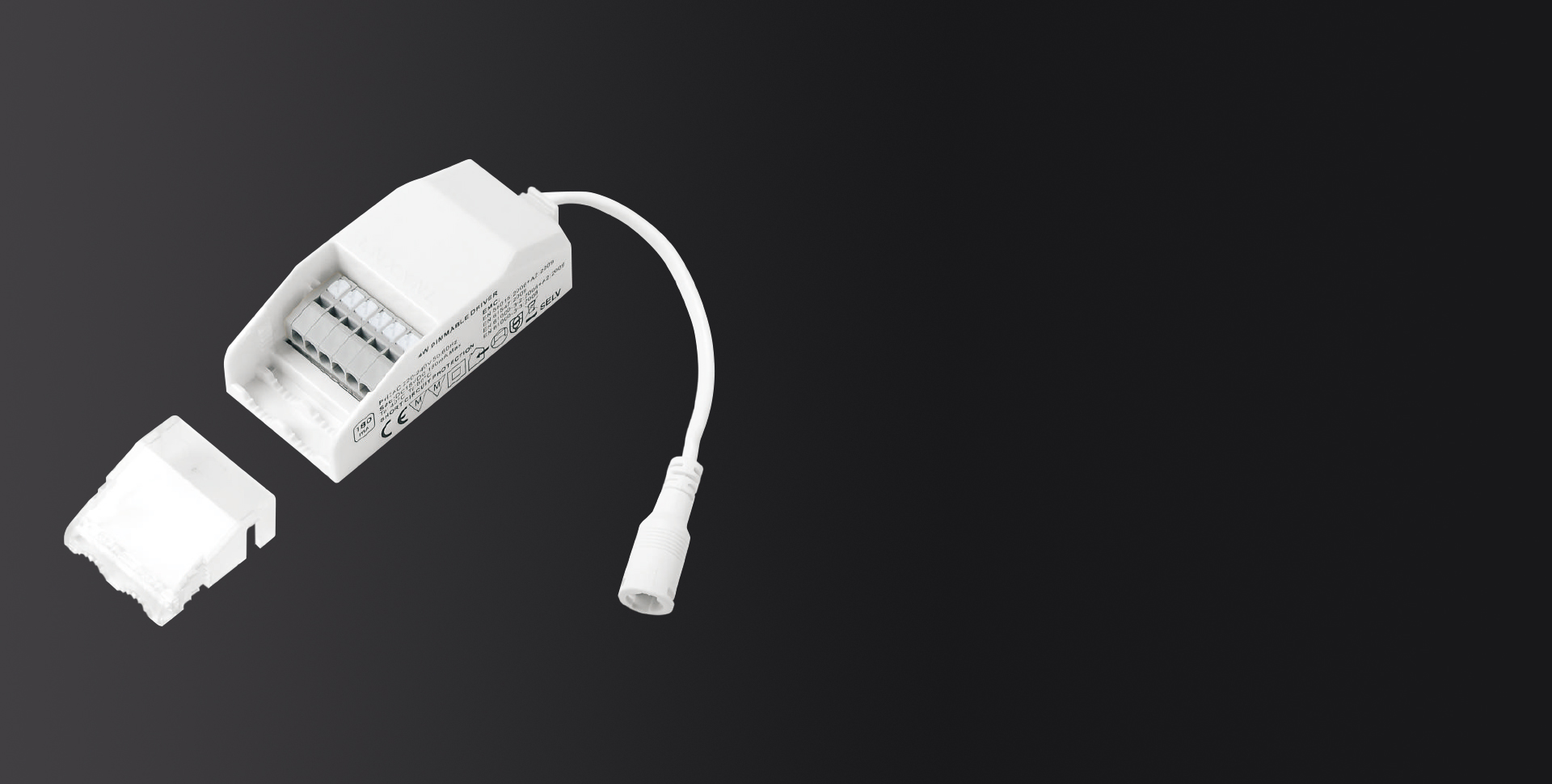

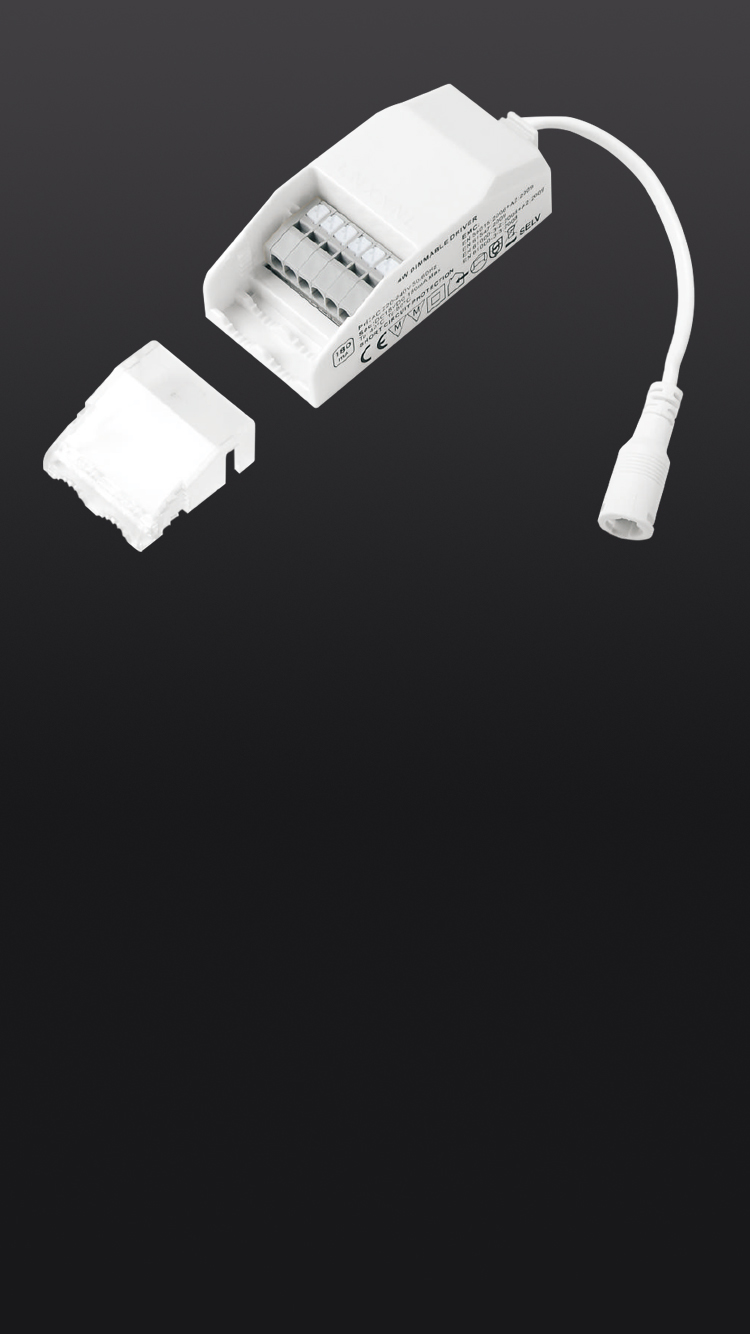

035 mini housing Phase-cut dimmable driver
The LEDGEAR®

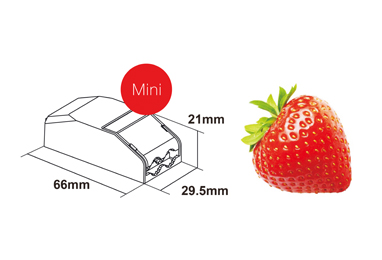

A super compact high quality independent LED driver with through
wiring function
Product advantages
Constant current output
Strain-relief and loop through function forquick installation.

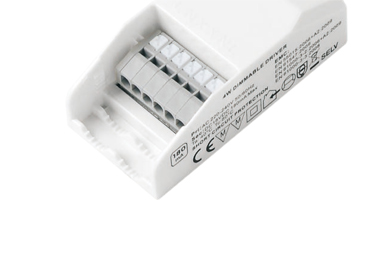

Through wiring with 6-hole push-fit type terminal(L,N,X,X,N,L)

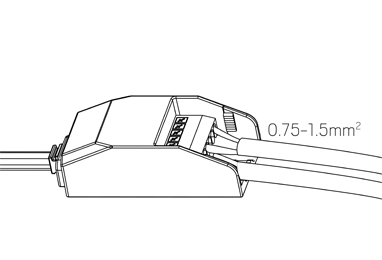

Permissible AC cable 0.75-1.5mm2 wire gauge
Suitable for Min. diameter 38mm cutout hole
Relevant data
Product parameter
| Product code | 4.DR.035.003 |
| Housing | 035 |
| Output power(W) | 3.6 |
| Dimming range(%) | 0.1-100 |
| Output current range(mA) | 180 |
| Output voltage range（Vdc） | 3.6W |
| Pst | <1.0 |
| SVM | <0.4 |
| Displacement Factor | 0.85 |
| Dimension(mm) | 110x50x22 |
