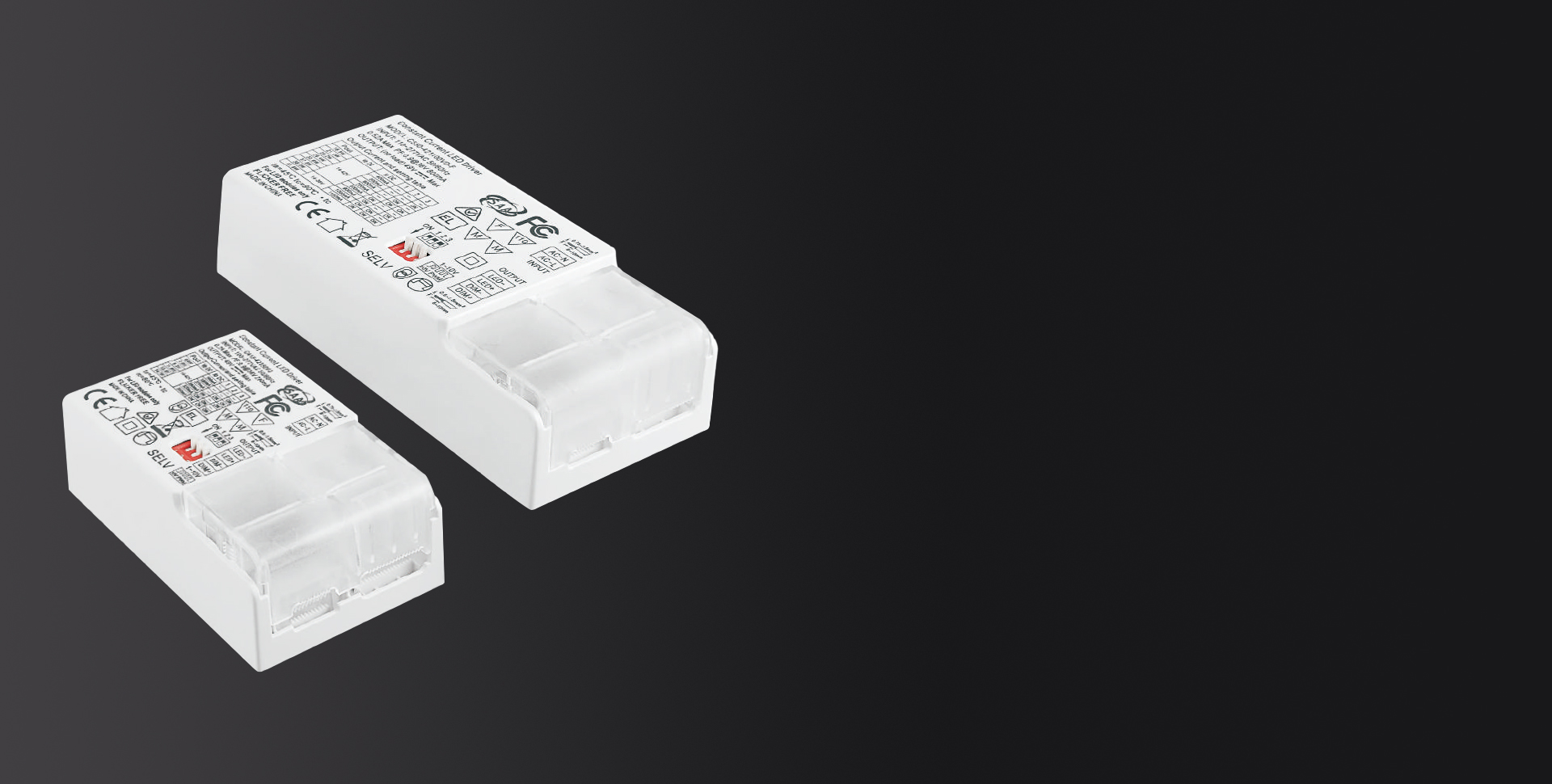

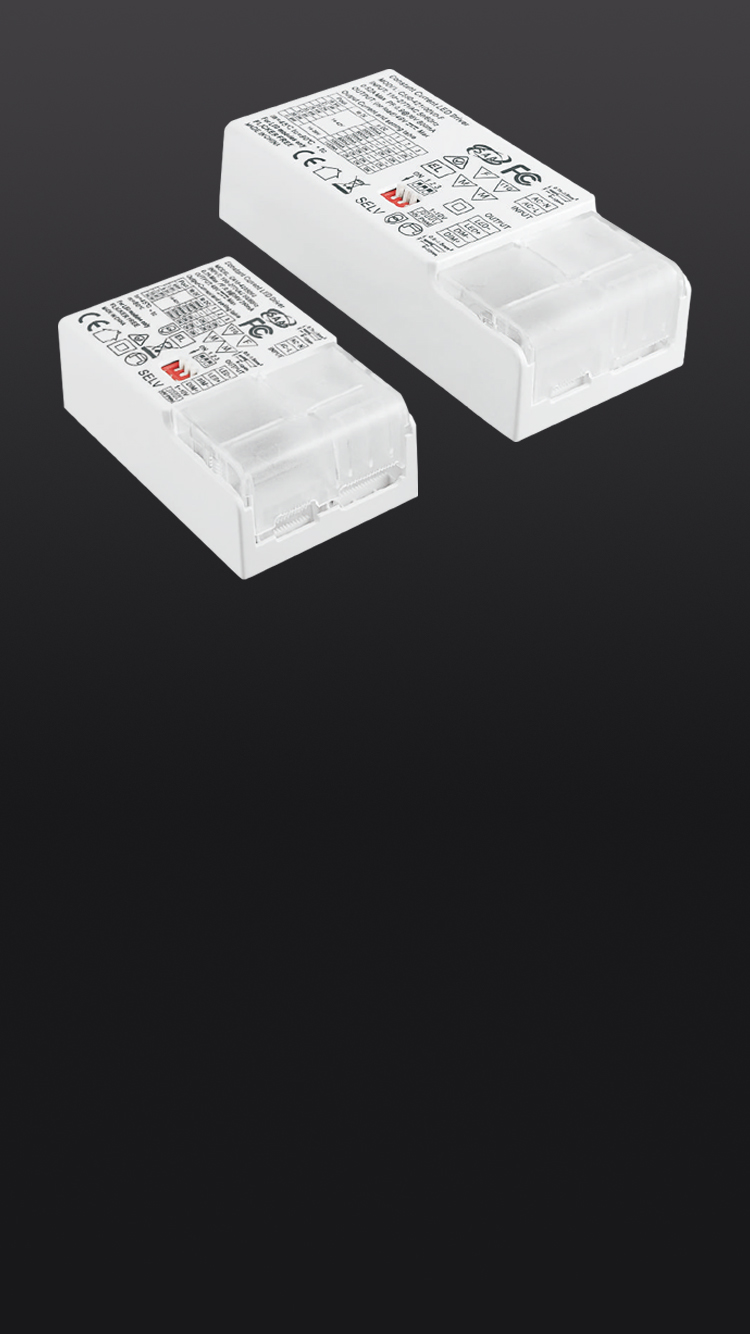

C4, C5 Housing Driver
The LEDGEAR®
High quality independent LED driver for downlights and panel lights
Product advantages

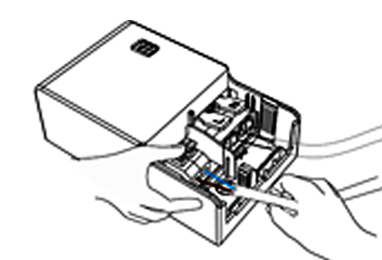

Easy & Quick connection with push-fit terminals and clip-on end cap for
strain relief

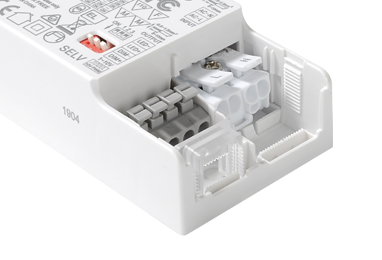

Large wiring space

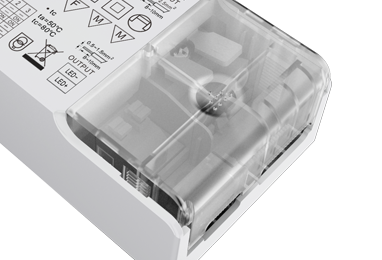

Loose wiring inspection don’t need to open the transparent end cap

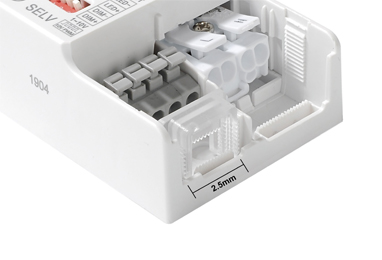

Loop in and loop out function, max.2.5mm2 cross section L, L, N, N
Sustainable packaging without plastic.
Relevant data
Product parameter
| Product code | C412-21500TB-F | C418-21750TB-F | C410-38220TB-F | C415-38350TB-F | C532-40700TB-F | C540-401000TB-F | C418-42350VD-F | C550-421100VD-F | C428-40600B-F | C445-401000B-F |
| Housing | C4 | C4 | C4 | C4 | C5 | C5 | C4 | C5 | C4 | C4 |
| Output power(W) | 9.0 | 14.7 | 8.4 | 13.3 | 28 | 38 | 14.7 | 41.8 | 24 | 38 |
| Dimming range(%) | 5-100 | 5-100 | 5-100 | 5-100 | 5-100 | 5-100 | 10-100 | 10-100 | Non-dim | Non-dim |
| Output current range(mA) | 250-500 | 500-750 | 120-220 | 250-350 | 400-700 | 700-1000 | 160-350 | 400-1100 | 250-600 | 650-1000 |
| Output voltage range（Vdc） | 14-21 | 14-21 | 30-38 | 30-38 | 30-40 | 30-40 | 14-42 | 14-42 | 24-40 | 24-40 |
| Pst | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 |
| SVM | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 |
| Dimension(mm) | 86x52x29.5 | 86x52x29.5 | 86x52x29.5 | 86x52x29.5 | 115x52x29.5 | 115x52x29.5 | 86x52x29.5 | 115x52x29.5 | 86x52x29.5 | 86x52x29.5 |
| Dimming Type | Phase-cut | Phase-cut | Phase-cut | Phase-cut | Phase-cut | Phase-cut | 1-10V | 1-10V | ON/OFF | ON/OFF |
