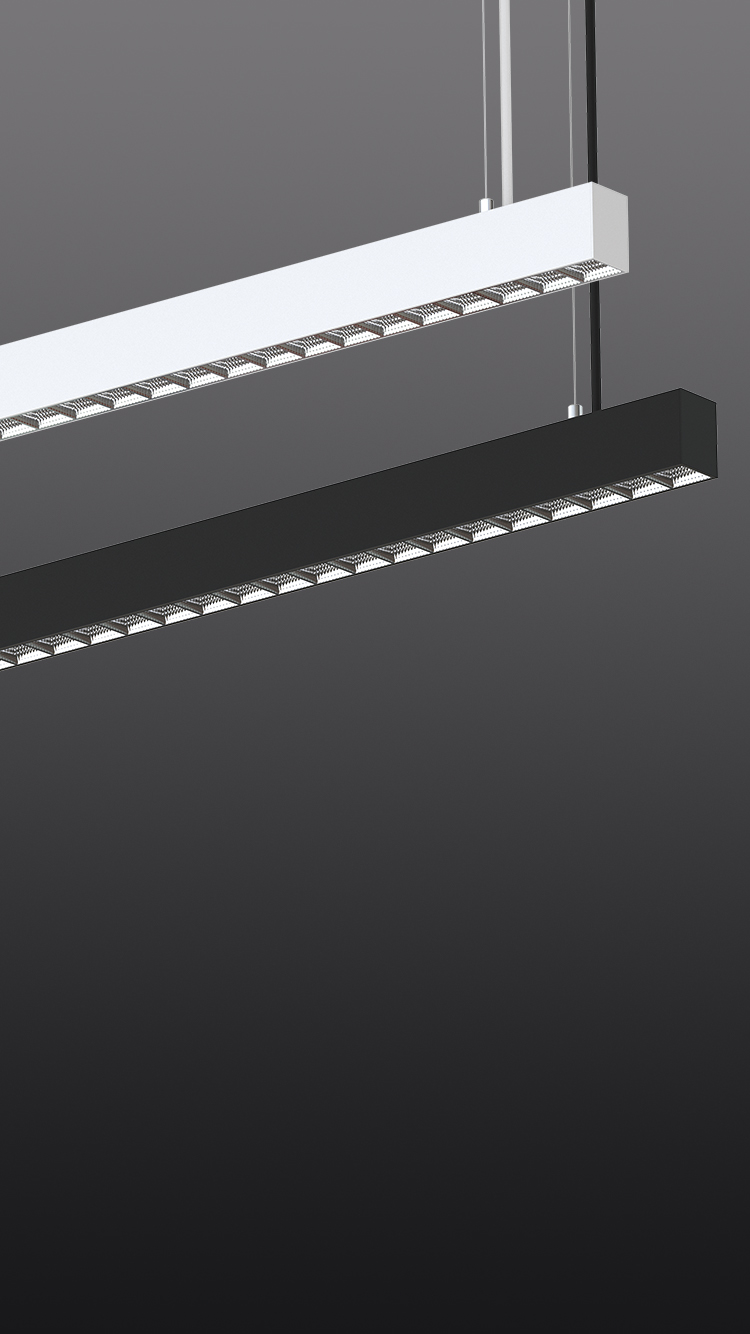

ETL Xline Plus Linear Light

ETL Xline Plus Linear Light

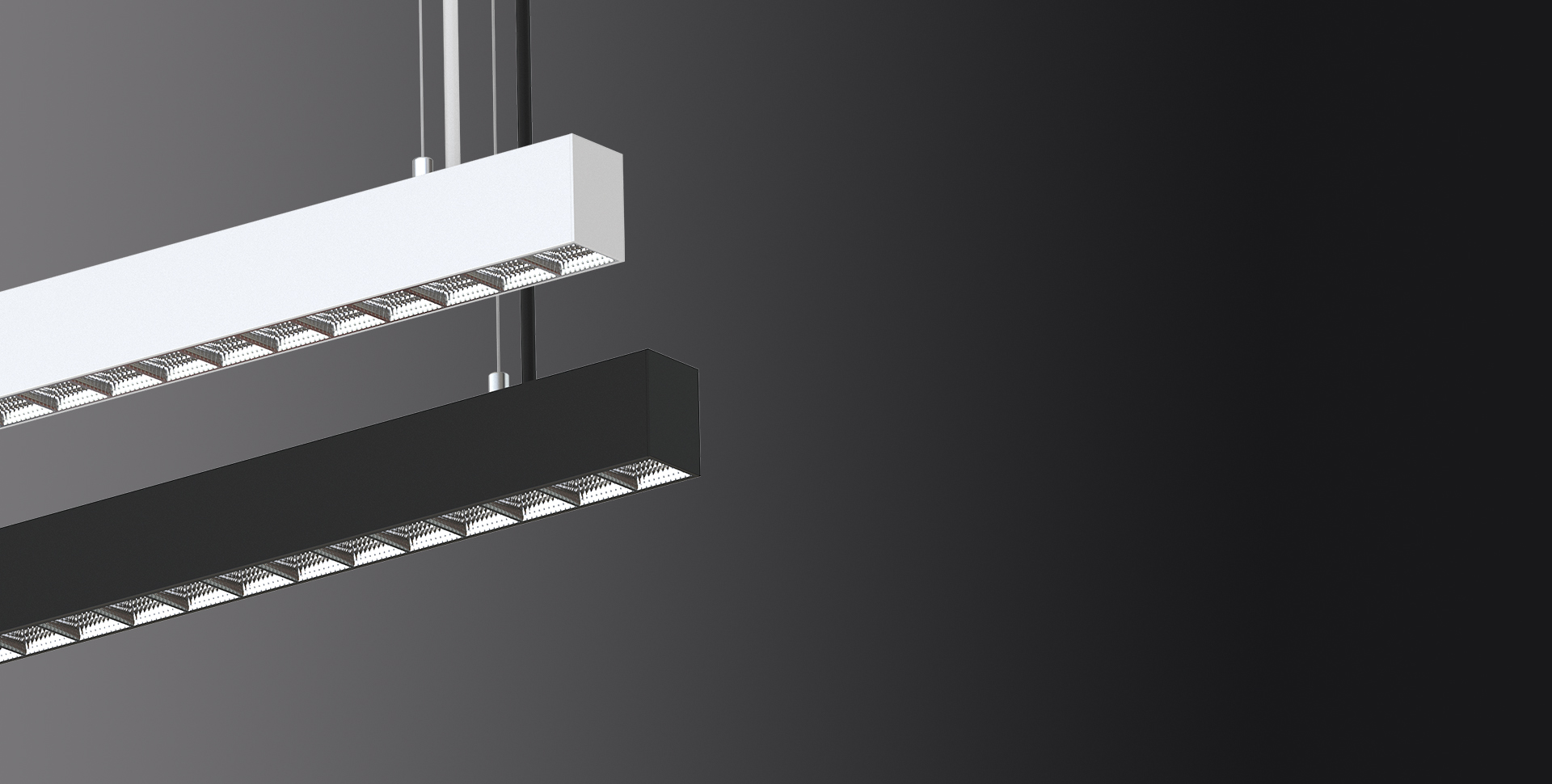

Xline™ plus is aesthetic and minimalist, easier for, pendant installations. It's flexible and seamless continuous connection to build creative and innovative lighting system.
Distinctively rectangular aluminum luminaire housing from extruded aluminum profile; No visible screws; Indirect output reflected from the ceiling provide a softer and ambient illumination.
Xline Plus provides both up/down(Direct/Indrect) light, and it's vaccum aluminum plating faceted louver with lens design minimized the glare. Suitable for VDUs workplace light according to DLC V5.0 Premium Requirements. UGR <19.
Available in 4 ft , 8 ft of length(others on request), with 110-277V and 1-10V dimming control. Equipped with Louver, MicroPrism and Diffuser, shapes the lighting in your space with multiple distribution options of general lighting, asymmetric distribution for shelves and wall washer, bi-symmetric distribution for aisle lighting.

Product Advantage

Seamless Desing

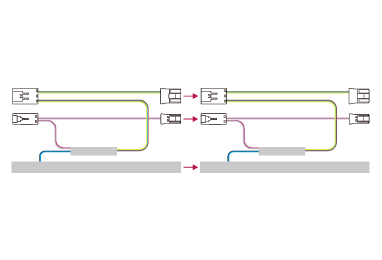

Continues plug & play with looping

Optics

General, Aisle, Wall-washer, and Shelf lighting

Professional Maintenance

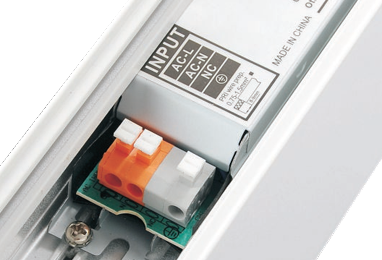

Replaceable light source & control gear

Versatile Lighting

Direct or combined indirect

Relevant Data

Product Parameter

Length 4FT 4FT 8FT 8FT
Power 28W 45W 45W 90W
Lumens 3000LM 5000LM 5000LM 10,000LM
CCT 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K 3000K, 4000K, 5000K
Up/Down Light % 0% Up + 100% Down
30% Up + 70% Down
0% Up + 100% Down
30% Up + 70% Down
0% Up + 100% Down
30% Up + 70% Down
0% Up + 100% Down
30% Up + 70% Down
Up Light Beam Angle 110° 110° 110° 110°
Down Light Beam Angle 110°(Opal)
80°(MicroPrism)
85°X85°(Louver)
30°X70°(Louver)
55°X90°(Opal+Lover)
110°(Opal)
80°(MicroPrism)
85°X85°(Louver)
30°X70°(Louver)
55°X90°(Opal+Lover)
110°(Opal)
80°(MicroPrism)
85°X85°(Louver)
30°X70°(Louver)
55°X90°(Opal+Lover)
110°(Opal)
80°(MicroPrism)
85°X85°(Louver)
30°X70°(Louver)
55°X90°(Opal+Lover)
Continuous Continuous, Indepandant Continuous, Independent Continuous, Independent Continuous, Independent
Dimming 1-10V 1-10V 1-10V 1-10V
Input Voltage 110-277VAC 110-277VAC 110-277VAC 110-277VAC
Finished Black, White Black, White Black, White Black, White
Warranty 5-Years 5-Years 5-Years 5-Years
Certificate ETL, FC ETL, FC ETL, FC ETL, FC
