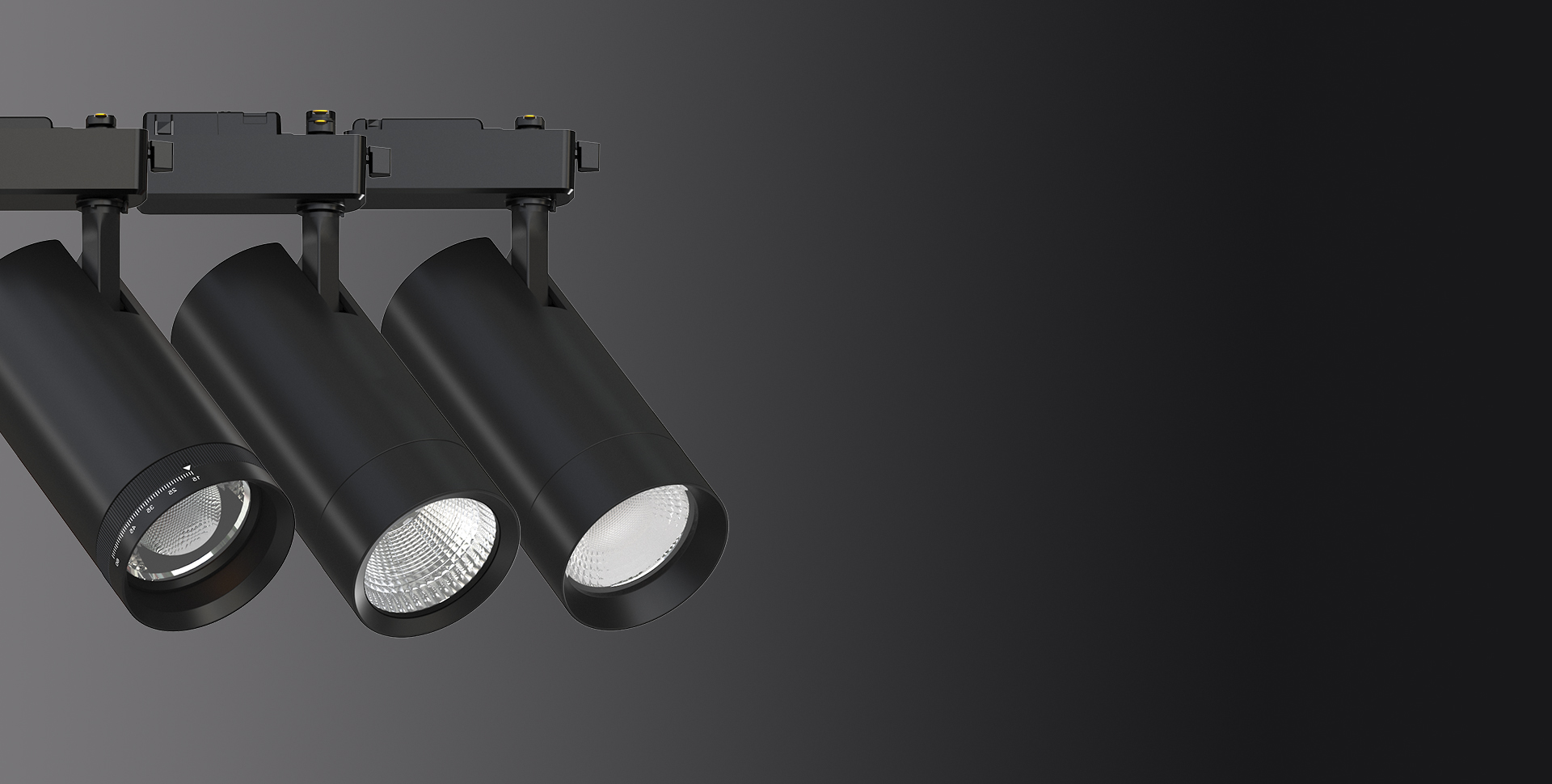

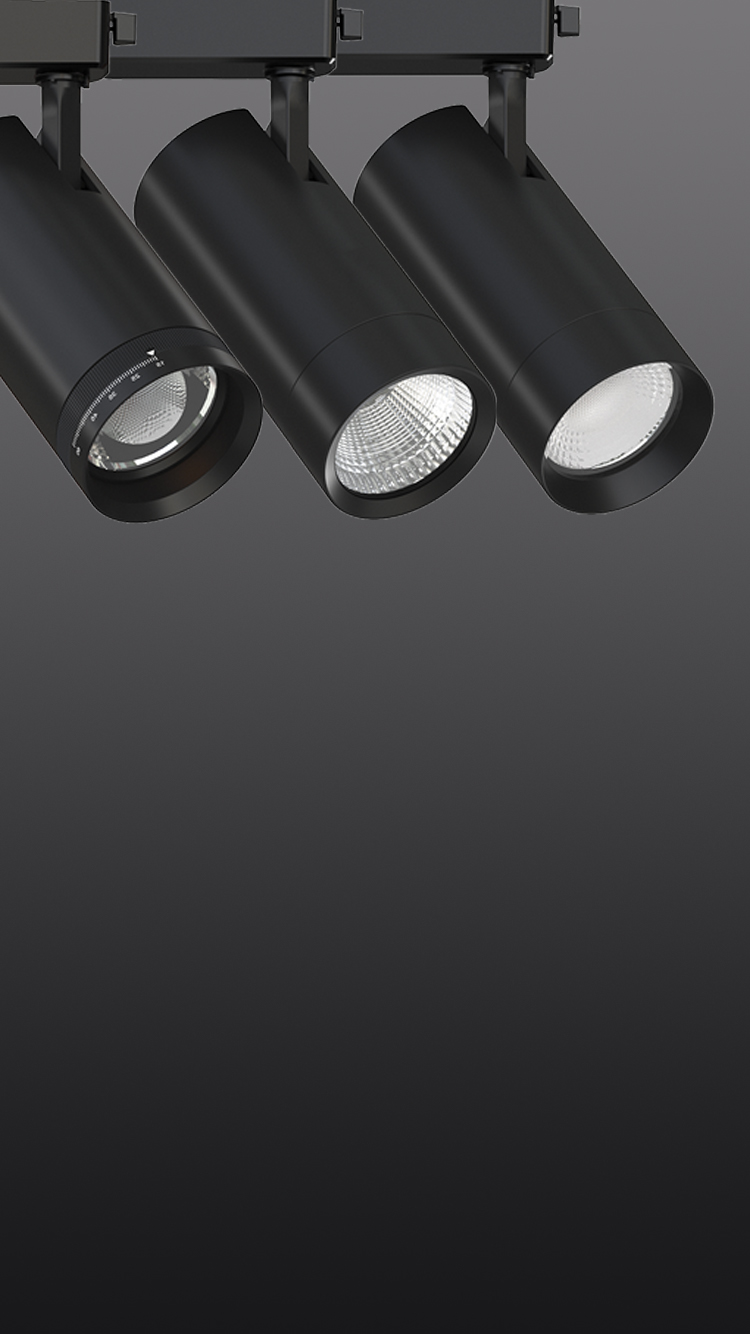

Matter Track Head-With External Driver
Matter is circular design product, a future-proof concept, light engine, driver, LED module, optics and accessories, can be combined together freely, 100% modular, fully recycled and fully sustainable.

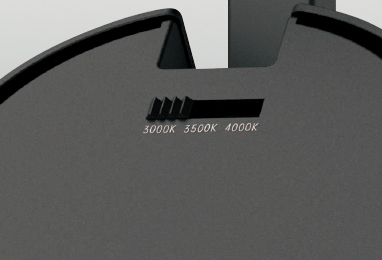

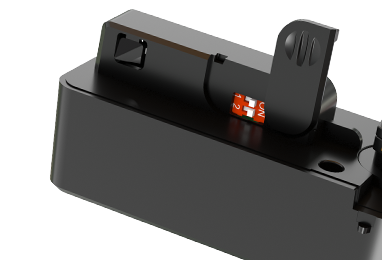

Equipped with multi CCT and multi power technology, it can be 40W/35W/30W switchable at D90mm, 35W/30W/25W switchable at D80mm, 25W/20W/15W switchable at D70mm and 15W/10W/5W switchable at D60mm. It can be Ra90 3000K-3500K-4000K 3CCT switchable, and you can also choose single CCT to get higher efficency. This reduce your SKUs and inventory, and shorter time to project.
Matter can satisfy diversified customer's requirement, 15°, 24°, 36°, and 60° lens & reflector, 20° to 60° zoomable lens, honeycomb, snoot and LED module can be changed freely. H-Type and J-Type adaptor can be changed easily by screw driver, makes it easy to be installed and suitable for different application.
Matter is a high performance portfolio dedicated to architectural lighting segment, provides super high quality of light with flicker free driver and glare free optics. No visible screw, sleek and compact cylinder housing and intrack driver design, makes the product looks very charming.
Product advantage
Relevant data
Product parameter
| Product Name | D60mm Matter Track Head | D70mm Matter Track Head | D80mm Matter Track Head | D90mm Matter Track Head |
| Wattage | 15W/10W/5W switchable | 25W/20W/15W switchable | 35W/30W/25W switchable | 40W/35W/30W switchable |
| Max. Lumen (at 3000K) | Single CCT: 1500LM 3CCT: 1300LM |
Single CCT: 2500LM 3CCT: 2200LM |
Single CCT: 3400LM 3CCT: 2000LM |
Single CCT: 3850LM 3CCT: 3400LM |
| Adapter | H-Type track J-type track |
H-Type track J-type track |
H-Type track J-type track |
H-Type track J-type track |
| Beam Angle | 15°，24°，36°，60° Zoomable from 20° to 60° |
15°，24°，36°，60° Zoomable from 20° to 60° |
15°，24°，36°，60° Zoomable from 20° to 60° |
15°，24°，36°，60° Zoomable from 20° to 60° |
| Color | White，Black | White，Black | White，Black | White，Black |
| CCT | 927, 930, 935, 940 930-935-940 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
| Dimension | 2 23/64" x4 17/32" x5 3/64 | 2 3/4" x 5 5/16" x 6 7/64" | 3 5/32" x 6 7/64" x6 1/2" | 3 35/64" x6 1/2" x6 57/64" |
| Horizontal Rotation | 360° | 360° | 360° | 360° |
| Vertical Adjustable | 90° | 90° | 90° | 90° |
| Warranty | 5-Years | 5-Years | 5-Years | 5-Years |
| Certificate | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC |
