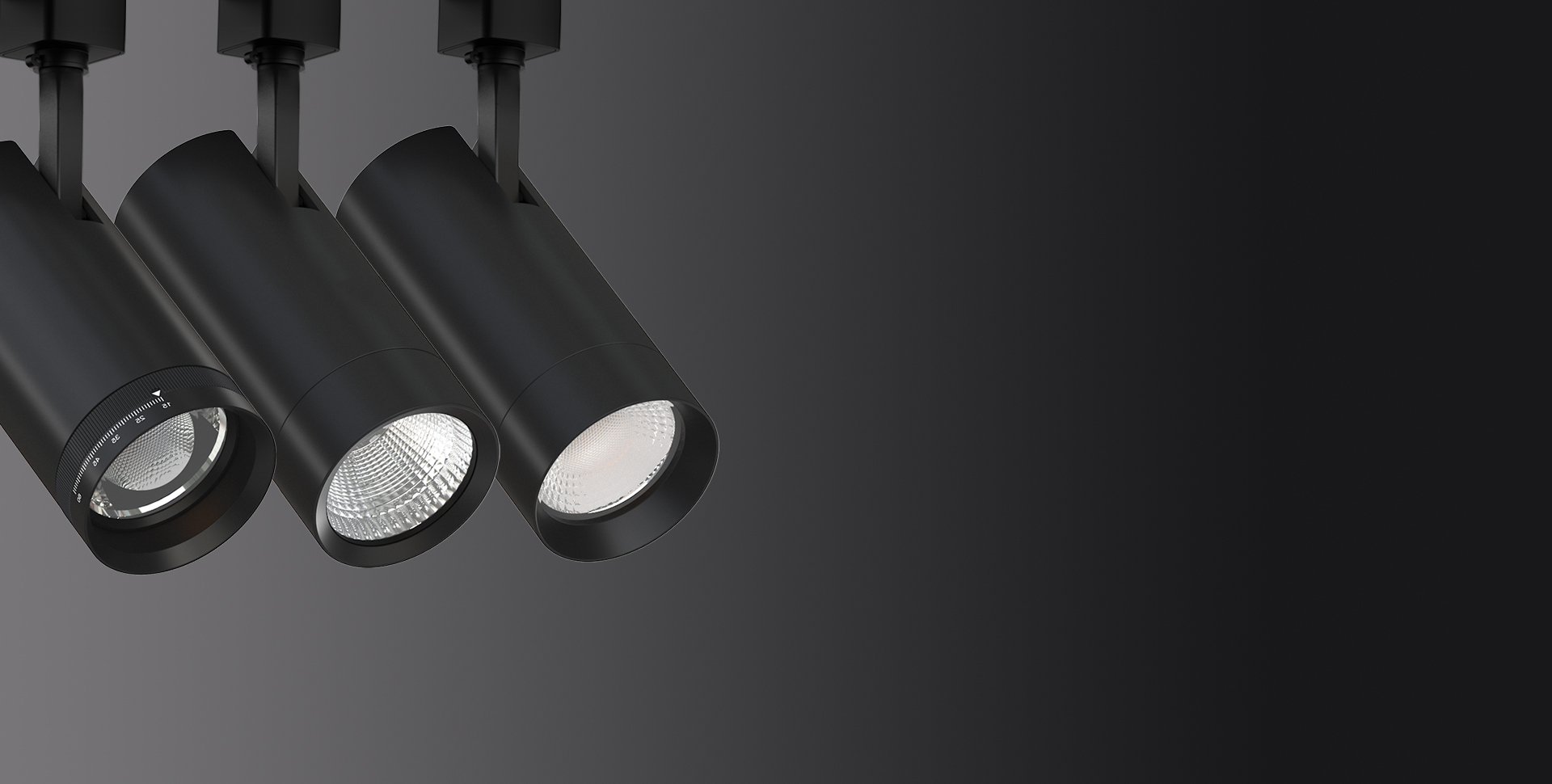

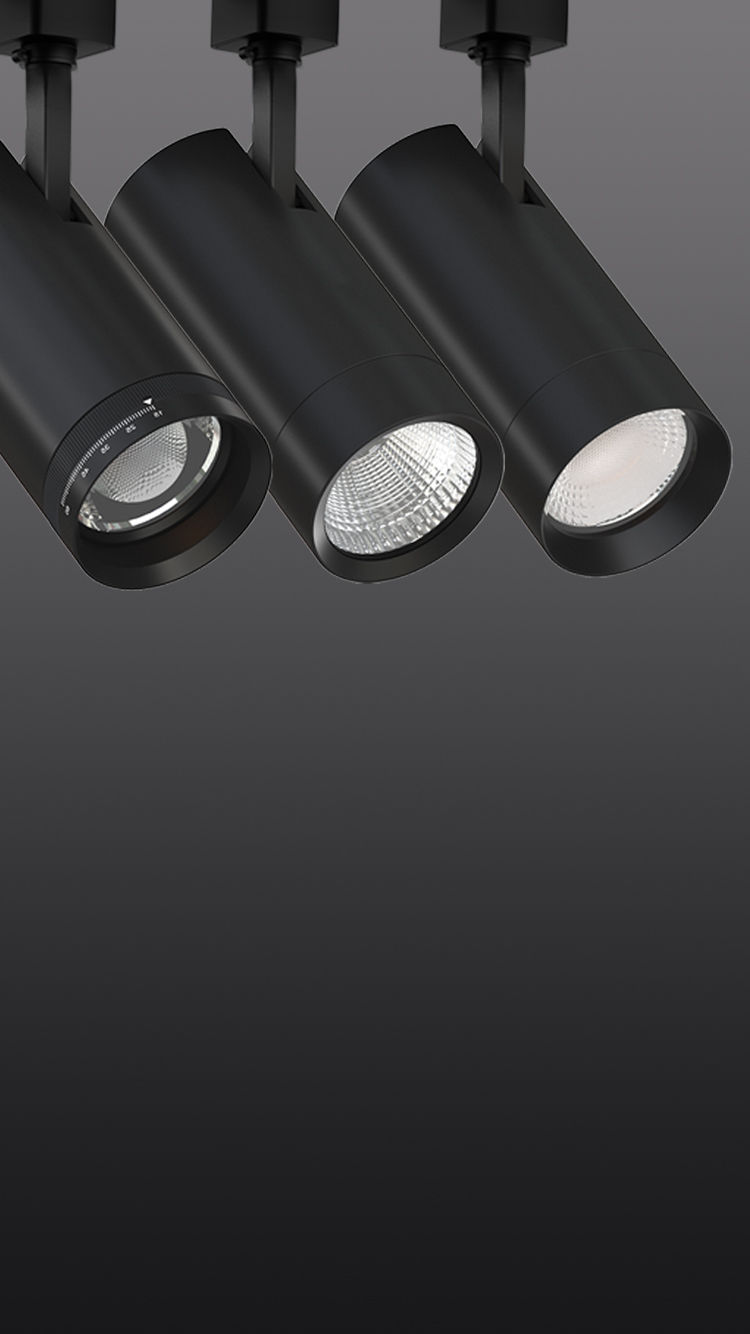

Matter Track Head-With Built-in Driver

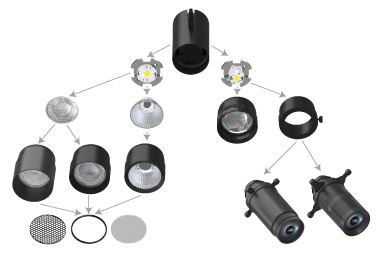

Matter is circular design product, a future-proof concept, light engine, driver, LED module, optics and accessories, can be combined together freely, 100% modular, fully recycled and fully sustainable.

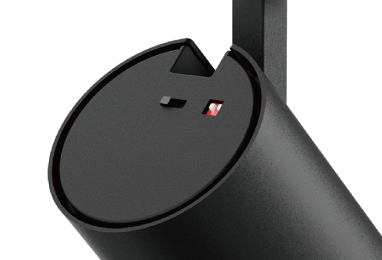

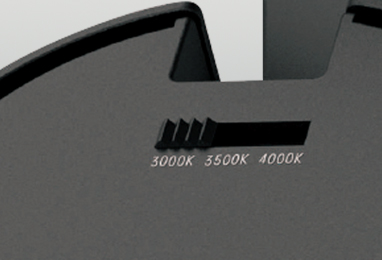

Equipped with multi CCT and multi power technology, it can be 35W/30W/25W switchable at D90mm, 25W/20W/15W switchable at D80mm,15W/10W/5W switchable at D70mm and 10W/5W switchable at D60mm. It can be 3000K-3500K-4000K 3CCT switchable, and you can also choose single CCT to get higher efficency. This reduce your SKUs and inventory, and shorter time to project.

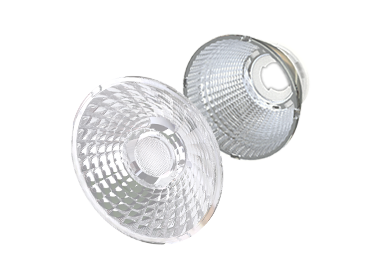

Matter can satisfy diversified customer's requirement, 15°, 24°, 36°, and 60° lens & reflector, 20° to 60° zoomable lens, honeycomb, snoot and LED module can be changed freely. H-Type and J-Type adaptor can be changed easily by screw driver, makes it easy to be installed and suitable for different application.
Matter is a high performance portfolio dedicated to architectural lighting segment, provides super high quality of light with flicker free driver and glare free optics. No visible screw, sleek and compact cylinder housing and intrack driver design, makes the product looks very charming.
Product advantage
Relevant data
Product parameter
| Product Name | D40mm Matter Track Head | D60mm Matter Track Head | D70mm Matter Track Head | D80mm Matter Track Head | D90mm Matter Track Head |
| Wattage | 5W | 10W/5W switchable | 15W/10W/5W switchable | 25W/20W/15W switchable | 35W/30W/25W switchable |
| Max. Lumen (at 3000K) | Single CCT: 520LM 2CCT: 400LM |
Single CCT: 1000LM 3CCT: 900LM |
Single CCT: 1600LM 3CCT: 1300LM |
Single CCT: 2600LM 3CCT: 2200LM |
Single CCT: 3500LM 3CCT: 3000LM |
| Adapter | H-Type track J-type track |
H-Type track J-type track |
H-Type track J-type track |
H-Type track J-type track |
H-Type track J-type track |
| Beam Angle | 15°，24°，36°，60° | 15°，24°，36°，60° Zoomable from 20° to 60° |
15°，24°，36°，60° Zoomable from 20° to 60° |
15°，24°，36°，60° Zoomable from 20° to 60° |
15°，24°，36°，60° Zoomable from 20° to 60° |
| Color | White，Black | White，Black | White，Black | White，Black | White，Black |
| CCT | 927, 930, 935, 940 927-930 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
927, 930, 935, 940 930-935-940 Switchable |
| Dimension | 1 37/64" x4 17/32" x4 7/32" | 2 23/64" x4 17/32" x4 23/32" | 2 3/4" x 5 5/16" x 5 53/64" | 3 5/32" x 6 7/64" x6 7/32" | 3 35/64" x6 1/2" x6 39/64" |
| Dimming | Triac Dimmable | Triac Dimmable | Triac Dimmable | Triac Dimmable | Triac Dimmable |
| Horizontal Rotation | 360° | 360° | 360° | 360° | 360° |
| Vertical Adjustable | 90° | 90° | 90° | 90° | 90° |
| Certificate | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC |
| Warranty | 5-Years | 5-Years | 5-Years | 5-Years | 5-Years |
