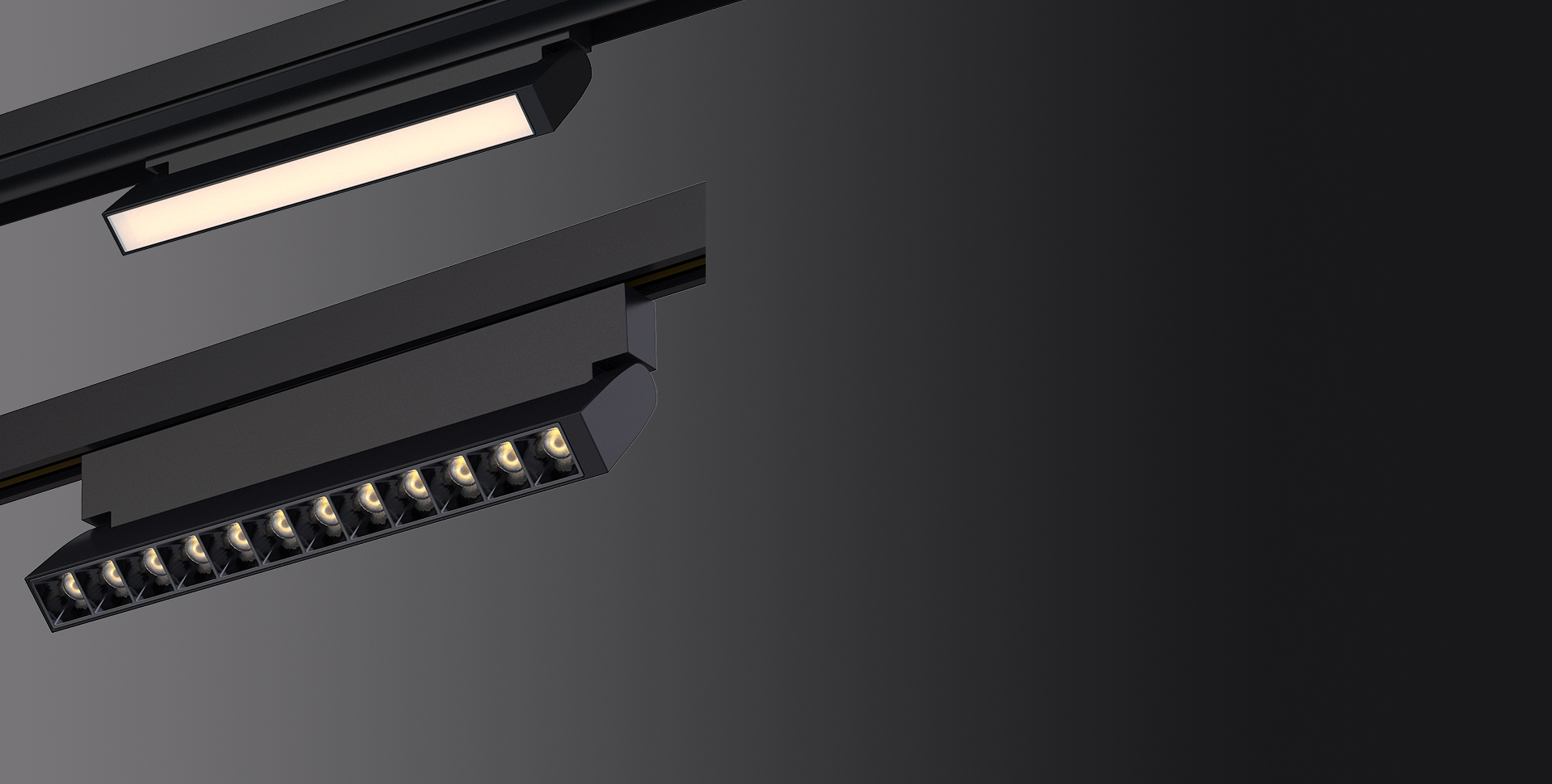

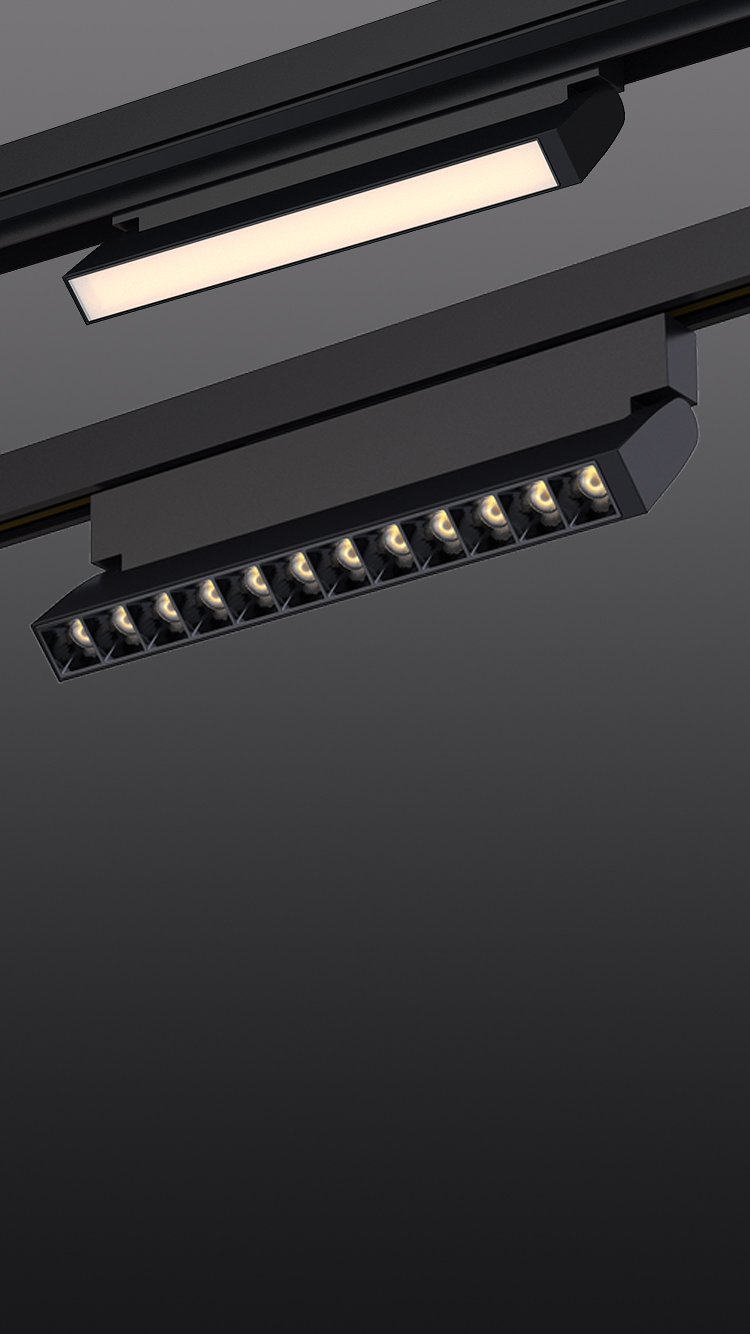

AURA E 48V Low Voltage Linear Track Head

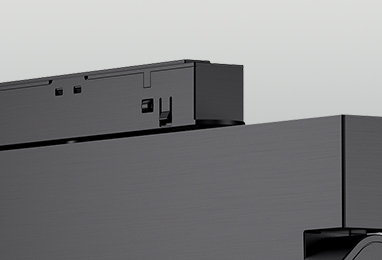

Aura E 48V low voltage linear track light match with the majority M20 low voltage magnet track system, magnetic and lock design makes it safe for installation, provides super high quality of light with flicker free driver and glare free optics.
Equipped with multi CCT technology, it can be 3000K-3500K-4000K 3CCT switchable, and you can also choose single CCT to get higher efficency.

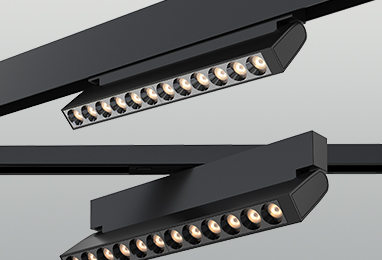

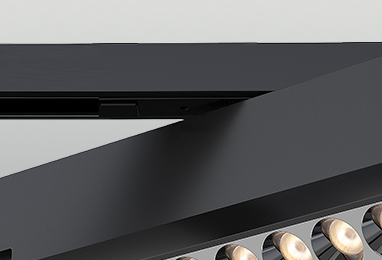

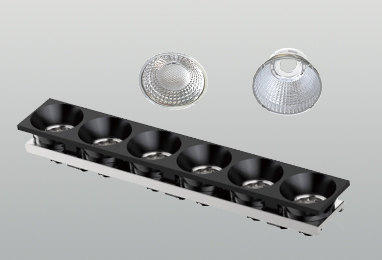

Aura E 48V low voltage linear track light can satisfy diversified customer’s requirement, it can be track mounted and concealed track mounted, offers lens plus reflector, microprism and PC cover optic option, 360° rotation and 180°adjustable , makes it easy to be installed and suitable for different application
Product Advantage
Relevant Data
Product Parameter
| Product Name | Aura E with Lens | Aura 3CCT with lens | Aura E with Microprism/PC Cover | Aura E 3CCT with Microprism/PC Cover |
| Wattage | 15W | 15W | 15W | 15W |
| Lumen | 1100lm | 950lm | 950lm | 880 |
| Ra & CCT | 927K 930K 935K 940K |
930K-935K-940K Switchable | 927K 930K 935K 940K |
930K-935K-940K Switchable |
| Beam angle | 24°，60° | 36°，60° | 90° | 90° |
| Color | White，Black | White，Black | White，Black | White，Black |
| Power Factor | 0.9 | 0.9 | 0.9 | 0.9 |
| Input Voltage | DC48V | DC48V | DC48V | DC48V |
| Dimming | NO | NO | NO | NO |
| Certificate | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC |
| Installation | Track mounted M20 rail Concealed track mounted M20 rail |
Track mounted M20 rail Concealed track mounted M20 rail |
Track mounted M20 rail Concealed track mounted M20 rail |
Track mounted M20 rail Concealed track mounted M20 rail |
Retail Lighting, Commercial Lighting
