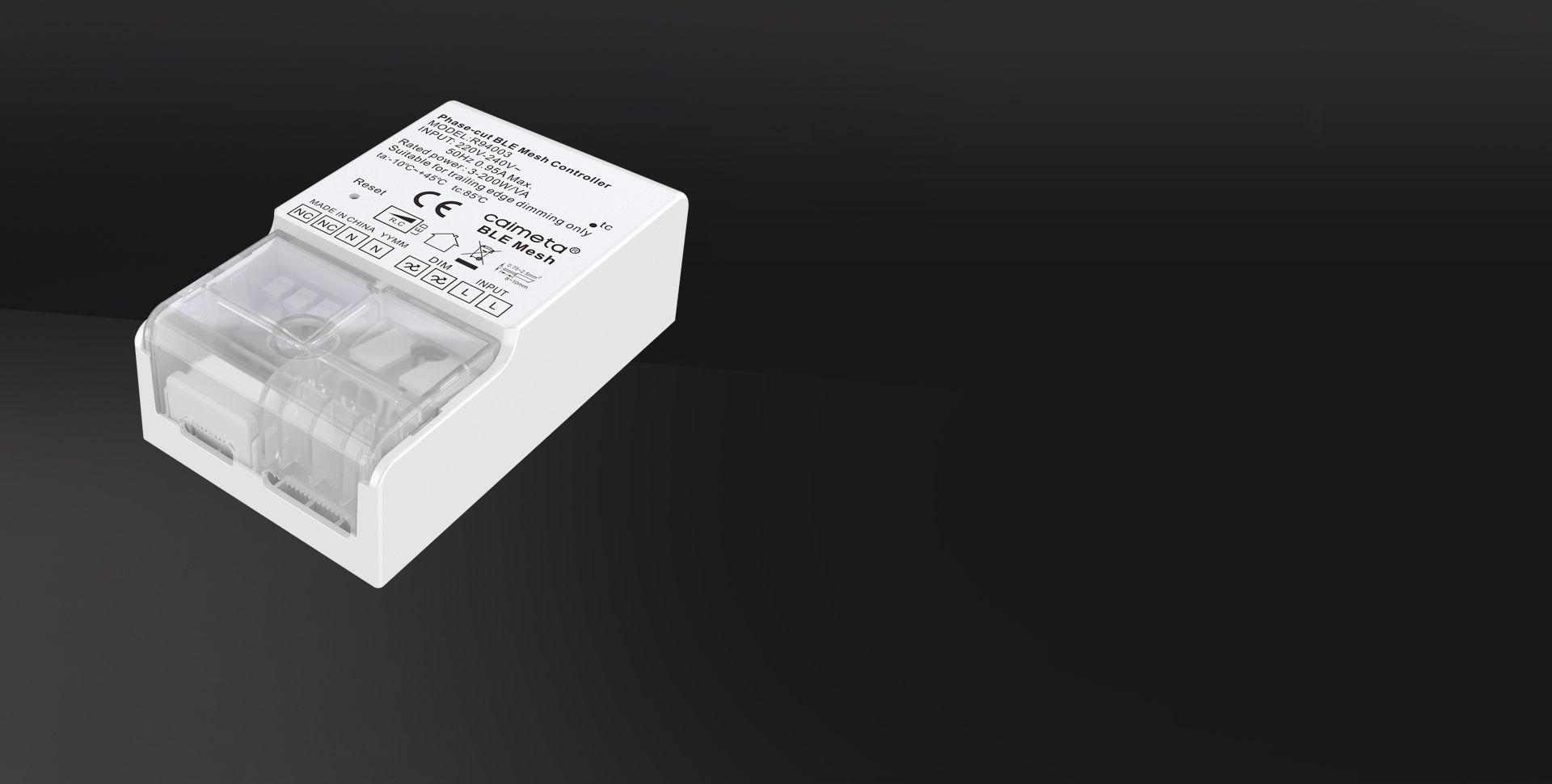

Phase-cut BLE Mesh Controller

Suitable for trailing edge dimming only

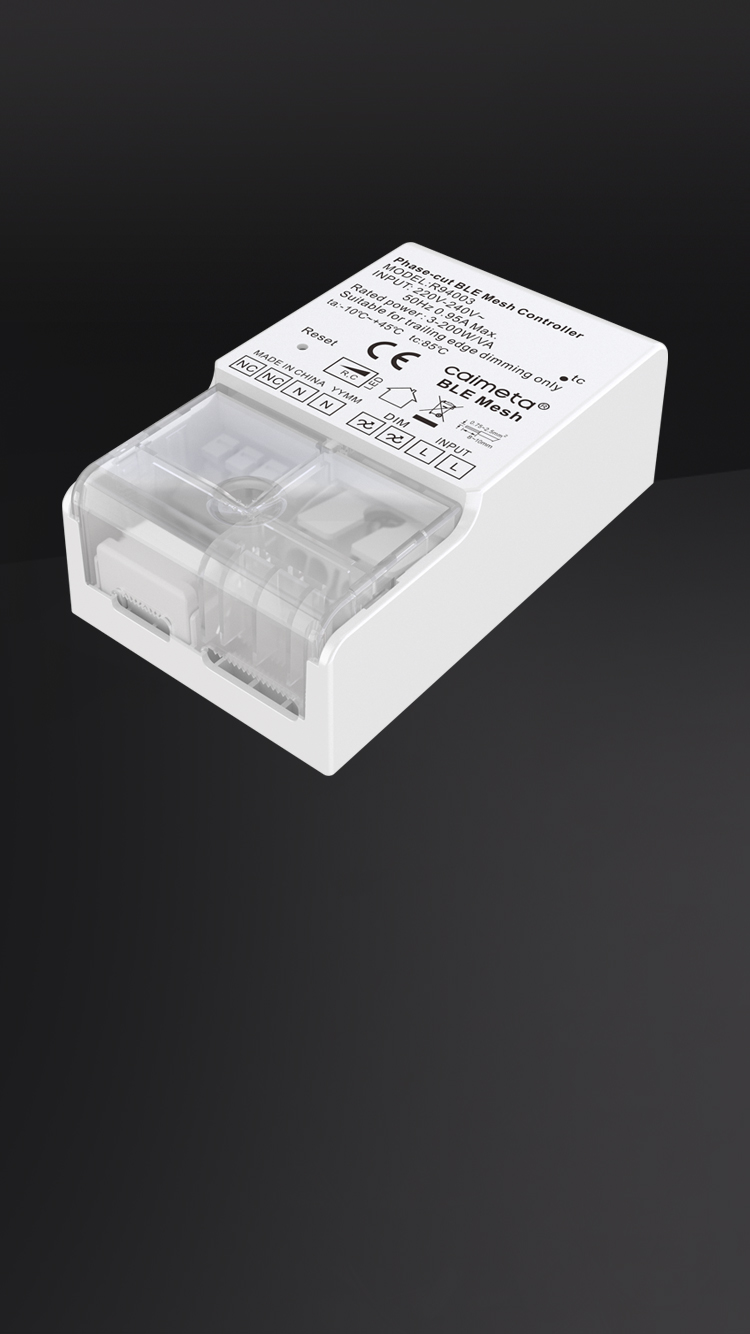

Phase-cut BLE Mesh Controller

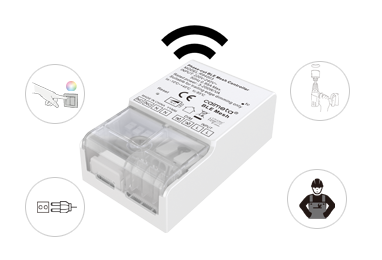

Features & Benefits HighlightEnables to connect Phase-cut luminaires and drivers using CAIMETA® wireless technology. The product brings advantages:

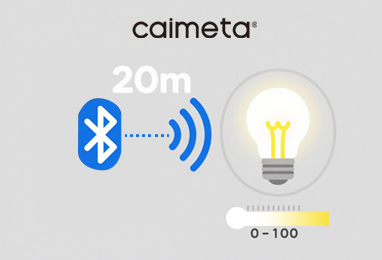

Easy control: achieve Bluetooth connecting and control the lights, Max. 20 meters wirelessly through a mobile app.• Achieve wireless on/off, 0-100% dimming.• Memory function: switch-on with last brightness. • Max. load: up to 200W phase-cut dimmable luminaires.• Independent Installation: Built-in cable clamp, suitable for any remote installation.• Easy wiring: push-fit terminals with through wiring, no screw fixing, making it easier to install.• Short-circuit protection, open-circuit protection, and heat protection: to enure the safety and reliability of the controller.

BLE MESHCONTROLLERS

To upgrade the traditional lighting products into the wireless control, connect them to the CAIMETA® DALI 2, Phase-cut, 0-10V or LED strip controllers. These controllers provide wireless control of traditional lighting, including ON/OFF, dimming, tuning, and color change, within a range of 20 meters. Compared to traditional lighting systems, these controllers offer numerous advantages, such as convenience, low cost, high flexibility, comprehensive functions, memory function, and easy installation. Additionally, they feature short-circuit protection, open-circuit protection, and heat protection.

Relevant data

Product parameter

Product code Input voltage Load type Dimming range Displacement Factor Max. load Standby Power Dimension
R94003 220-240V RC 0-100% 0.95 200W ≤0.5W 86x52x30MM
