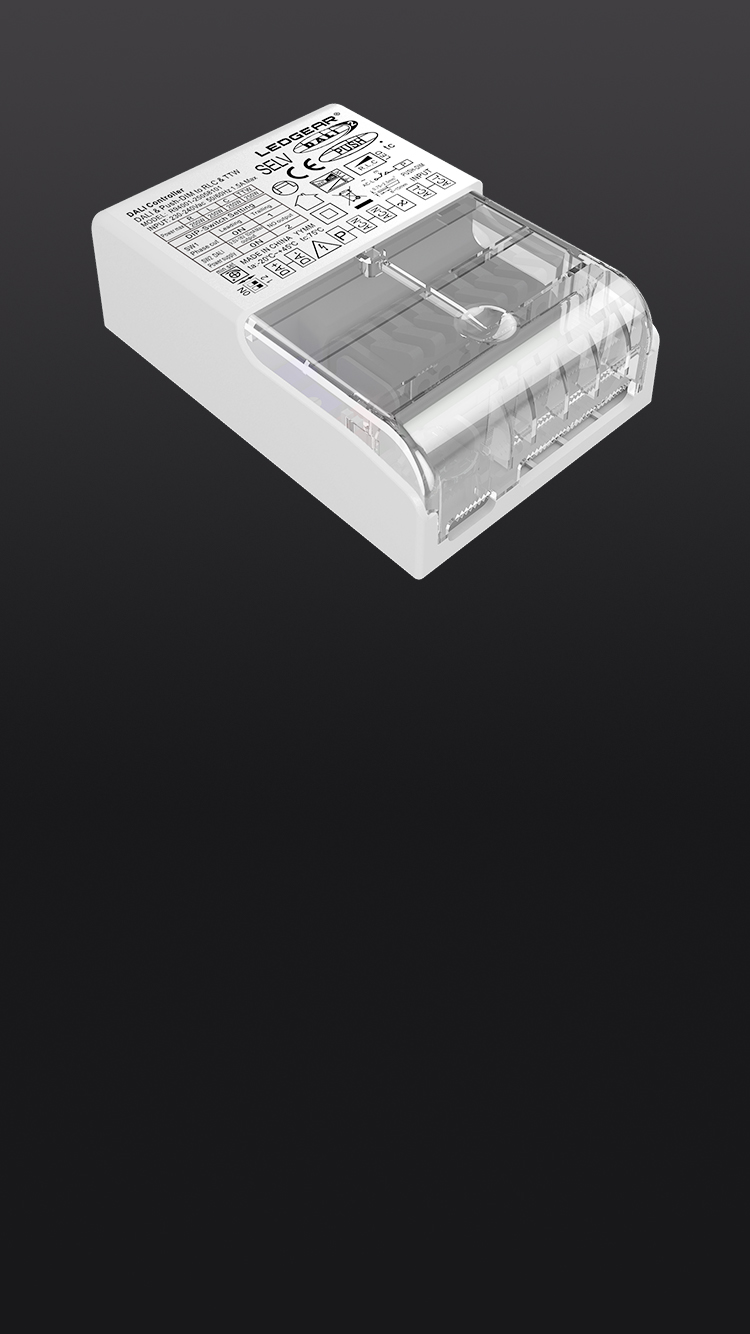

DALI-2 Controller
DALI 2 & Push-DIM to Universal load ( RCL+ TTW)
Integrated DALI power supply
The R94001 DALI Controller converts a DALl or Push signal to phase-cut dimming. It can be used where you want the phase-cut dimmable luminaires in a DALl, or Push-DlM system. This DALcontroller works with dimmable line voltage LED lamps, high voltage halogenand incandescent lamps. It has a DALl Short Address, and canbe including in up to 16 DALl Groups and or up to 16 DALl Scenes, which realizes savings on installation and wiring costs and will also reduce unnecessary waste of electronic equipment, making it an environmentallysound solution for a lighting control upgrade.
With immunity to EN 61547, safety to EN 61347 and providing protection of Over current, Short circuit, Over voltage, Over temperature, No-load operation. No damage at wrong mains voltage level. This is a high quality product that willgive you reliable protection and service. lts standby power consumption is<0.50 W.
Product Advantages
Relevant data
Product parameter
| Model | F94001 |
| Dimming range | 10~100% ( some can dim off) |
| DALI PS voltage | 9.5-16.5 Vdc |
| Standby Power | ≤0.5W |
| AC Votlage Range | 230V/240VAC |
| Frenquency Range | 50/60Hz |
| Maxi Power | 4W |
| Maxi Load | 300W for resistive; 250W for leading, trailing and TTW |
| Menmory fuctions | YES |
| Warranty | 5 years |
| Dimension | 87.5x60x27mm |
| Packaging | 440x320x220mm/ 80pcs per carton |
