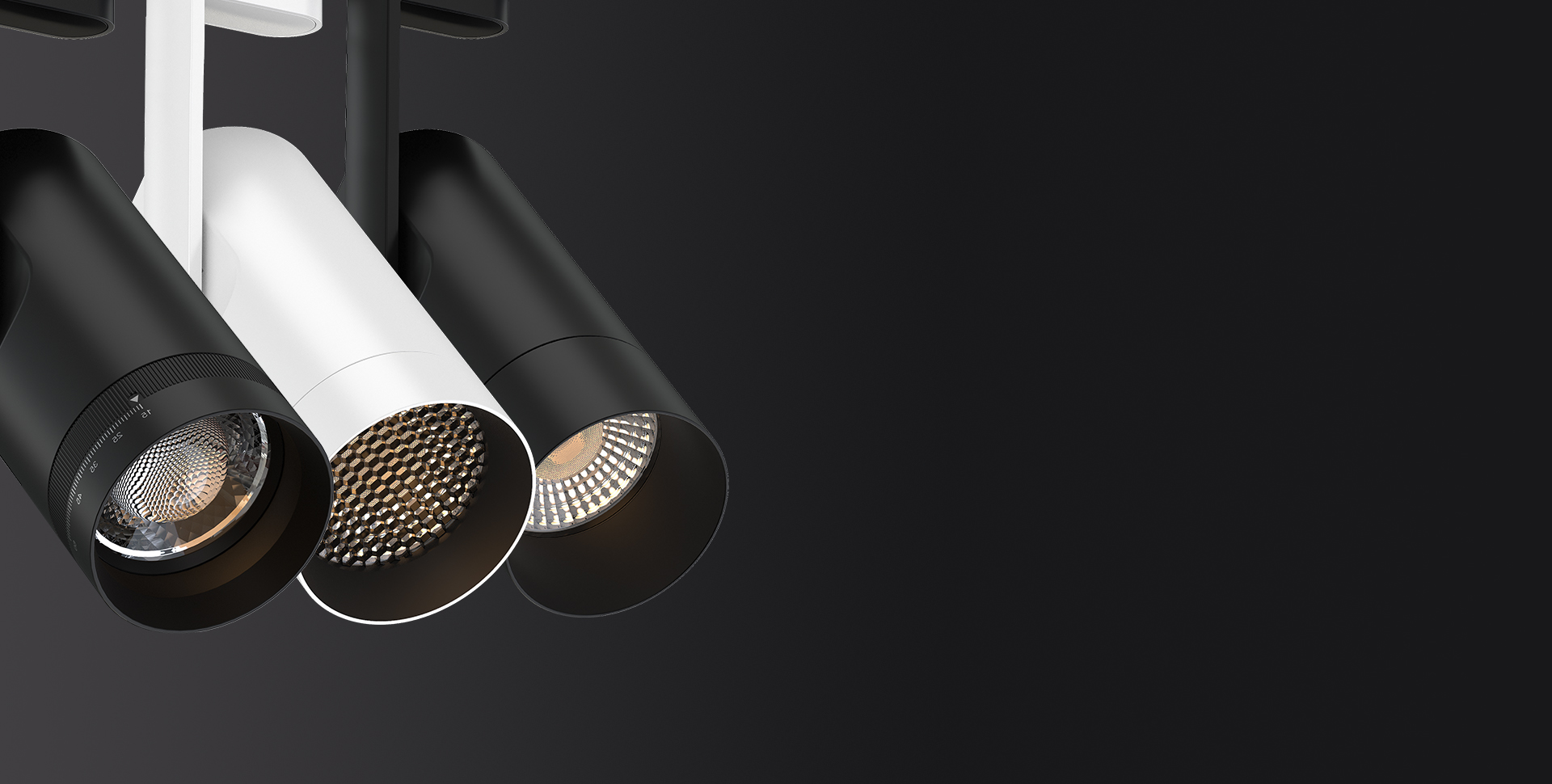

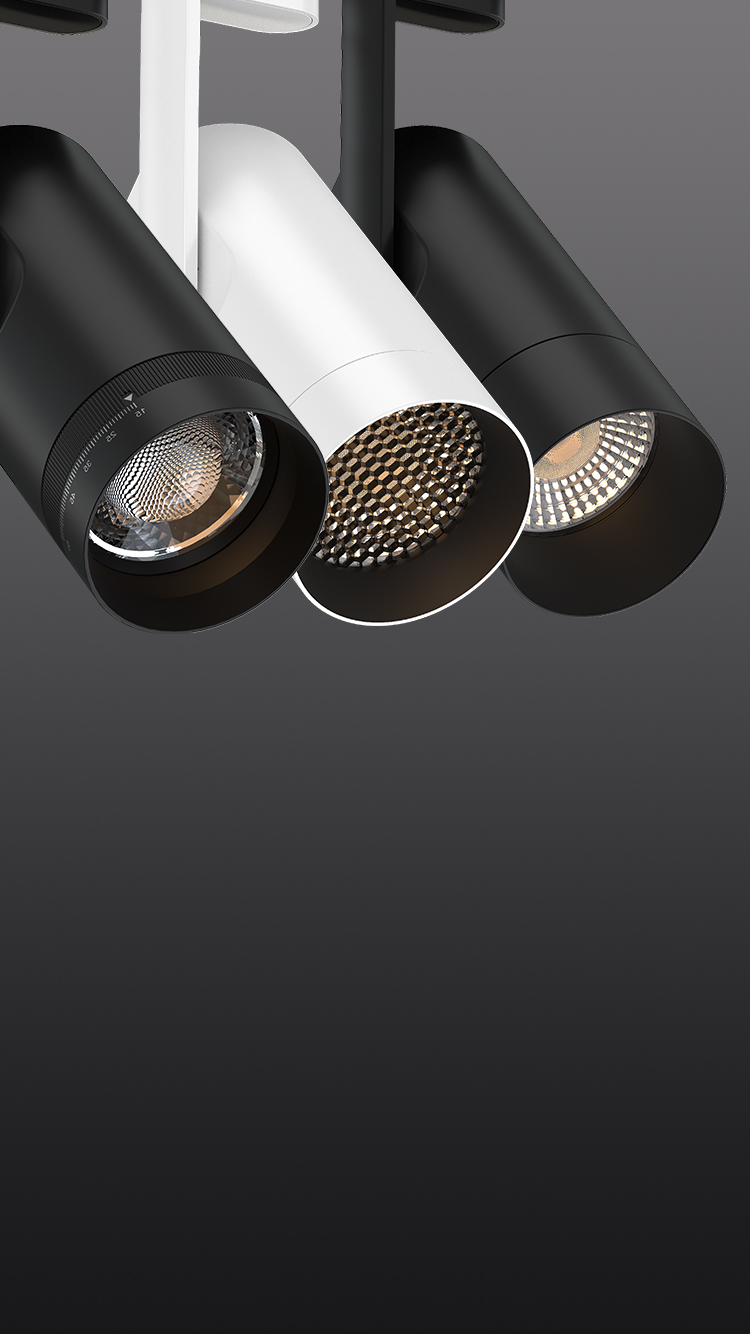

Kano E Track Lights
Kano is a high performance portfolio dedicated to architectural lighting segment, provides super high quality of light with flicker free driver and glare free optics.
Equipped with multi CCT and multi power technology, it can be 35W/30W/25W switchable at D80 and 25W/20W/15W switchable at D70. It can be 3000K-3500K-4000K 3CCT switchable, and you can also choose single CCT to get higher efficency. This reduce your SKUs and inventory, and shorter time to project.

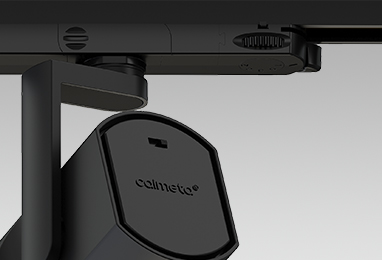

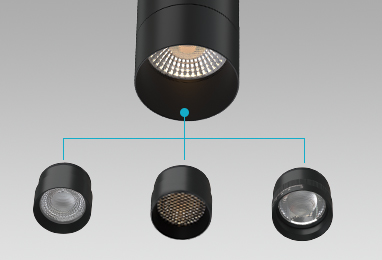

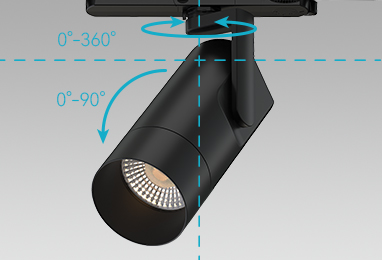

Kano can satisfy diversified customer’s requirement, 15°, 24°, 36°, 50° lens, 15° to 60° zoomable lens, honeycomb can be changed freely. Halo and Juno adaptor can be changed easily by screw driver, 360° rotation and 90° adjustable, makes it easy to be installed and suitable for different application.
Product advantage
Relevant data
Product parameter
| Product Name | Kano E Single CCT Track Lights | Kano E 3CCT Track Lights | Kano E Single CCT Zoomable Track Lights | Kano E 3CCT Zoomable Track Lights |
| Wattage | 15W-20W-25W (DIP Switchable) 25W-30W-35W (DIP Switchable) |
15W-20W-25W (DIP Switchable) 25W-30W-35W (DIP Switchable) |
15W-20W-25W (DIP Switchable) 25W-30W-35W (DIP Switchable) |
15W-20W-25W (DIP Switchable) 25W-30W-35W (DIP Switchable) |
| Lumen Max. (3000K / CRI90) | 25W / 2600lm 35W / 3500lm |
25W / 2200lm 35W / 3000lm |
25W / 2100lm 35W / 3000lm |
25W / 1850lm 35W / 2600lm |
| CCT | 3000K/3500K/4000K | 3000K-3500K-4000K (DIP Switchable) | 3000K/3500K/4000K | 3000K-3500K-4000K (DIP Switchable) |
| Track System | 4 wire 3 circuit 2 wire 1 circuit 6 wire 3 circuit |
4 wire 3 circuit 2 wire 1 circuit 6 wire 3 circuit |
4 wire 3 circuit 2 wire 1 circuit 6 wire 3 circuit |
4 wire 3 circuit 2 wire 1 circuit 6 wire 3 circuit |
| Beam angle | 15°，24°，36°，50° | 15°, 24°，36°，50° | 20°-60° | 20°-60° |
| Color | White，Black | White，Black | White，Black | White，Black |
| Dimming | Phase-cut DALI |
Phase-cut DALI |
Phase-cut DALI |
Phase-cut DALI |
| LM/W | 104lm/W | 88lm/W | 86lm/W | 75lm/W |
| Dimension | 25W / D70xH162mm 35W/ D70xH167mm |
25W / D70xH162mm 35W/ D70xH167mm |
25W / D70xH162mm 35W/ D70xH167mm |
25W / D70xH162mm 35W/ D70xH167mm |
| Warranty | 5-year Warranty | 5-year Warranty | 5-year Warranty | 5-year Warranty |
| Accessory | Honey Comb Linear Film Spread Film |
Honey Comb Linear Film Spread Film |
NA | NA |
