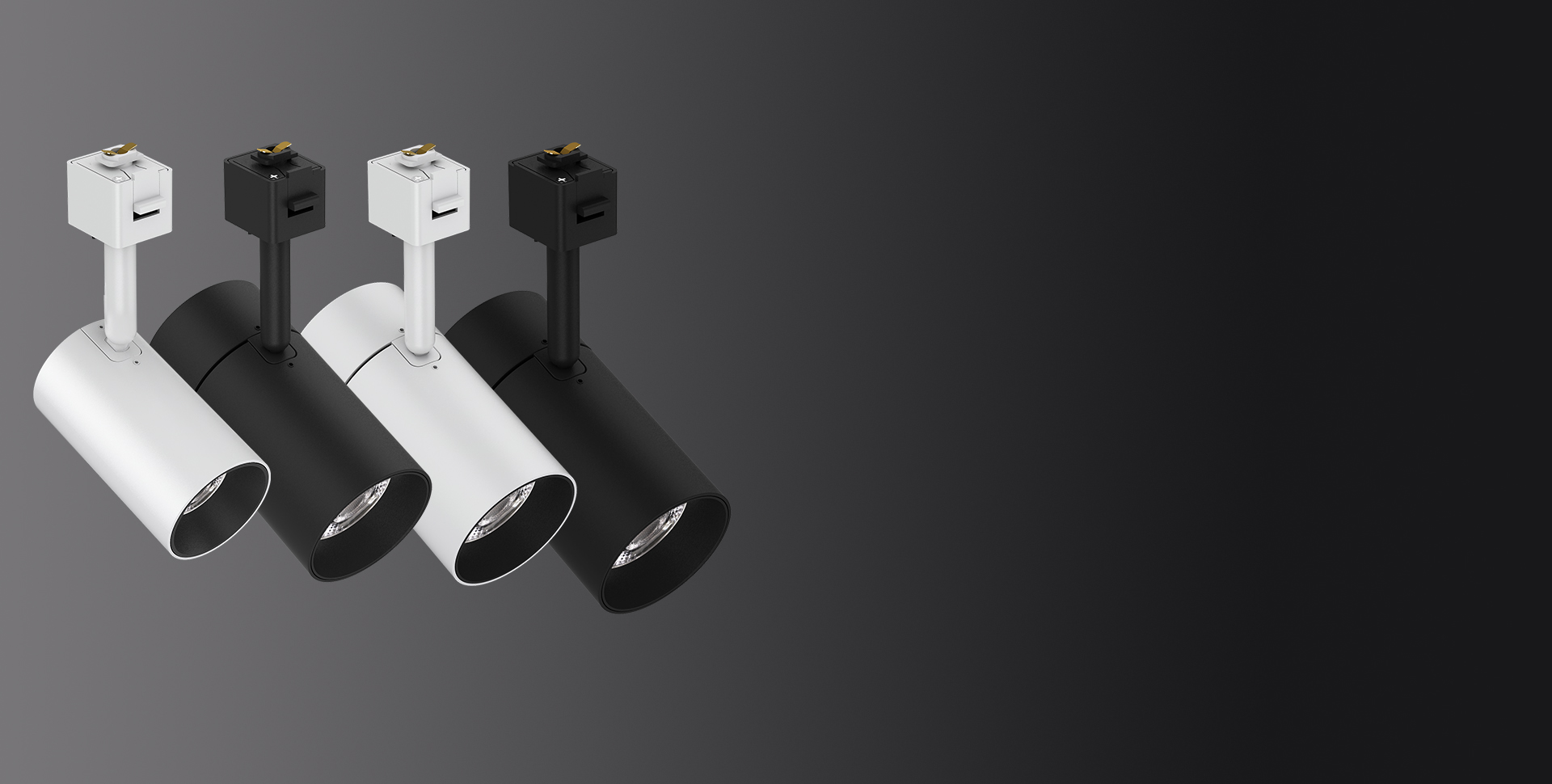

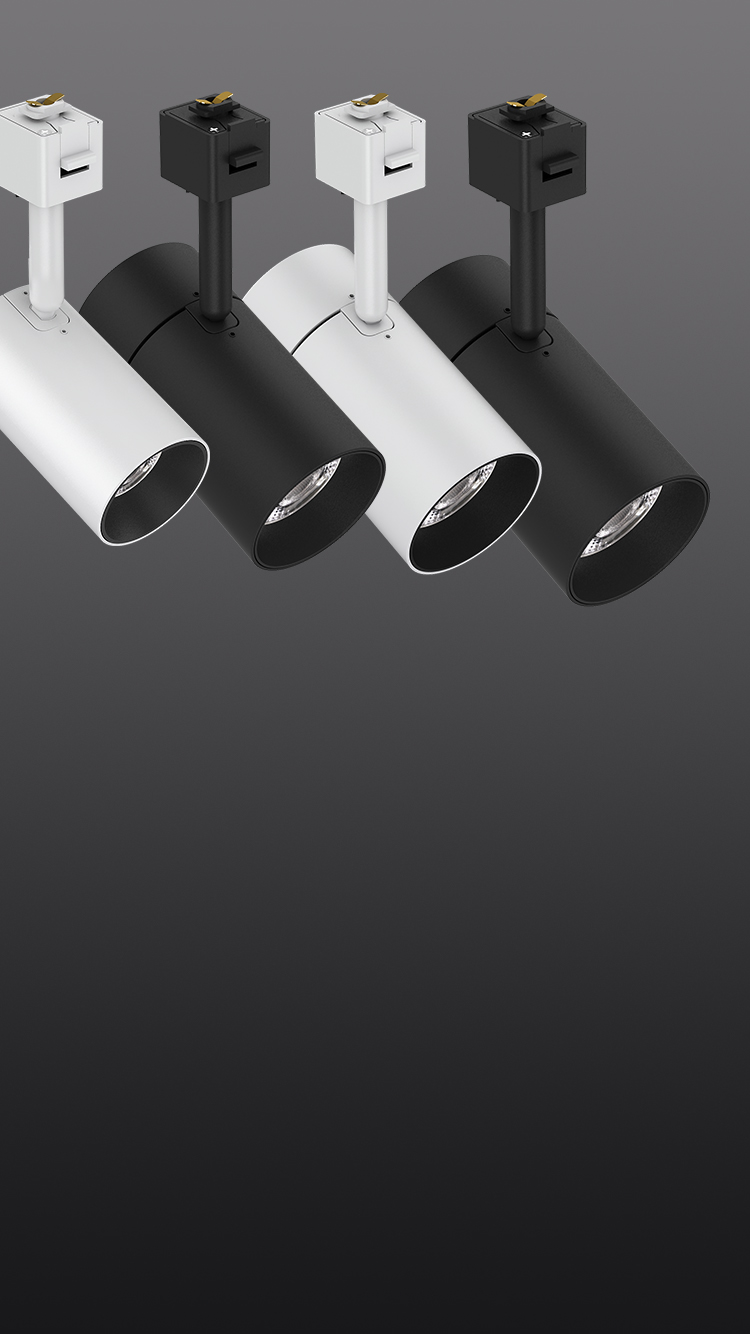

Hanz Track Head
A premium track heads family provides super high quality of light with flicker free, high efficacy and up to 95 CRl and super long lifespan.

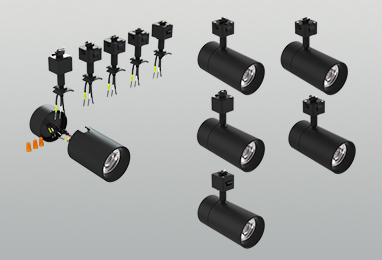

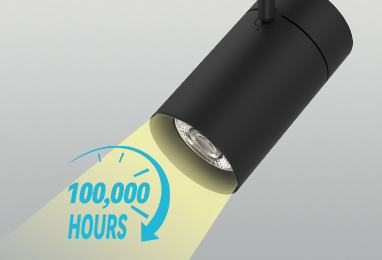

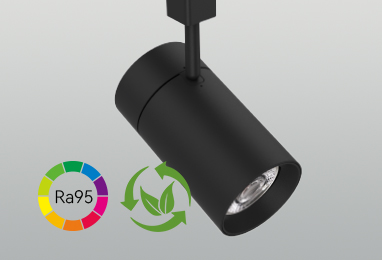

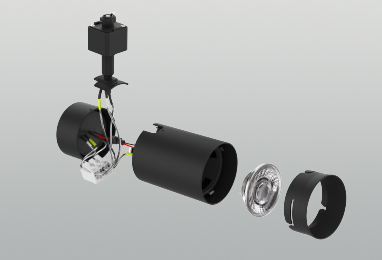

Solid and sleek cylinder appearance looks aesthetically eye-catching, the Hanz track head is an impressive modular track light system with interchangeable track head adapters, which are compatible with H-Type, J-Type, J2-Type, L-Type and 2C2N (Tek) track systems. It can reduce the inventory and shorter the time to projects in the patented modular interface. Integrated with excellent diver, it's compatible with most of the Triac and ELV dimmers. Also, it equipped with interchangeable CAMETA TIR lens to offer multiple beam spreads interchange from 15 degrees to 60 degrees, also the black baffle help to get a visual comfortable light. 4 different wattage and lumen powered with the CREE CXB COB LED arrays, which makes more energy-saving with high CRl up to 95. Optimized thermal management leads a super long lifespan of 100,000 hours, and five years warranty.
Product Advantage
Relevant Data
Product Parameter
| Product Name | Hanz(D60mm) | Hanz(D75mm) | Hanz(D85mm) | Hanz(D100mm) |
| Power | 10W | 15W | 25W | 38W |
| Lumen@4000K | 830lm | 1500lm | 2300lm | 3500lm |
| Color Temperature | 2700K/3000K/4000K/5000K | 2700K/3000K/4000K/5000K | 2700K/3000K/4000K/5000K | 2700K/3000K/4000K/5000K |
| Beam Angle(°) | 15°, 38°, 60° | 15°, 24°, 38°, 60° | 15°, 24°, 38°, 60° | 15°, 24°, 38°, 60° |
| Track System | H-Type、J-Type、J2-Type、L-Type and 2C2N(Two-Circuit Two-Neutral) | H-Type、J-Type、J2-Type、L-Type and 2C2N(Two-Circuit Two-Neutral) | H-Type、J-Type、J2-Type、L-Type and 2C2N(Two-Circuit Two-Neutral) | H-Type、J-Type、J2-Type、L-Type and 2C2N(Two-Circuit Two-Neutral) |
| Ra | 90 | 90 | 90 | 90 |
| Flicker Free | YES | YES | YES | YES |
| Dimming | Triac/ELV | Triac/ELV | Triac/ELV | Triac/ELV |
| Finish Color | Black, White | Black, White | Black, White | Black, White |
| L*W*H(") | 223/64" x411/64" x513/32" | 261/64" x511/16" x713/32'' | 311/32" x617/32" x727/64" | 315/16" x73/16" x811/64" |
| Input Voltage | AC120V | AC120V | AC120V | AC120V |
| Power Factor | 0.95 | 0.95 | 0.95 | 0.95 |
| Warranty | 5-years | 5-years | 5-years | 5-years |
| Lifespan(hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Certificated | ETL, FCC | ETL, FCC | ETL, FCC | ETL, FCC |
Retail Lighting, Commercial Lighting, Residential Lighting
