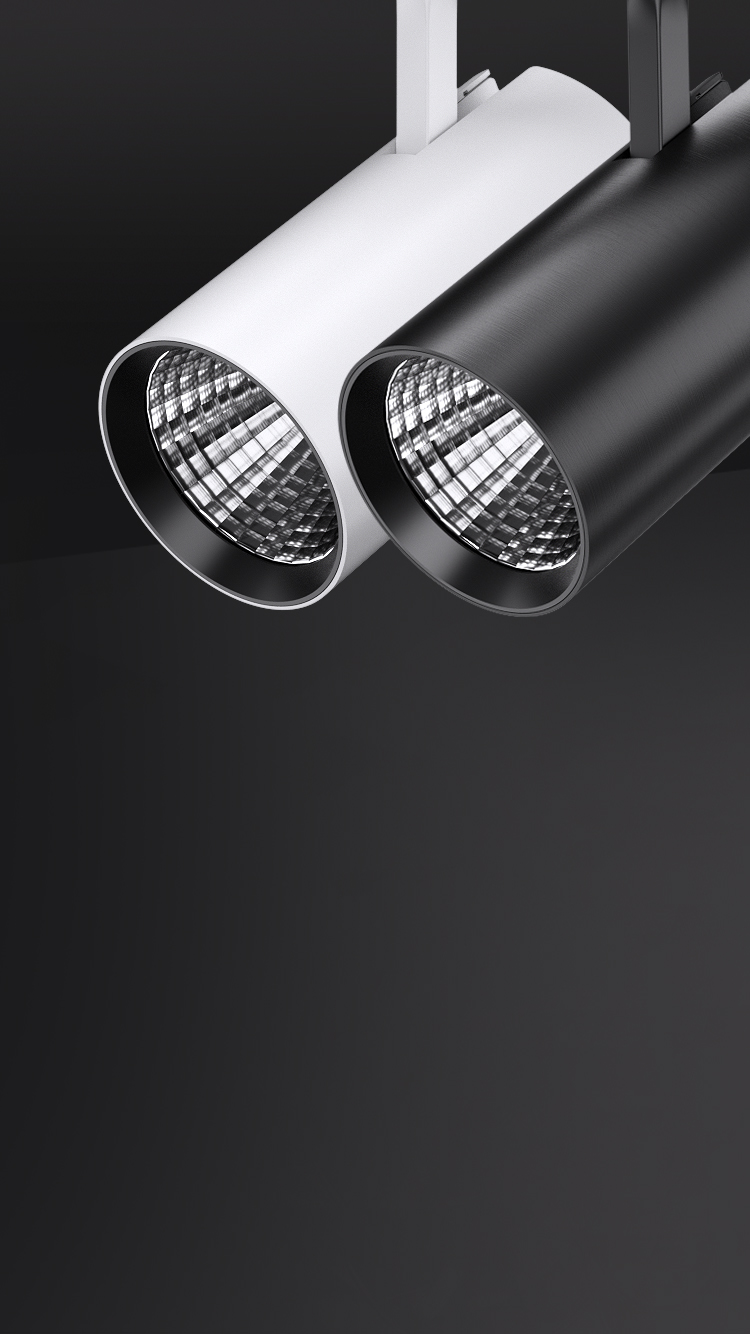

META E UHE Spotlights
The META E UHE series is an extension of the Meta E track light, specifically designed to enhance the shopping experience and create an inviting atmosphere in stores. It offers a versatile design for track installation, two sizes, and three beam spreads, allowing for customized lighting solutions. Key features include easy on-site reflectors changes, flicker-free operation, high energy efficiency, and flexible positioning.
Product advantage

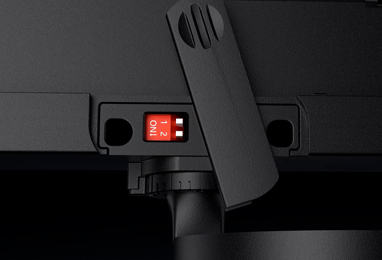

Power Switchable
DIP Switch power change:
30-25-20W
20-15-10W

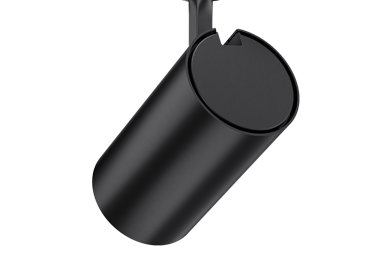

No visible screws
Sleek, compact cylinder housing with no visible screws

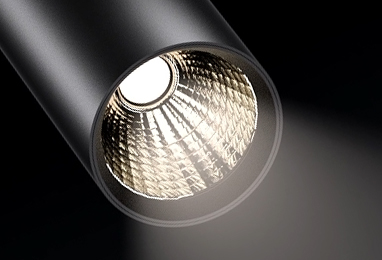

High Luminaire Efficiency
UP to 160 lm/W

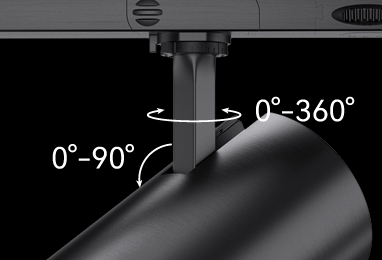

Rotation
360° horizontal rotation and 90° vertical adjustability
Relevant data
Product parameter
| Product Name | Meta E UHE Spotlights(30W 160LM/W) | Meta E UHE Spotlights(20W 160LM/W) |
| Installations type | Track 4wire 3circuit | Track 4wire 3circuit |
| Rotation | 360° (X-axis) 90° (Y-axis) | 360° (X-axis) 90° (Y-axis) |
| Input voltage | 220-240Vac | 220-240Vac |
| Non dimmable version | 30-28-26-24-22-20-18-16-14-12-10W | 20-18-16-14-12-10W |
| Triac dimmable version | 30-25-20W | 20-15-10W |
| CCT | 3000K, 3500K, 4000K,5000K | 3000K, 3500K, 4000K,5000K |
| Lumen | 4800Lm@4000K, 24° | 3200Lm@4000K, 24° |
| Lumen efficacy | Max.160Lm/W@4000K, 24° | Max.160Lm/W@4000K, 24° |
| Beam angle | 24°,36°,50° | 24°,36°,50° |
| Dimension | D80 x 147mm | D80 x 147mm |
| Finish Color | Texture white or Texture black | Texture white or Texture black |
