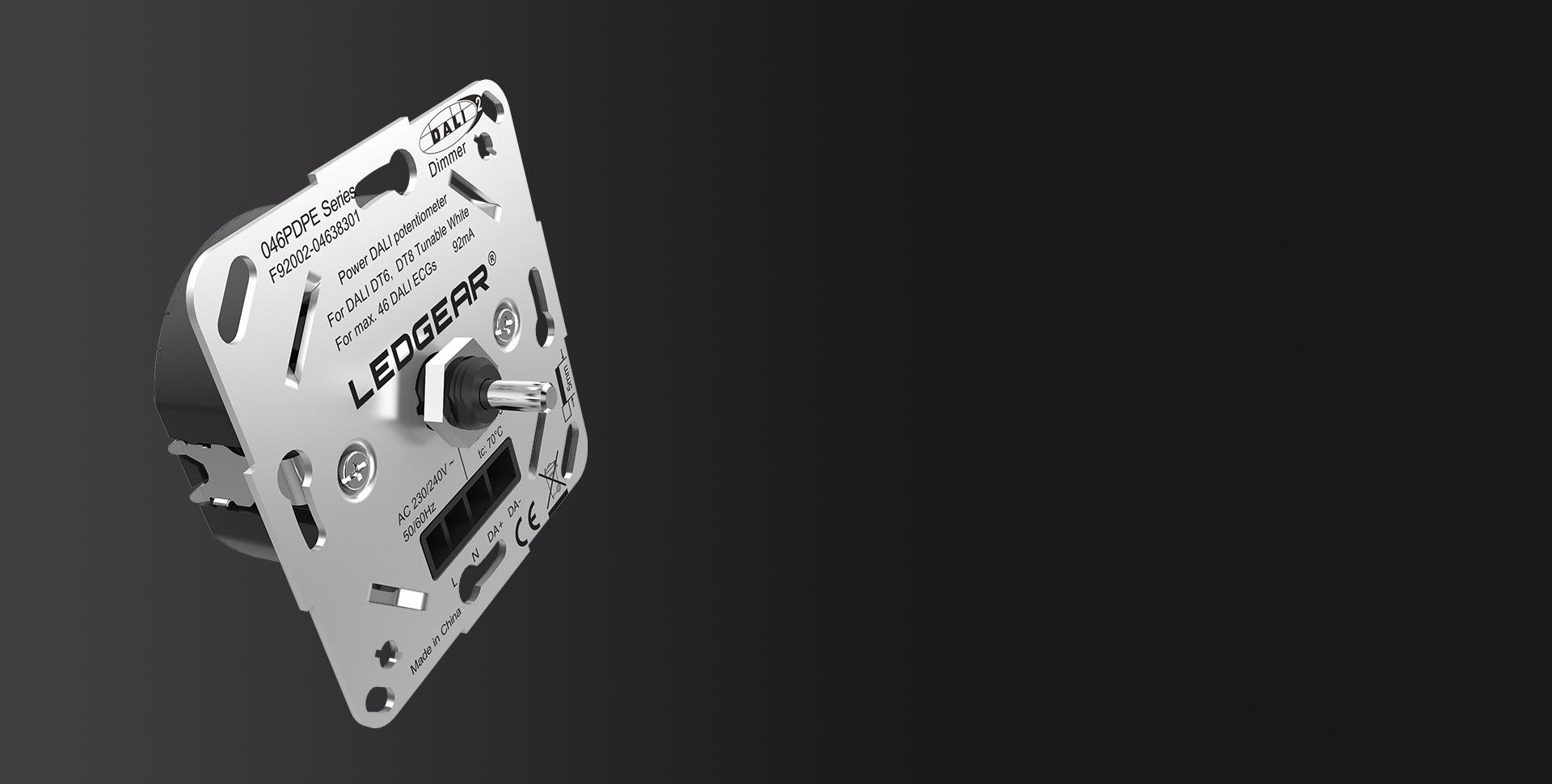

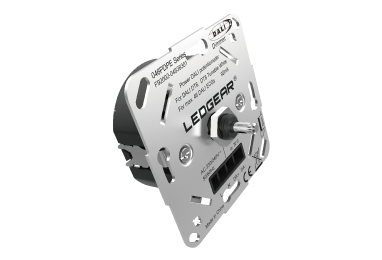

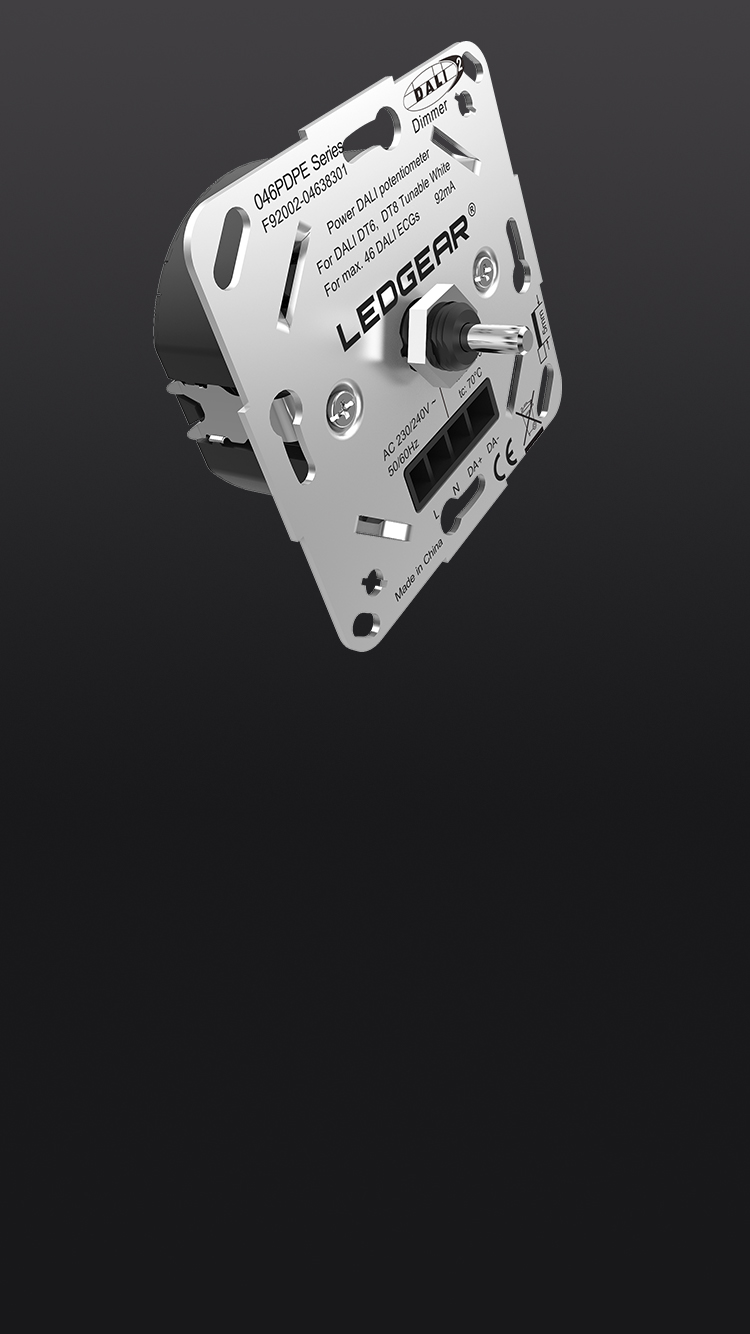

DALI-2 2in1 ROTARY DIMMER
The LEDGEAR® DALI MCU(Microcontroller) with DALI-2 output for dimming of luminaires or transformers with DALI interface.
Flush-mounted Rotary Dimmer for DALI DT6 and DT8 Tunable White applications, integrated DALI bus power supply of 82mA which
can power DALI bus while connected to AC mains. While not connected to AC mains, the DALI rotary dimmer can be powered by DALI bus.
Broadcast control up to 41 DALI devices from one dimmer, and possible to extend installation with up to 4 dimmers(for multiple control locations)
and 82 DALI-devices. Supplied without knob and front frame but compatible with most of the European frames, 5-year warranty.
Dimming solutions are easy and reliable, no DALI addressing required. Switch-on with brightness thanks for the permanently.
Double click enables users to switch between dimming and tuning(for DT8 only).
Product Advantages
Relevant data
Product parameter
| Model | F92002 |
| Dimming range | 0.1~100% |
| DALI PS voltage | 10-16.5 Vdc |
| Standby Power | ≤0.5W |
| AC Votlage Range | 230V/240VAC |
| Frenquency Range | 50/60Hz |
| Maxi Power | 3W |
| Maxi Load | 41PCS DALI ECGs/ 82mA |
| Operating life | 50,000 cycles |
| Menmory fuctions | YES |
| Mains surge capability (between L-N) | 0.5KV |
| DALI mode | DT6, DT8 Tc (tunable white) |
| CCT (Color temperature) Tuning Range | 2000K ~ 10,000K |
| Connection-Screw terminals | Maxi 2.5mm² input cable cord |
| Warranty | 5 years |
| Lifespan (hrs) @ ta=25℃ | ≥50,000H |
| Dimension | 70.8x70.8x45.8mm |
| Packaging | 400x340x360mm/ 100pcs per carton |
