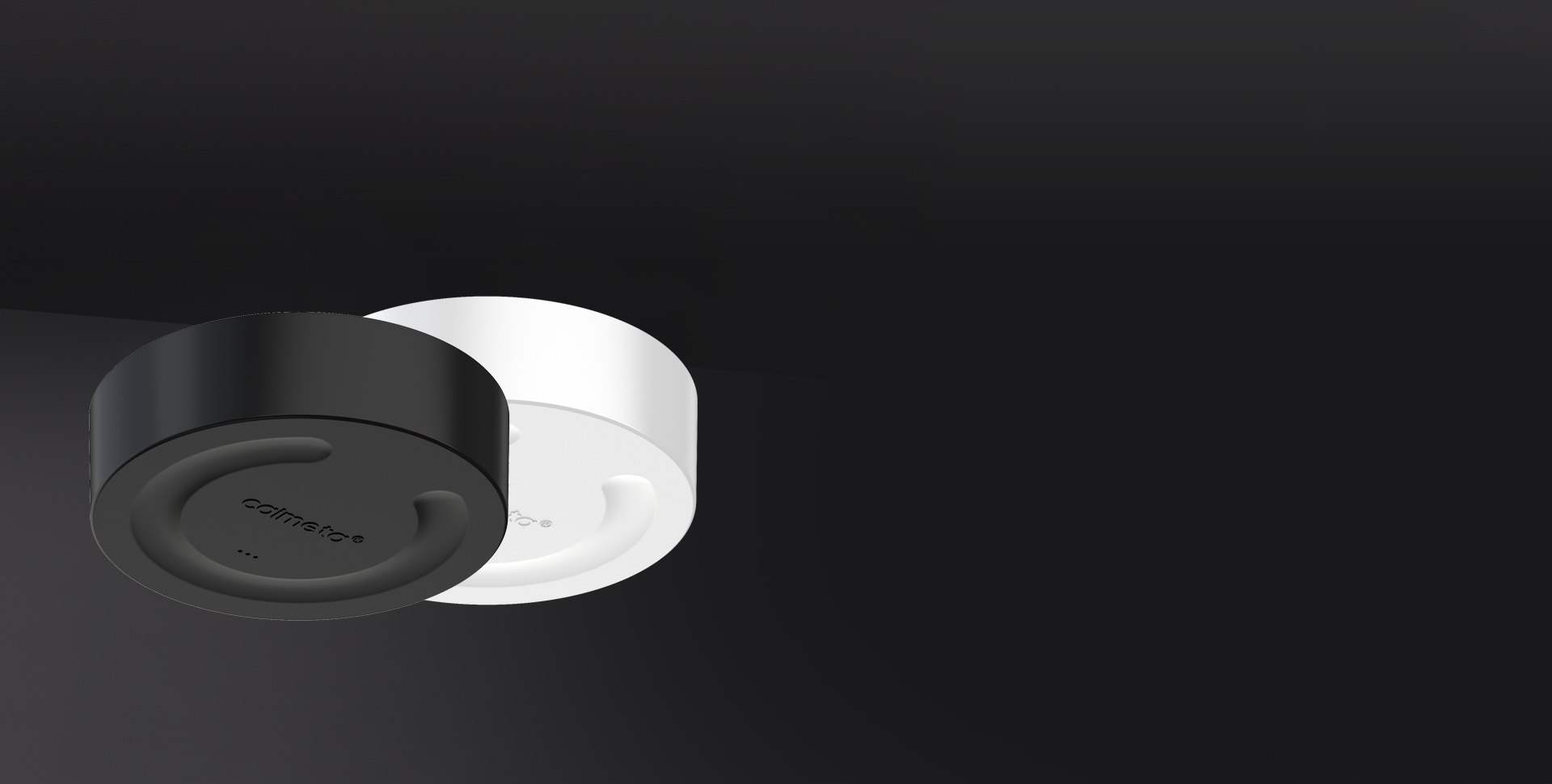

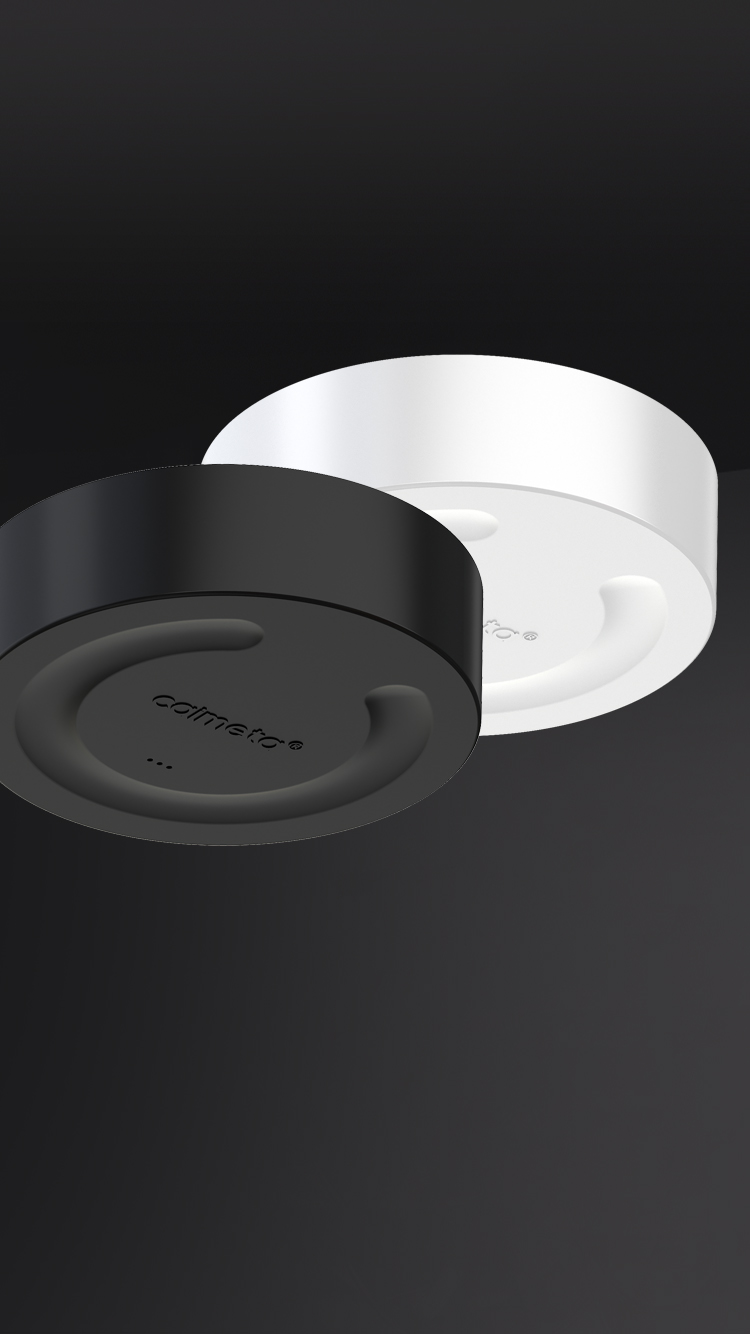

Caimeta Gateway

Caimeta Gateway

. Control all Caimeta devices (luminaires and controllers) via theInternet remotely: On/Off, Customization settings, Auto mode,Energy saving, etc.
. Set timers remotely for circadian lighting and timed control
. Connect Caimeta devices to collect commodity popularity datawith Bluetooth Mesh
. Transfer the commodity popularity data to AWS CLOUD inFrankfurt, Germany to ensure data safe
. Keep data locally while the Internet is disconnected until theconnection comes back
. Wired connection to the Internet makes data transfer more stable
· Maximum connected with 100 Caimeta devices with Bluetooth Mesh

Relevant data

Product parameter

Model Caimeta Gateway Communication distance >10m
Data transmission Rj45 network cable Software upgrade OTA (over the air) by Caimeta® App
Input voltage 12V DC or PoE(UTP CAT.5E 26AWG) Ambient temperature range(ta) -10'C to 40°C
Power consumption O.7W Storage temperature range -20°C to 60°C
Connecting method Connect devices with Caimeta Gateway by Caimeta App Dimension DxH ф90mmxH28mm
Connecting quantity Up to 100pcs Installation Surface mounted and pendant
Communication method Bluetooth Mesh Finish color White and black
