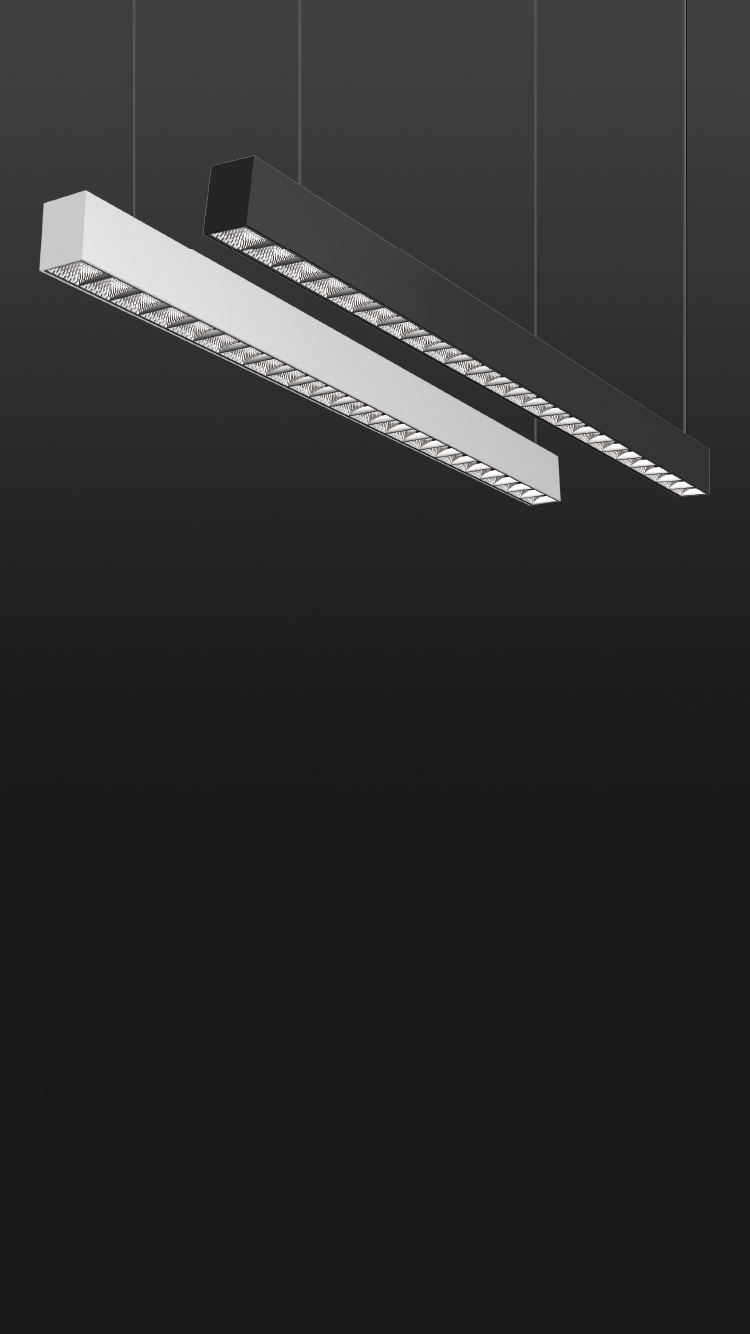

XLINE PLUS

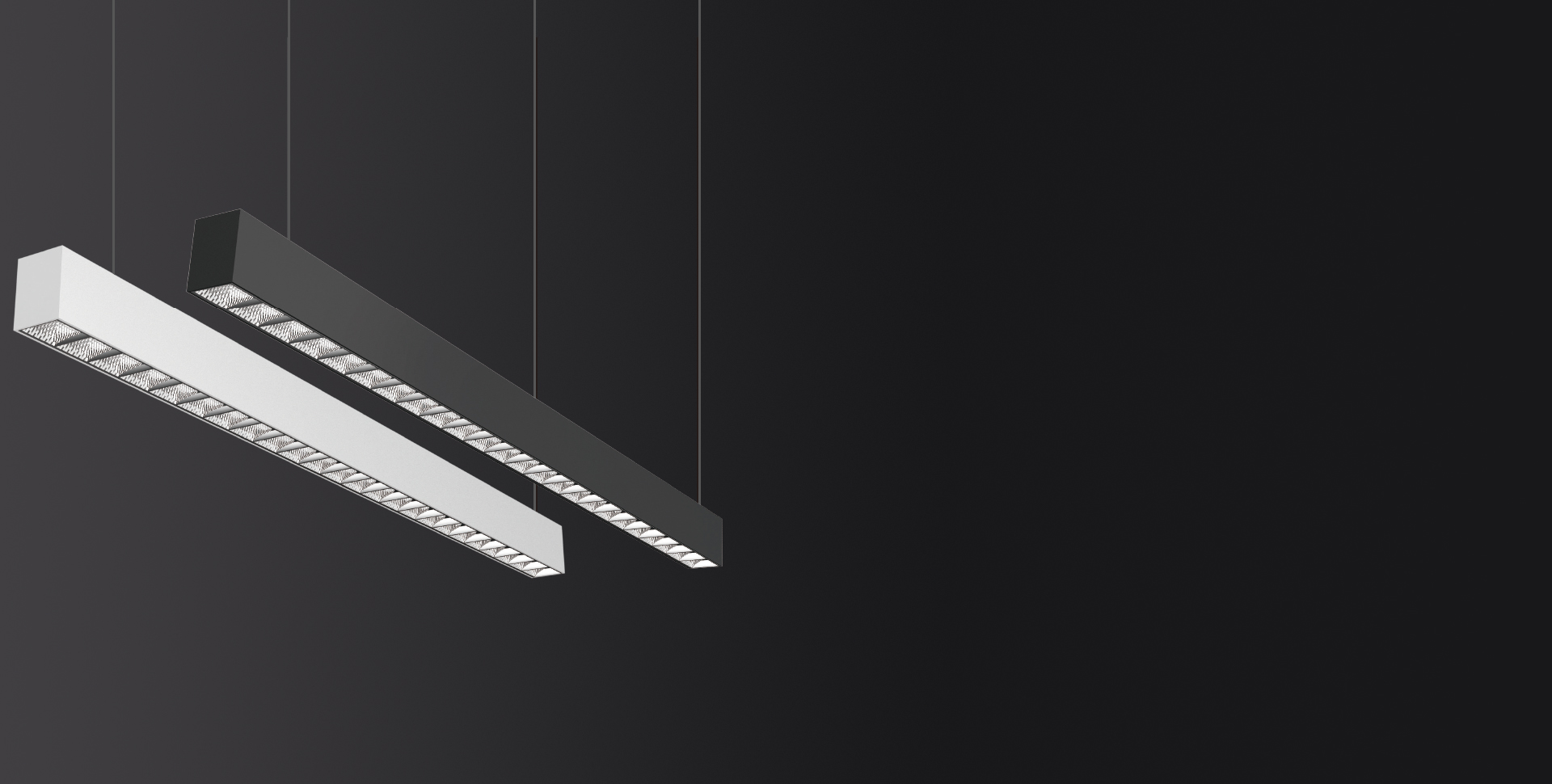

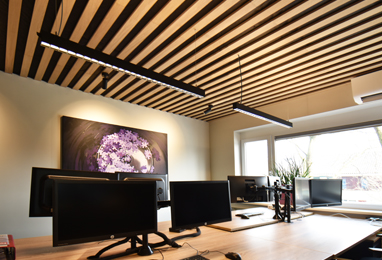

Xline™ plus is aesthetic and minimalist, easier for installations and newly developed the surface and track mounted besides the pendant.It’s flexible and seamless continuous connection to build creative and innovative lighting system. Distinctively rectangular aluminum luminaire housing from extruded aluminum profile; No visible screws; Indirect output reflected from the ceiling provide a softer and ambient illumination. The vacuum aluminum plating faceted louver with lens design minimized the glare. Suitable for VDUs workplace light according to EN 12464-1 (UGR 19, UGR 22); Available in 1167mm and 2330mm of length, with DALI, 0-10V or ON/OFF flicker free dimming control. Various lighting distributions meet the requirement of generation lighting, asymmetric distribution for shelves and wallwasher, bisymmetric distribution for aisle lighting.

Product Advantage

Seamless Design

Continuous plug & play with looping

Versatile Lighting

Direct or combined indirect

Optics

General, aisle, wall-washer, and shelf lighting

UGR

Ranges from 19 to 22 based on optics

Efficiency

120lm/W; Macadam 4 SDCM

Flicker-Free

Pst<1.0; SVM<0.4; flicker percentage <3%

Energy Class

Features Class D/E light source

Professional Maintenance

Replaceable light source & control gear.

Eco-friendly

WEEE compliant; recyclable, not for regular trash.

Relevant Data

Product Parameter

ONE SYSTEM WITH VARIOUS INSTALLATIONS
K&L Code Description Qty. Dimming Finish Color
4.CA.056.007 Surface Mounted Kit 2pcs(1pair) / /
4.CA.056.029 Pendant Kit: 1500mm aircraft with
“⊥ Bar(not rotationable)"		 1pc / White, Black
4.CA.056.030 Pendant Kit: 1500mm aircraft with clips 2pcs(1pair) / /
4.CA.056.037 Pendant Kit: 5000mm aircraft with clips 2pcs(1pair) / /
4.CA.056.004 Pendant Kit: 1500mm aircraft with clip,
1.5mm² x 1500mm cable and canopy		 1pc ON/OFF, DALI White, Black
4.CA.056.008 Track adptor with 0.75mm² cable 1pc ON/OFF, DALI White, Black
4.CA.056.009 Track adptor without cable 1pc ON/OFF, DALI White, Black
ON/OFF: 3 poles wire, Brown-L Blue-N Yellow/Green-E DALI: 5 poles wire Brown-L Blue-N Yellow/Green-E;
Red- +/DA Black- -/DA
ONE SYSTEM IN CONTINUOUS
K&L Code Name Description Qty. Finish
4.CA.056.006 End Cap Extrusion aluminum end cap 2pcs WH,BK
4.CA.047.001 I Connector I Connector 1pc /
4.CA.056.002 L Connector L Connector 1pc WH,BK
4.CA.056.001 T Connector T Connector 1pc WH,BK
4.CA.056.003 X Connector X Connector 1pc WH,BK
4.CA.056.018-*0 Empty Profile-ON/OFF Extrusion aluminum Empty
Profile/Blind Cover, incl.
ON/OFF looping
cables & rear pc cover		 1pc WH,BK
4.CA.056.018-*1 Empty Profile-DALI/O-10V Extrusion aluminum Empty
Profile/Blind Cover, incl.
DALI looping
cables & rear pc cover		 1pc WH,BK
4.CA.056.025-0 Looping Cable-ON/OFF
L1167mm		 incl.3x1.5mm²x 135cm cable,male and female
terminal at each side and
cable for driver input		 1pair /
4.CA.056.025-2 Looping Cable-DALI/O-10V
L1167mm		 incl.(3x1.5mm²+2x 0.2mm²)x 135cm cable,male and
female terminal at each side and cable for driver input		 1pair /
4.CA.056.025-1 Looping Cable-ON/OFF
L2330mm		 incl.3x 1.5mm²x250cm cable, male and female terminal
at each side and cable for
driver input		 1pair /
4.CA.056.025-3 Looping Cable-DALI/O-10V
L2330mm		 incl.(3x 1.5mm²+2x 0.2mm²)x 250cm cable, male and
female terminal at each side and cable for driver input		 1pair /
1.07.05.0048 Signal Feed In
Connector-2 pole		 2xMax,1.5mm² Poles Connector for Signal input 1pair /
1.07.05.0049 Power Feed In
Connector-3 pole		 3xMax.1.5mm² Poles Connector for AC input 1pair /
4.CA.056.017-0 Power Feed In
Cable-ON/OFF		 3x 1.5mm²x 100mm cable
with female connector and
WAGO 221-412Wago at each side		 1pc /
4.CA.056.017-1 Power Feed In
Cable-DALI/O-10V		 (3x 1.5mm²+2x 0.2mm²)x 100mm cable with female
connector and WAGO
221-412Wago at each side		 1pc /
Other CCT, length, lumen output on request
K&L Code Length(mm) Power(W) Lumen(Im) CCT(K) Up/Down Light(%) Down Light Beam Angle(°) Up Light Beam Angle(°) Continuous Dimming Finish Color
4.TR.059.V01 500 24 2800 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V01 1167 30 3500 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V05 1167 45 5300 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V01 1500 30 3500 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V05 1500 45 5300 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V09 1500 60 7000 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V13 1800 30 3500 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V17 1800 45 5300 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V21 1800 60 7000 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V09 2330 45 5300 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V13 2330 90 10500 3000-4000-5000 Direct Lighting 0% : 100% 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.059.V03 500 24 2800 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V03 1167 30 3500 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V07 1167 45 5300 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V03 1500 30 3500 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V07 1500 45 5300 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V11 1500 60 7000 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V15 1800 30 3500 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V19 1800 45 5300 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.055.V32 1800 60 7000 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V11 2330 45 5300 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
4.TR.043.V15 2330 90 10500 3000-4000-5000 Indirect/Direct Lighting
30% : 70%		 110
85x85
80
30x70
55x90		 110 Continuous Independent ON/OFF
0-10V
DALI DT6		 BK, WH
