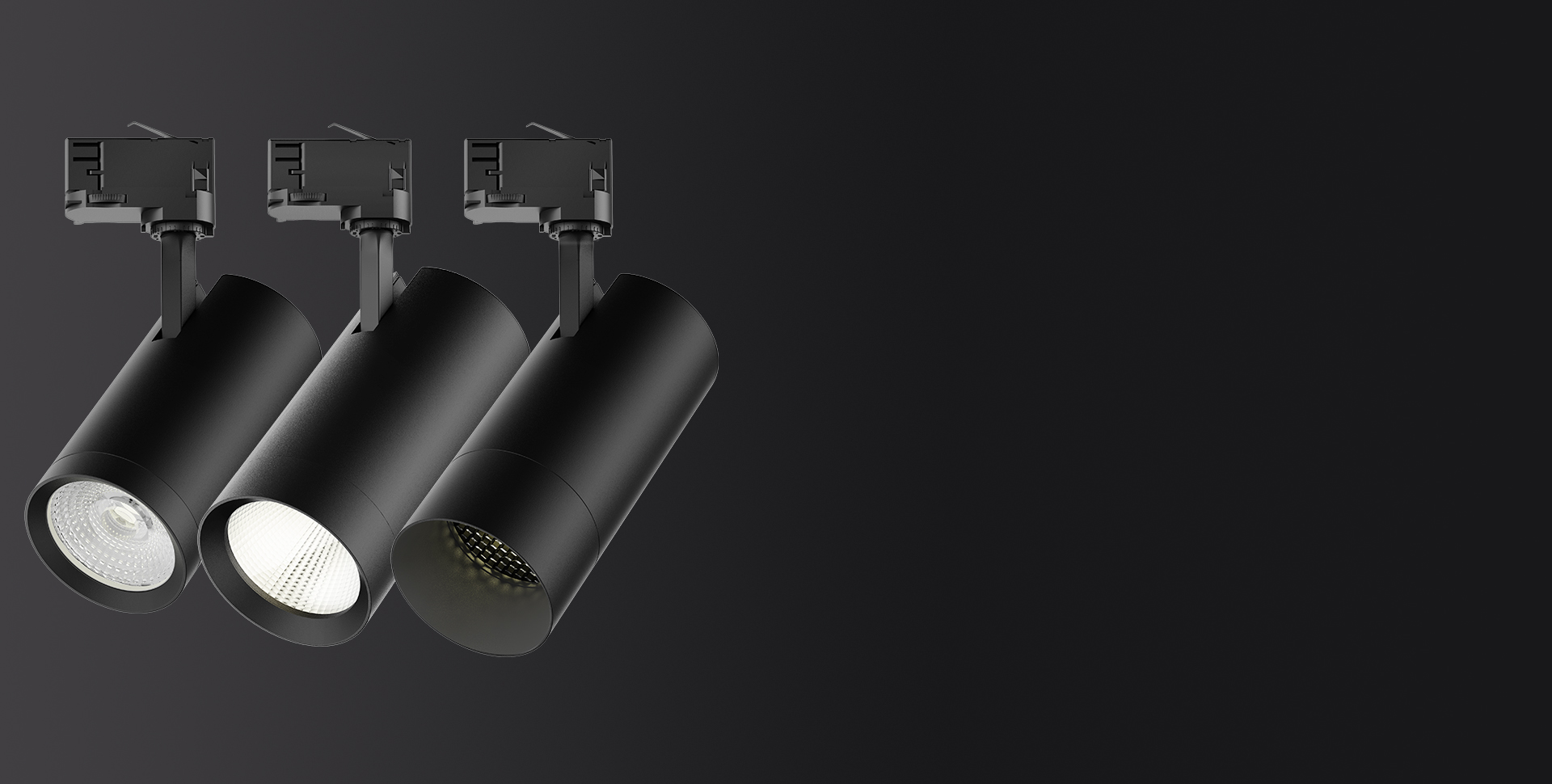

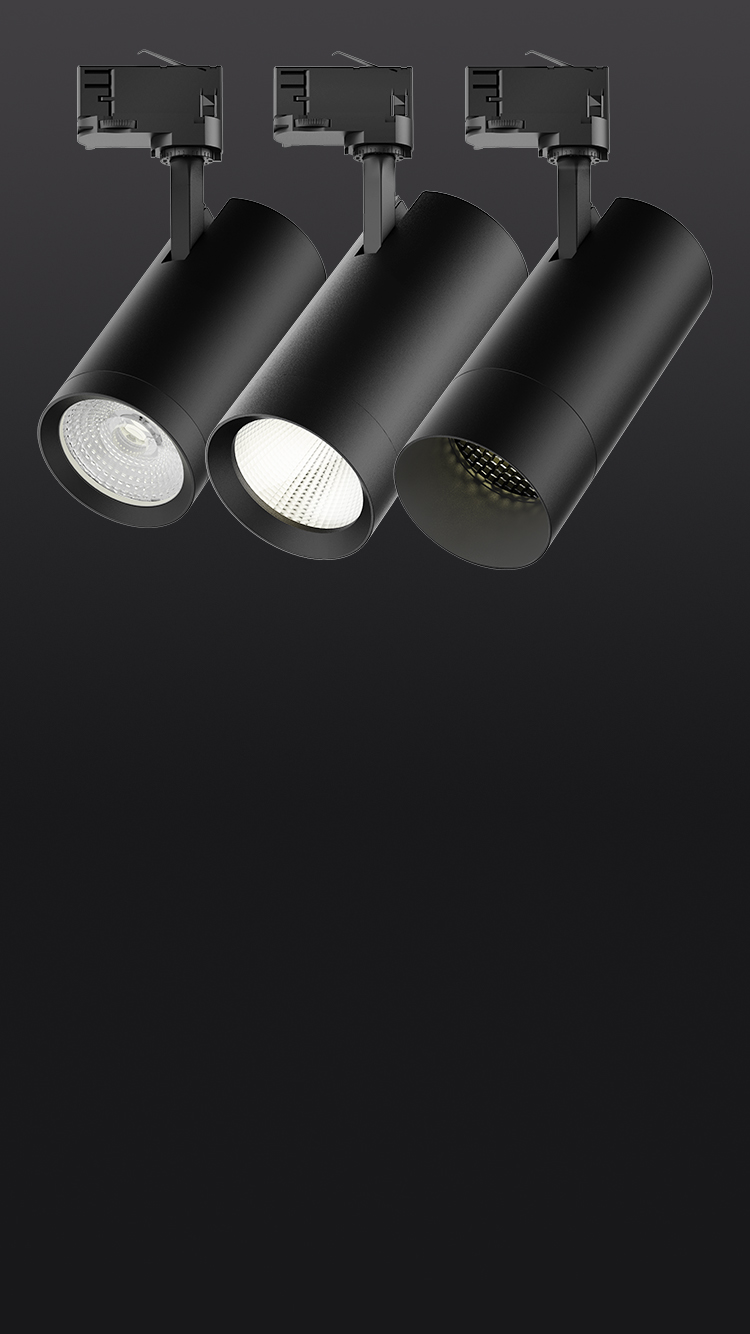

Matter Track Light-With Built-in Driver
Matter is circular design product, a future-proof concept, light engine, driver, LED module, optics and accessories, can be combined together freely, fully modular, fully recycled and fully sustainable.
Equipped with multi CCT and multi power technology, it can be 35W/30W/25W switchable at D90, 25W/20W/15W switchable at D80,15W/10W/5W switchable at D70 and 10W/5W switchable at D60.
It can be 3000K-3500K-4000K 3CCT switchable, and you can also choose single CCT to get higher efficency.
This reduce your SKUs and inventory, and shorter time to project.Matter can satisfy diversified customer's requirement, 15°, 24°, 36°,60° lens & reflector, 15° to 60° zoomable lens, honeycomb, snoot and LED module can be changed freely.
Matter is a high performance portfolio dedicated to architectural lighting segment, provides super high quality of light with flicker free driver and glare free optics. No visible screw, sleek and compact cylinder housing and built-in driver design, makes the product looks very charming.
Product advantage
Relevant data
Product parameter
| Product Name | D60mm Matter Track Light | D70mm Matter Track Light | D80mm Matter Track Light | D90mm Matter Track Light |
| Wattage | 10W/5W switchable | 15W/10W/5W switchable | 25W/20W/15W switchable | 35W/30W/25W switchable |
| Max. Lumen (at CRI90 3000K) | Single CCT: 1500LM 3CCT: 1300LM |
Single CCT: 2500LM 3CCT: 2200LM |
Single CCT: 3400LM 3CCT: 3000LM |
Single CCT: 3850LM 3CCT: 3400LM |
| Lumen Efficacy | Single CCT: 100lm/w 3CCT: 90lm/w |
Single CCT: 107lm/w 3CCT: 87lm/w |
Single CCT: 104lm/w 3CCT: 88lm/w |
Single CCT: 100lm/w 3CCT: 86lm/w |
| Track System | 4wire 3circuit 6wire 3circuit |
4wire 3circuit 6wire 3circuit |
4wire 3circuit 6wire 3circuit |
4wire 3circuit 6wire 3circuit |
| Beam Angle | 15°，24°，36°，60° |
15°，24°，36°，60° |
15°，24°，36°，60° |
15°，24°，36°，60° |
| CBCP @24° 3000K | Single CCT: 9500cd 3CCT: 7500cd |
Single CCT: 15000cd 3CCT: 12000cd |
Single CCT: 18000cd 3CCT: 14000cd |
Single CCT: 20000cd 3CCT: 15500cd |
| Lifespan L70B50 @Ta=25° | Single CCT: 136000H 3CCT: 102000H |
Single CCT: 136000H 3CCT: 102000H |
Single CCT: 136000H 3CCT: 102000H |
Single CCT: 136000H 3CCT: 102000H |
| Adjustable | Horizontal 360° Vertical 90° |
Horizontal 360° Vertical 90° |
Horizontal 360° Vertical 90° |
Horizontal 360° Vertical 90° |
| Warranty | 5-Years | 5-Years | 5-Years | 5-Years |
| Color | White RAL9003 , Black RAL7021 |
White RAL9003 Black RAL7021 |
White RAL9003 Black RAL7021 |
White RAL9003 Black RAL7021 |
| Dimming Option | Phase-cut DALI |
Phase-cut DALI |
Phase-cut DALI |
Phase-cut DALI |
| Accessory | Honey comb Linear Film Spread Film |
Honey comb Linear Film Spread Film |
Honey comb Linear Film Spread Film |
Honey comb Linear Film Spread Film |
