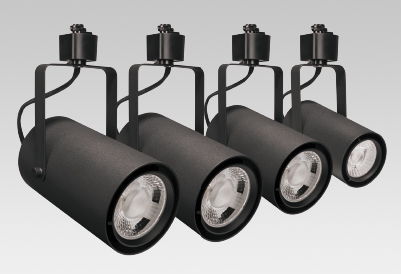

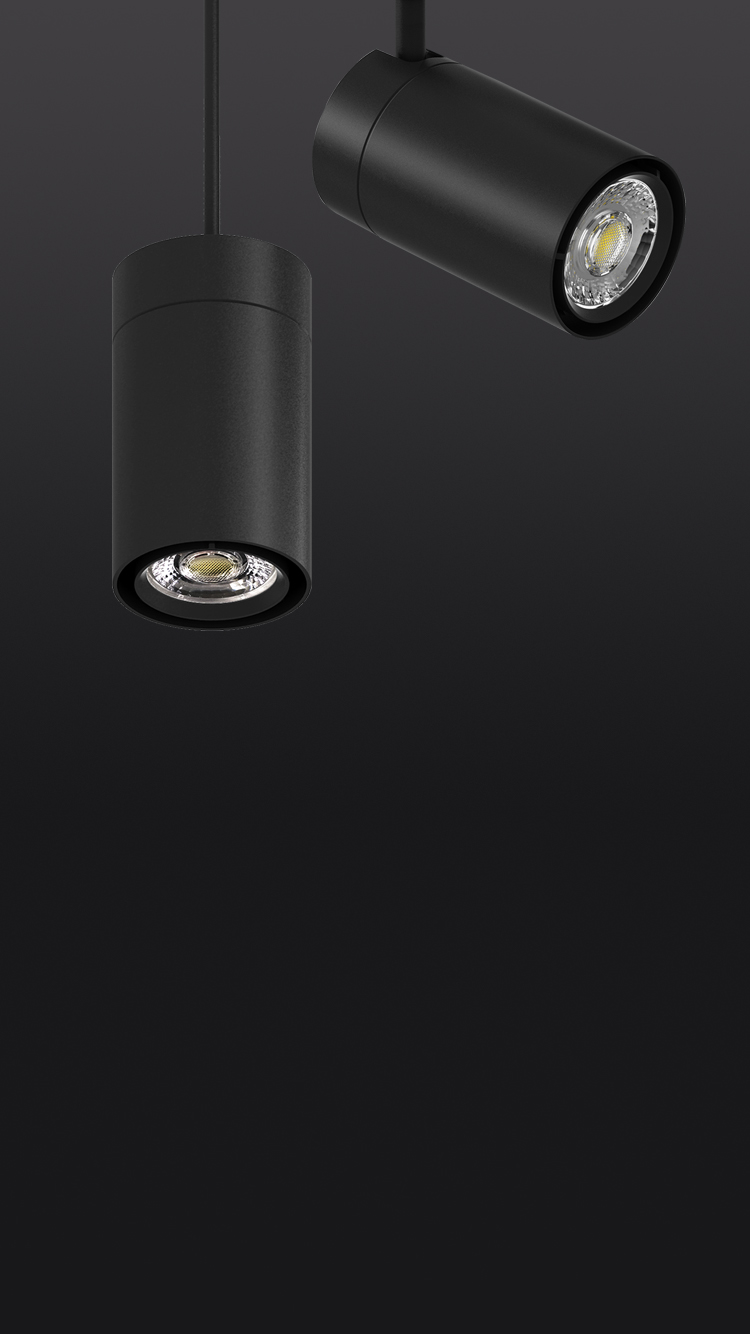

Smarter G3 Track Head
Smarter is the ideal fixture for the illumination of shops, restaurants, and art galleries.

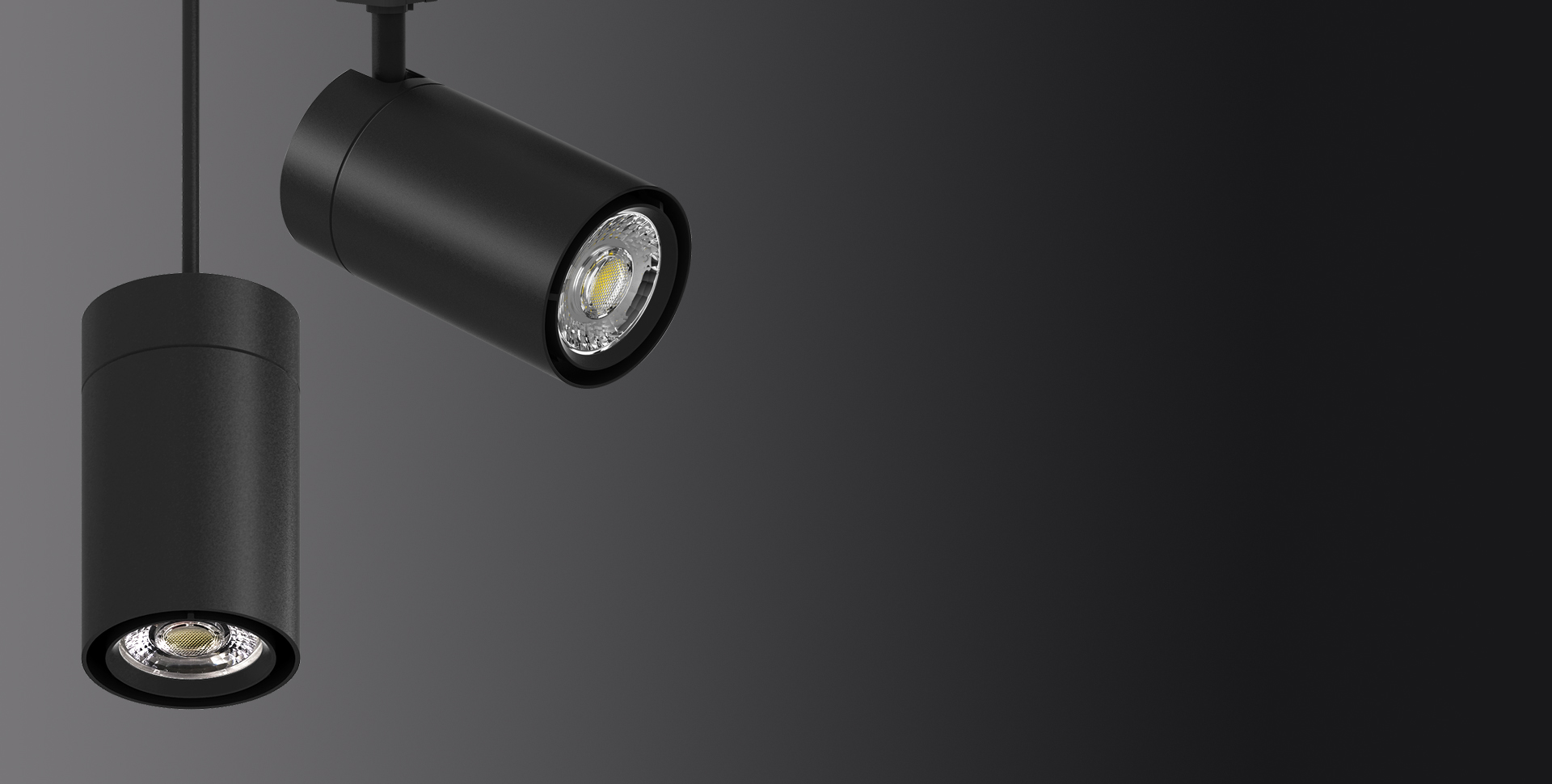

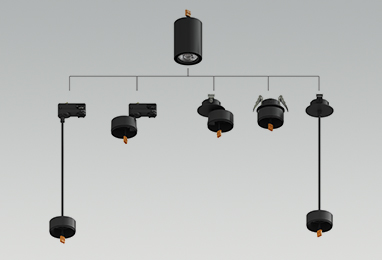

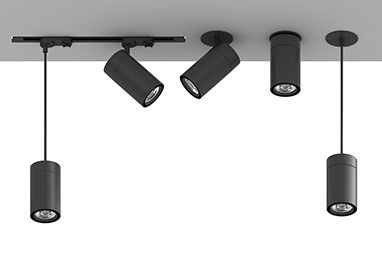

The Smarter series collection includes 5 different installations, which are flexible in design and tool-less interchangeable into track head, pendant, monopoint mounted, and surface mounted. The design makes optics, light engine, driver, and mounted parts in a separate module. lt's a high-performance portfolio dedicated to the architectural lighting segment, providing 880lm to 4100lm,15 to 60 beam spreads for options. A full list of lighting control accessories, like honeycomb, barndoor, snoot, linear lens, soft light lens, and color filter, makes it perfect for your projects.
Now, this series is upgraded to Ra 90+ with Luminus COB LEDs, and new drivers of flicker-free, which provides better quality of light.
Product advantage
Relevant data
Product parameter
| Product Name | D60mm Smarter G3 Track Head | D70mm Smarter G3 Track Head | D85mm Smarter G3 Track Head | D100mm Smarter G3 Track Head |
| Wattage | 8W | 10W/15W | 22W | 32W/40W |
| Max. Lumen (at 3000K) | 880lm | 10W 1100lm 15W 1620lm |
2300lm | 32W 3400lm 40W 4100lm (non-dim) |
| CCT | 2700K/3000K/3500K/4000K | 2700K/3000K/3500K/4000K | 2700K/3000K/3500K/4000K | 2700K/3000K/3500K/4000K |

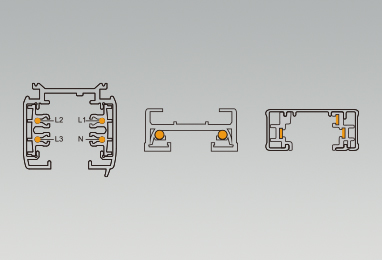

| Track system | 4wire 3circuit, 2wire 1circuit, 3wire 1circuit, | 4wire 3circuit, 2wire 1circuit, 3wire 1circuit, | 4wire 3circuit, 2wire 1circuit, 3wire 1circuit, | 4wire 3circuit, 2wire 1circuit, 3wire 1circuit, |
| Beam angle | 15°，24°，38°，60° | 15°，24°，38°，60° | 15°，24°，38°，60° | 15°，24°，38°，60° |
| Color | White，Black | White，Black | White，Black | White，Black |
| Horizontal Rotation | 360° | 360° | 360° | 360° |
| Vertical Adjustable | 90° | 90° | 90° | 90° |
| Warranty | 5-years | 5-years | 5-years | 5-years |
| Certificate | CE, RoHs, CB, UKCA,RCM | CE, RoHs, CB, UKCA,RCM | CE, RoHs, CB, UKCA,RCM | CE, RoHs, CB, UKCA,RCM |

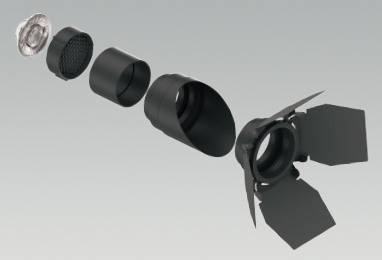

| Accessories | Snoot, Honeycomb, Oval snoot, Barndoor, Lens | Snoot, Honeycomb, Oval snoot, Barndoor, Lens | Snoot, Honeycomb, Oval snoot, Barndoor, Lens | Snoot, Honeycomb, Oval snoot, Barndoor, Lens |

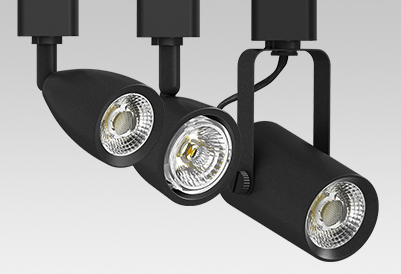

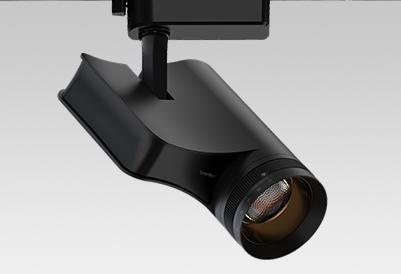

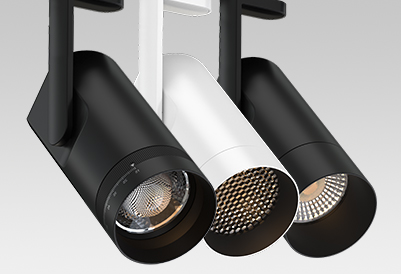

Related products
