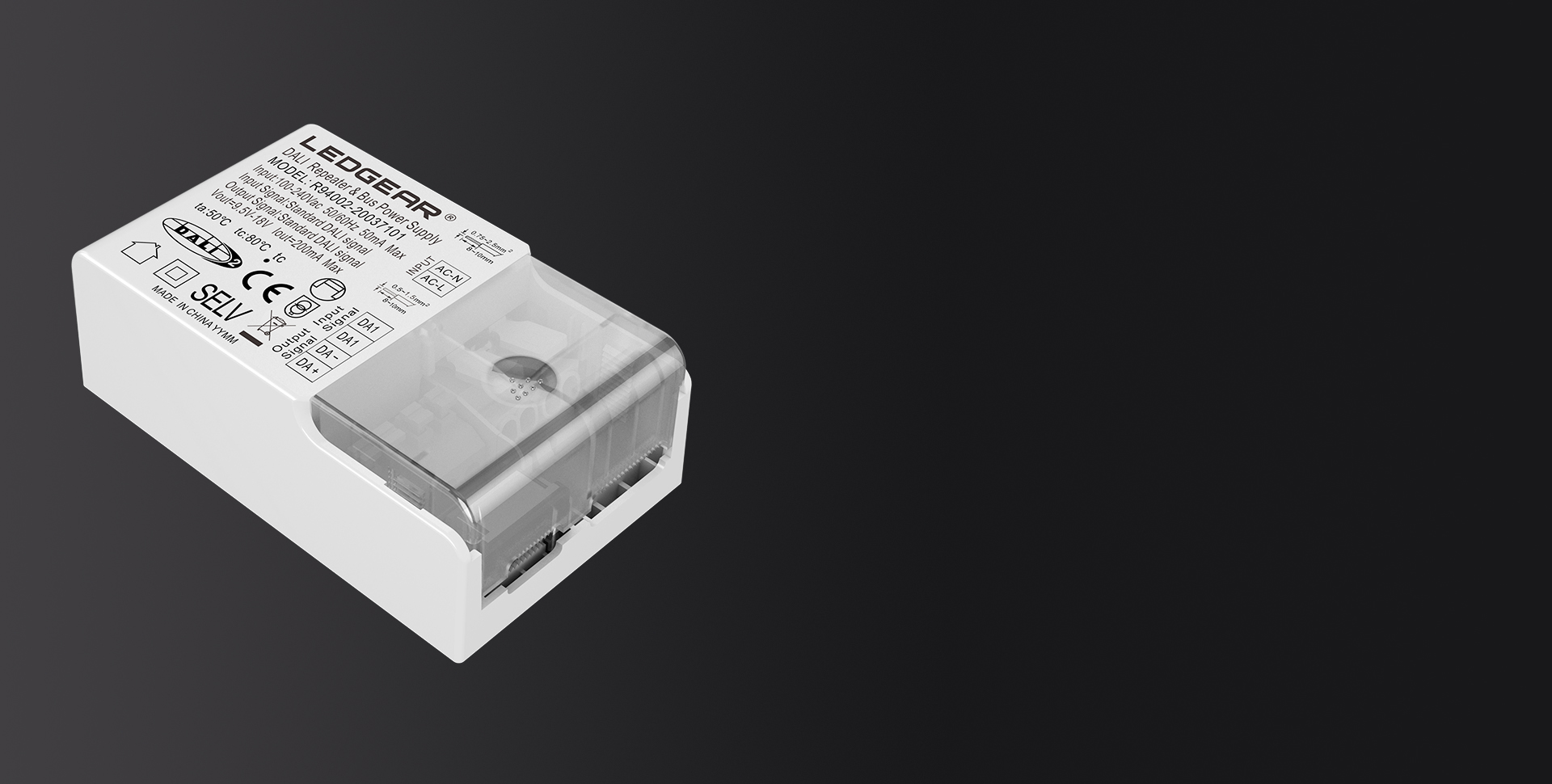

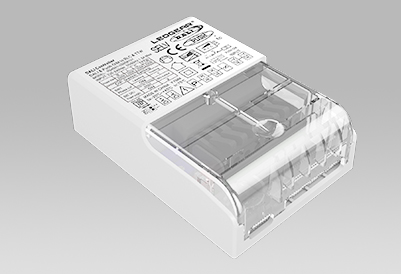

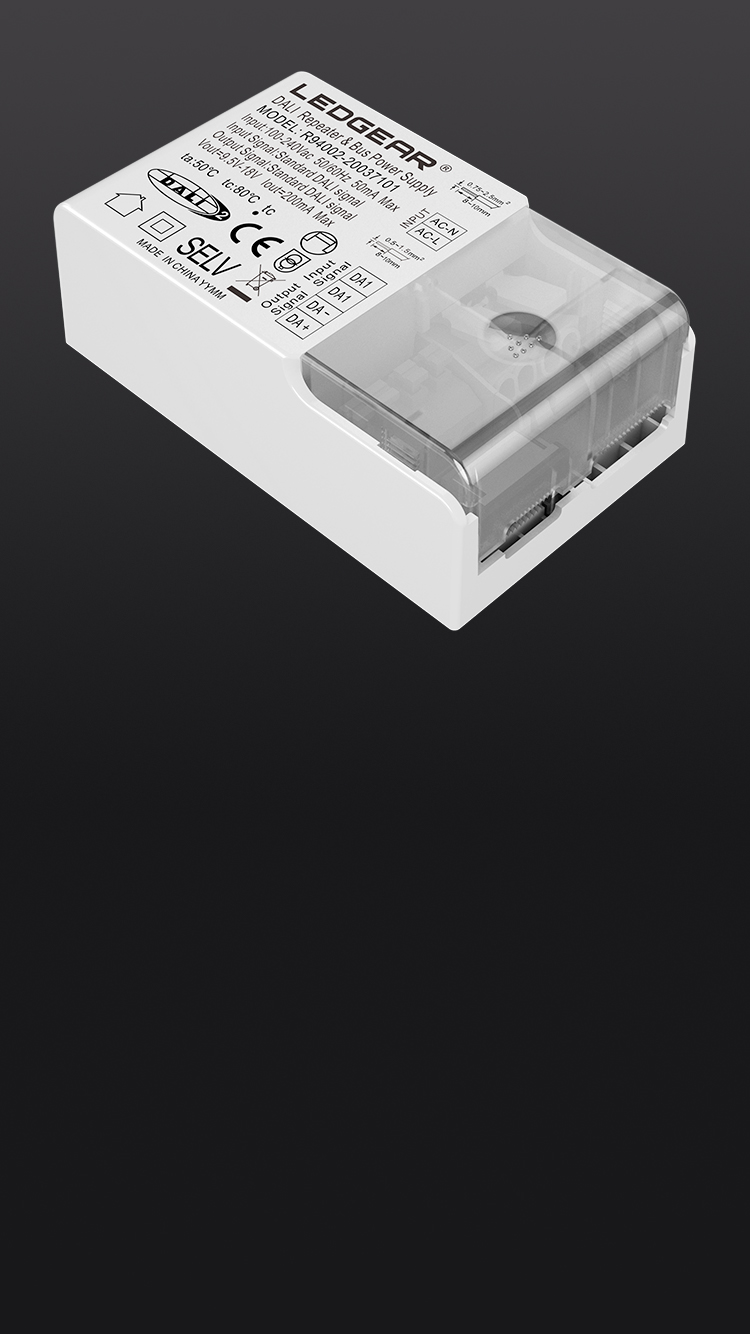

LEDGEAR® DALI Repeater & Bus Power Supply(2in1)
DALI repeater amd DALI Bus Power Supply 2in1 Design
Through wiring at primary side; universal input
With the scalability of DALI application, Kinglumi introduces LEDGEAR® DAL I Repeater & Bus Power Supply & R94002-20037101. In addition to power up to 64 DALI ECGs plus 36 input devices, It can also power the DALI controllers and input devices without internal power supply (including DALI dimmer, DALI panels, DALI groupings, scene controllers). In addition, R94002-20037101 can switch to the repeater mode which amplify the DALI signal for DALI line extending.
R94002-20037101 is fully compliant with IEC62386-101 DALI standard, EN61547, EN61347-1 and EN55015/IEC CISPR15. Universal input from 100 to 240VAC allows it to be used anywhere in the world, and certified to Class II, providing perfect solutions for DALI control system.
Product Advantages
Relevant data
Product parameter
| Model | F94002 |
| Output Type | DALI Power |
| Input Type | DALI Bus Power Supply |
| Standby Power | ≤0.5W |
| AC Votlage Range | 100-240VAC |
| Frenquency Range | 50/60Hz |
| Input Power | 5W @230Vac |
| Max. output current | 200mA |
| Max. length between device & luminaire | 300M |
| Warranty | 5 years |
| Dimension | 85x52x29.5mm |
| Packaging | 440x320x220MM/ 80pcs per carton |
