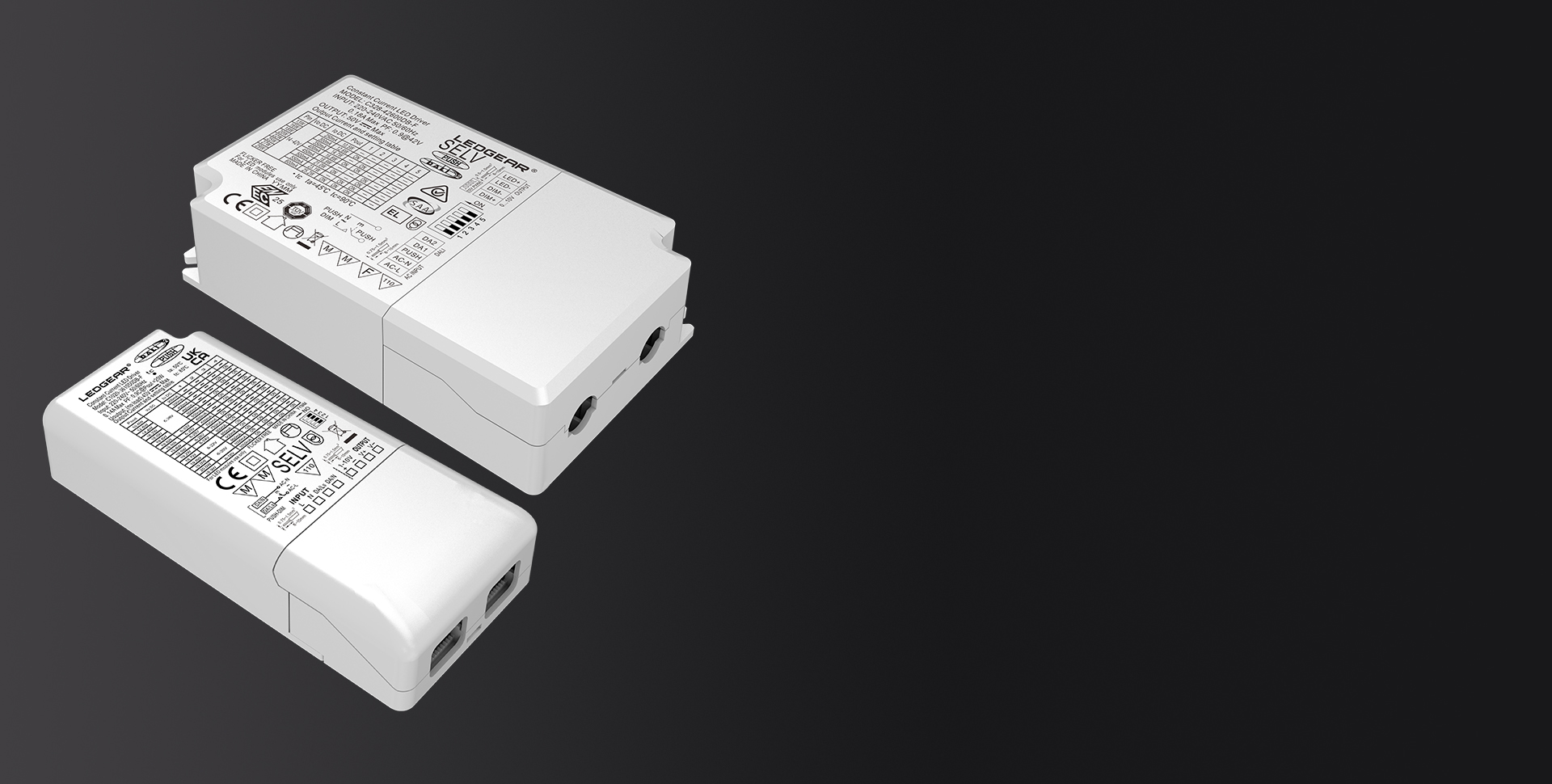

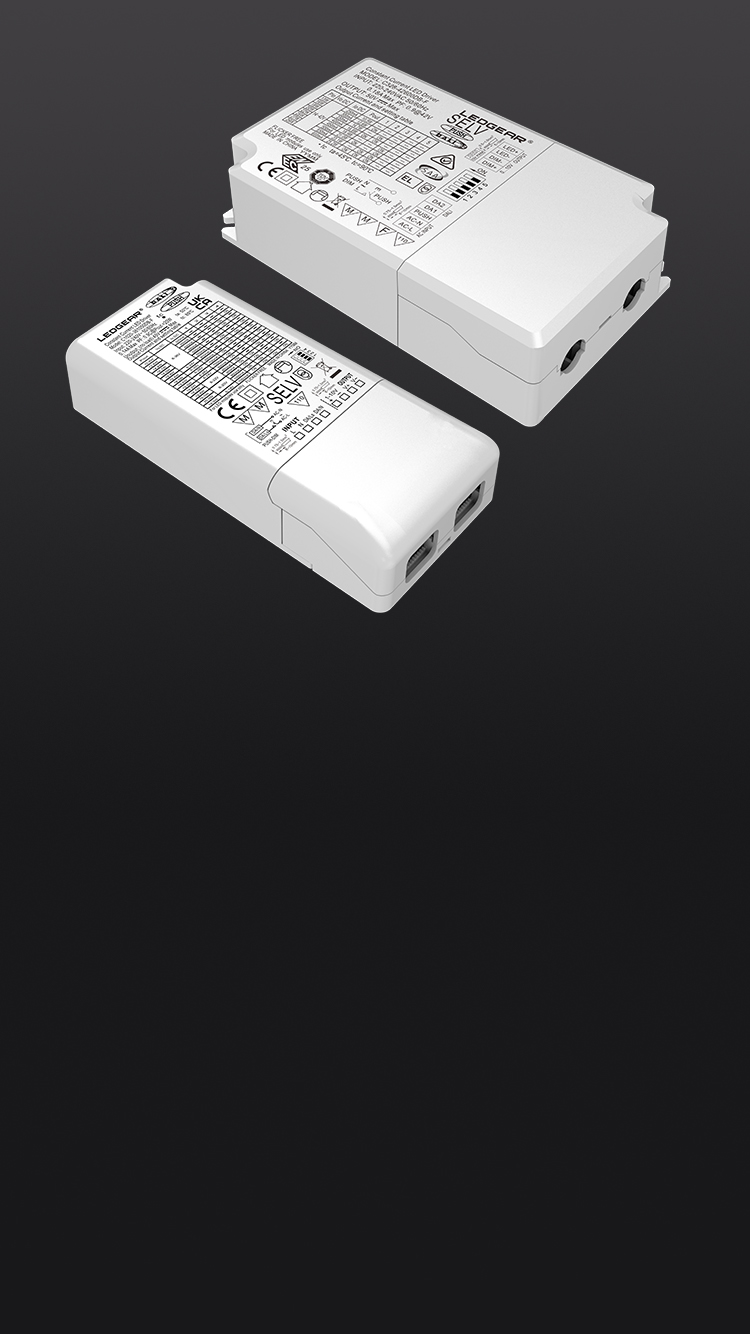

One4all Collection Driver
High quality independent DALI 2, Push-DIM, 1-10V, 10V PWM LED driver
Features & Benefits
· Versatile Dimming: Supports DALI, Push-DIM, 1-10V, Resistance.
· Wide dimming range: 0.1%-100% (DALI, Push); 5%-100% (others).
· DALI member: Compatible with universal DALI approved devices.
· Adjustable current output: Customizable via DIP switches.
· Constant Light Output (CLO) function on request.
· Flicker-Free Lighting: <3% flicker, IEEE1789 compliant.
· Independent ECG with tool-less strain-relief for enhanced durability.
· Enhanced amplitude dimming technology for superior lighting control.
· Permanent memory for DALI & Push dimming settings.
· Long lifespan: 50,000 hours.

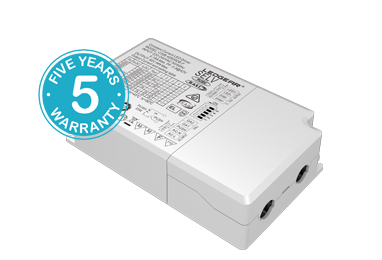

· Warranty & support: 5-year guarantee, lifetime technical assistance.
· Sustainable packaging without plastic.
· Over current, Over voltage, Short circuit, Over temperature
Relevant Data
Product Parameter
| Product code | C328-42600DB-F | C350-42110DB-F | C1020-361050DB-F | C1020-52550DB-F |
| Housing | C3 | C3 | C10 | C10 |
| Output power(W) | 25 | 46 | 20 | 20 |
| Dimming range(%) | 1-100 | 1-100 | 0.1-100 | 0.1-100 |
| Output current range(mA) | 250-600 | 650-1100 | 300-1050 | 120-550 |
| Output voltage range(Vdc) | 14-42 | 14-42 | 6-36 | 6-52 |
| Output levels | 10 | 10 | 16 | 16 |
| Pst | <0.8 | <0.8 | <0.8 | <0.8 |
| SVM | <0.3 | <0.3 | <0.3 | <0.3 |
| Flicker % | <3% | <3% | <3% | <3% |
| Dimension(mm） | 125x76x30 | 125x76x30 | 110x50x22 | 110x50x22 |
