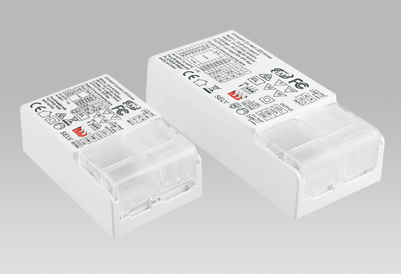

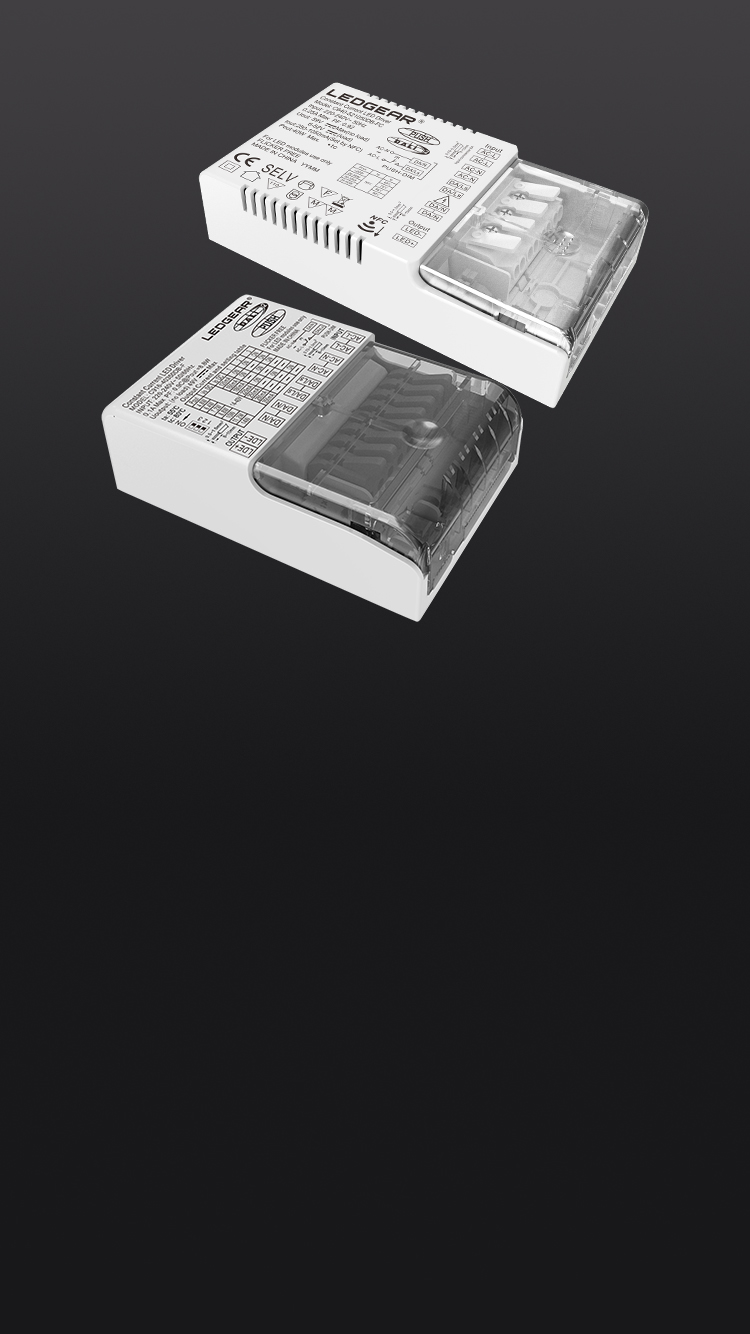

LEDGEAR NFC Programmable DALI2 Collection Driver

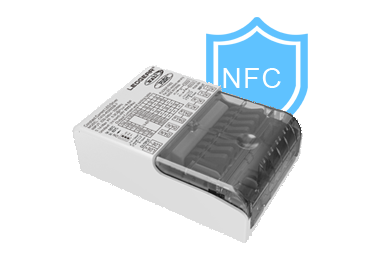

NFC Programmable DALI 2, Push-DIM with CLO capability LED driver
Features & Benefits
Relevant Data
Product Parameter
| Product code | C640-521050DB-FC | C655-521500DB-FC | C920-361050DB-FC | C920-50550DB-FC |
| Housing | C6 | C6 | C9 | C9 |
| Output power(W) | 40 | 57 | 20 | 20 |
| Dimming range(%) | 0.1-100 | 0.1-100 | 0.1-100 | 0.1-100 |
| Output current range(mA) | 250 - 1050 | 350 - 1500 | 300-1050 | 100-550 |
| Output voltage range(Vdc) | 6-52 | 6-52 | 3-36 | 6-50 |
| Pst | 0.01 | 0.01 | 0.01 | 0.01 |
| SVM | 0.01 | 0.01 | 0.01 | 0.01 |
| Flicker % | <0.3% | <0.3% | <0.3% | <0.3% |
| Dimension(mm） | 130.5 x 73 x 29.8 | 130.5 x 73 x 29.8 | 87.5 x 60 x27.5 | 87.5 x 60 x27.5 |
