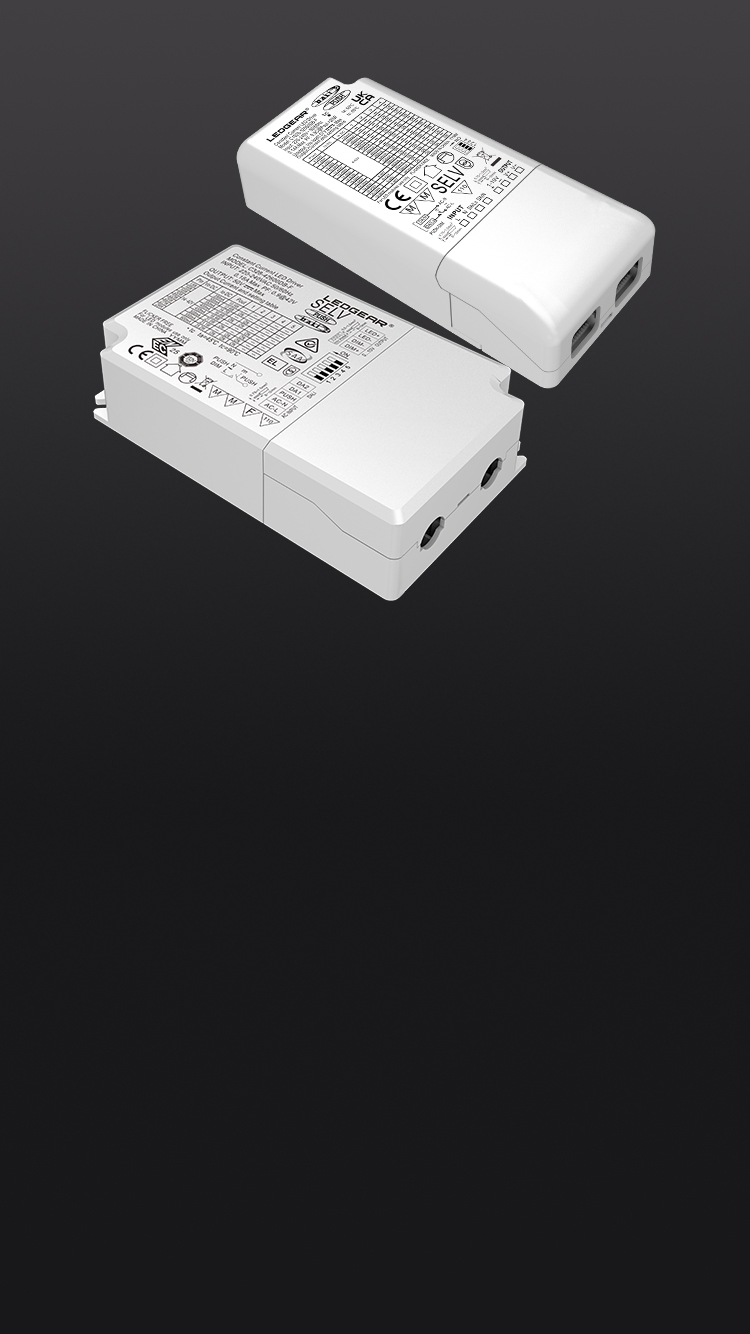

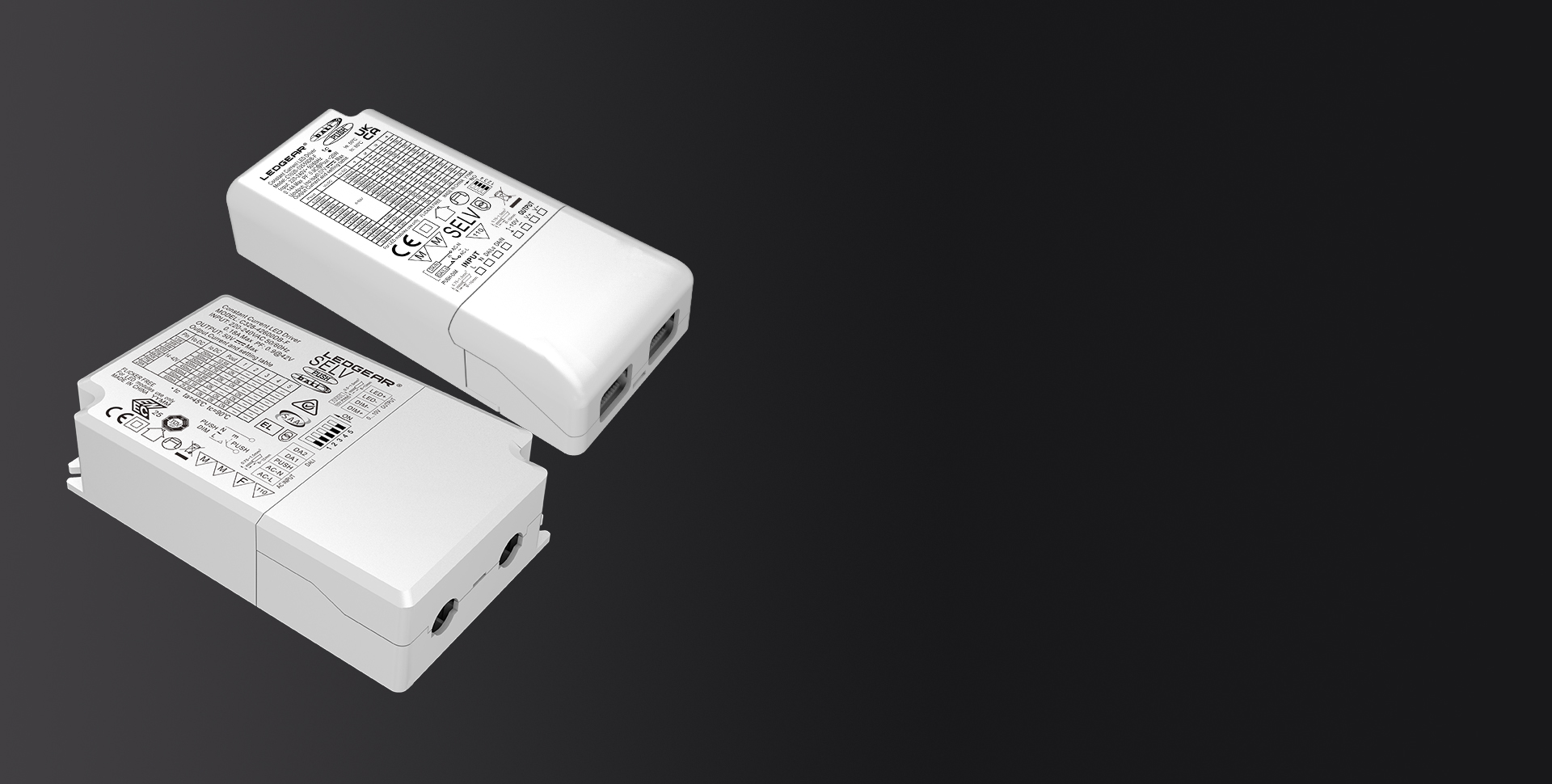

LEDGEAR NFC Programmable One4all Collection Driver
NFC Programmable DALI 2, Push-DIM, 1-10V with CLO capability LED driver
Features & Benefits
Relevant Data
Product Parameter
| Product code | C350-521500DB-FC | C330-521050DB-FC | C1020-361050DB-FC | C1020-50550DB-FC |
| Housing | C3 | C3 | C10 | C10 |
| Output power(W) | 50 | 30 | 20 | 20 |
| Dimming range(%) | 0.1-100 | 0.1-100 | 0.1-100 | 0.1-100 |
| Output current range(mA) | 350-1500 | 250-1050 | 250-1050 | 100-550 |
| Output voltage range(Vdc) | 6-52 | 6-52 | 3-36 | 6-50 |
| Pst | 0.01 | 0.01 | 0.01 | 0.01 |
| SVM | 0.01 | 0.01 | 0.01 | 0.01 |
| Flicker % | <0.3% | <0.3% | <0.3% | <0.3% |
| Dimension(mm） | 125x76x30 | 125x76x30 | 110x50x22 | 110x50x22 |
