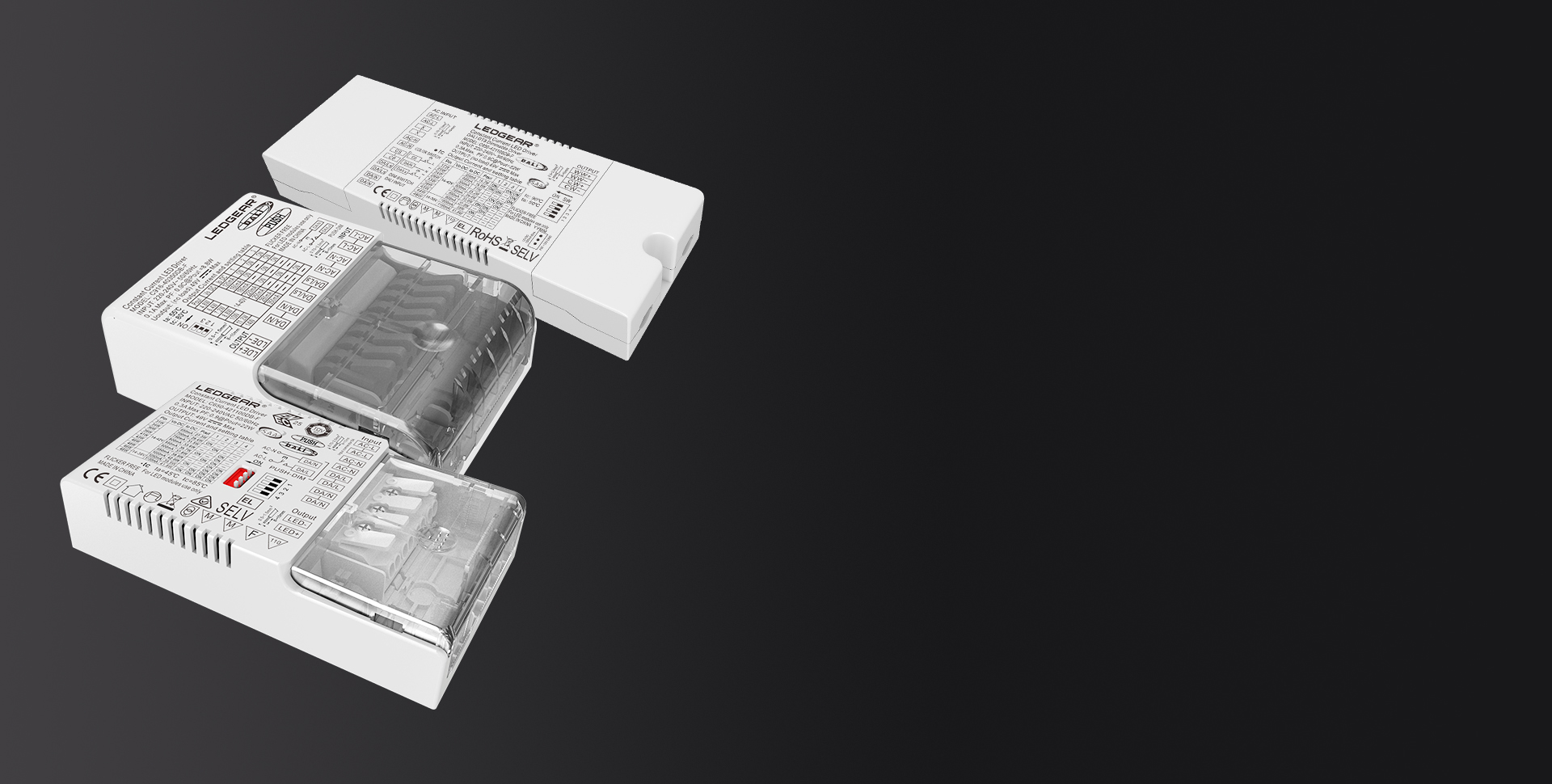

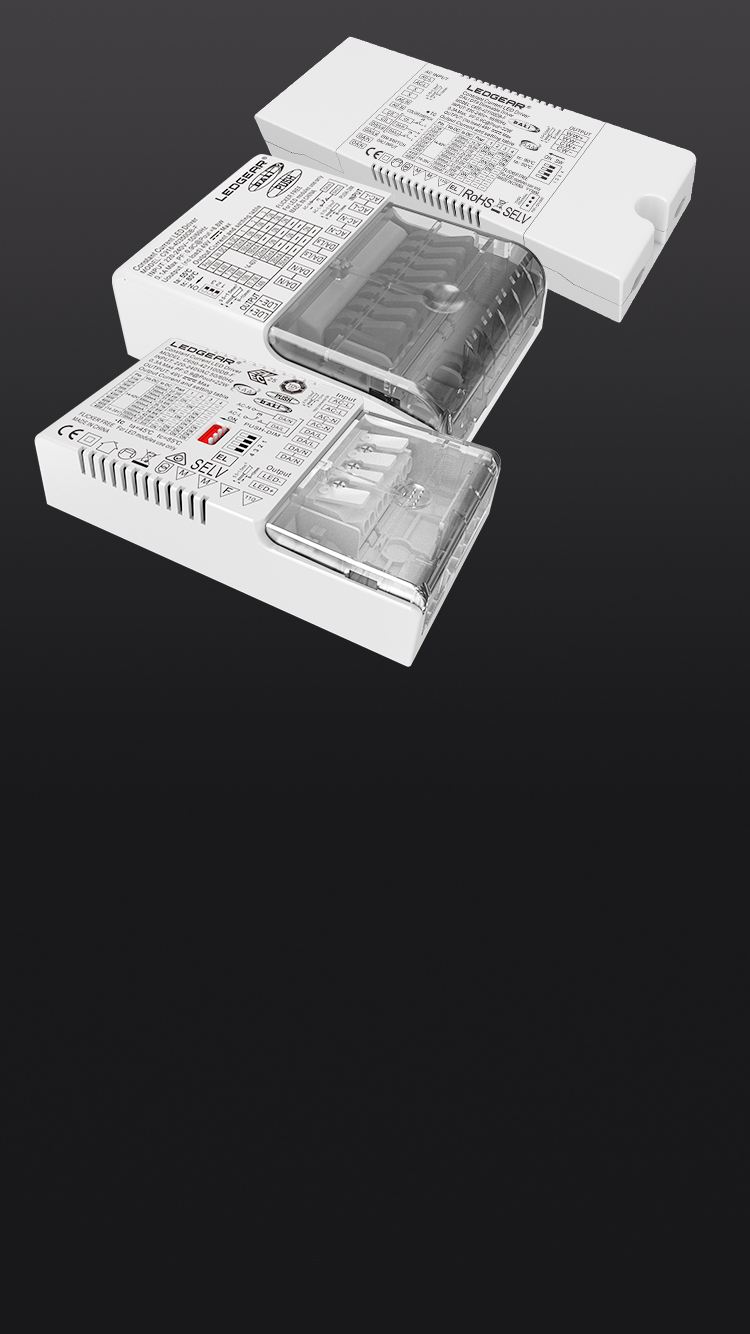

DALI 2 Pro Collection Driver
DALI DT6, Push-DIM With looping Quick installation LED driver for downlights and panel lights
Features & Benefits
Premium Dimming: Supports DALI and Push-DIM.
Wide dimming range: 1%-100%.
DALI member: Compatible with universal DALI approved devices.
Looping Design: At primary side, DALI and Push-DIM connection.
Adjustable current output: Customizable via DIP switches.
Constant Light Output (CLO) function on request.
Flicker-Free Lighting: <3% flicker, IEEE1789 compliant.
Independent ECG with tool-less strain-relief for enhanced durability.
Enhanced amplitude dimming technology for superior lighting control.
Permanent memory for DALI & Push dimming settings.
Long lifespan: 50,000 hours.

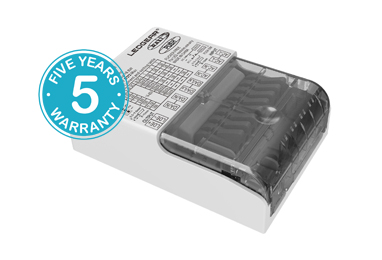

Warranty & support: 5-year guarantee, lifetime technical assistance.
Strain relief with through wiring function.
Over current, Over voltage, Short circuit, Over temperature
Relevant Data
Product Parameter
| Product code | C916-40350DB-F | C922-40500DB-F | C628-42600DB-F | C650-421100DB-F | C665-421500DB-F | C850-421100DB-F |
| Housing | C9 | C9 | C6 | C6 | C6 | C8 |
| Output power(W) | 14 | 19 | 25 | 42 | 57 | 42 |
| Dimming range(%) | 1-100 | 1-100 | 1-100 | 1-100 | 1-100 | 1-100 |
| Output current range(mA) | 120-350 | 300-500 | 250-600 | 650-1100 | 1150-1500 | 350-1100 |
| Output voltage range(Vdc) | 14-40 | 14-40 | 14-42 | 14-42 | 14-40 | 14-42 |
| Output levels | 7 | 7 | 8 | 10 | 8 | 9 |
| Pst | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 | <0.8 |
| SVM | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 |
| Flicker % | <3% | <3% | <3% | <3% | <3% | <3% |
| Dimension(mm） | 87.5x60x27 | 87.5x60x27 | 130.5x73x29.8 | 130.5x73x29.8 | 130.5x73x29.8 | 200x73x29.8 |
