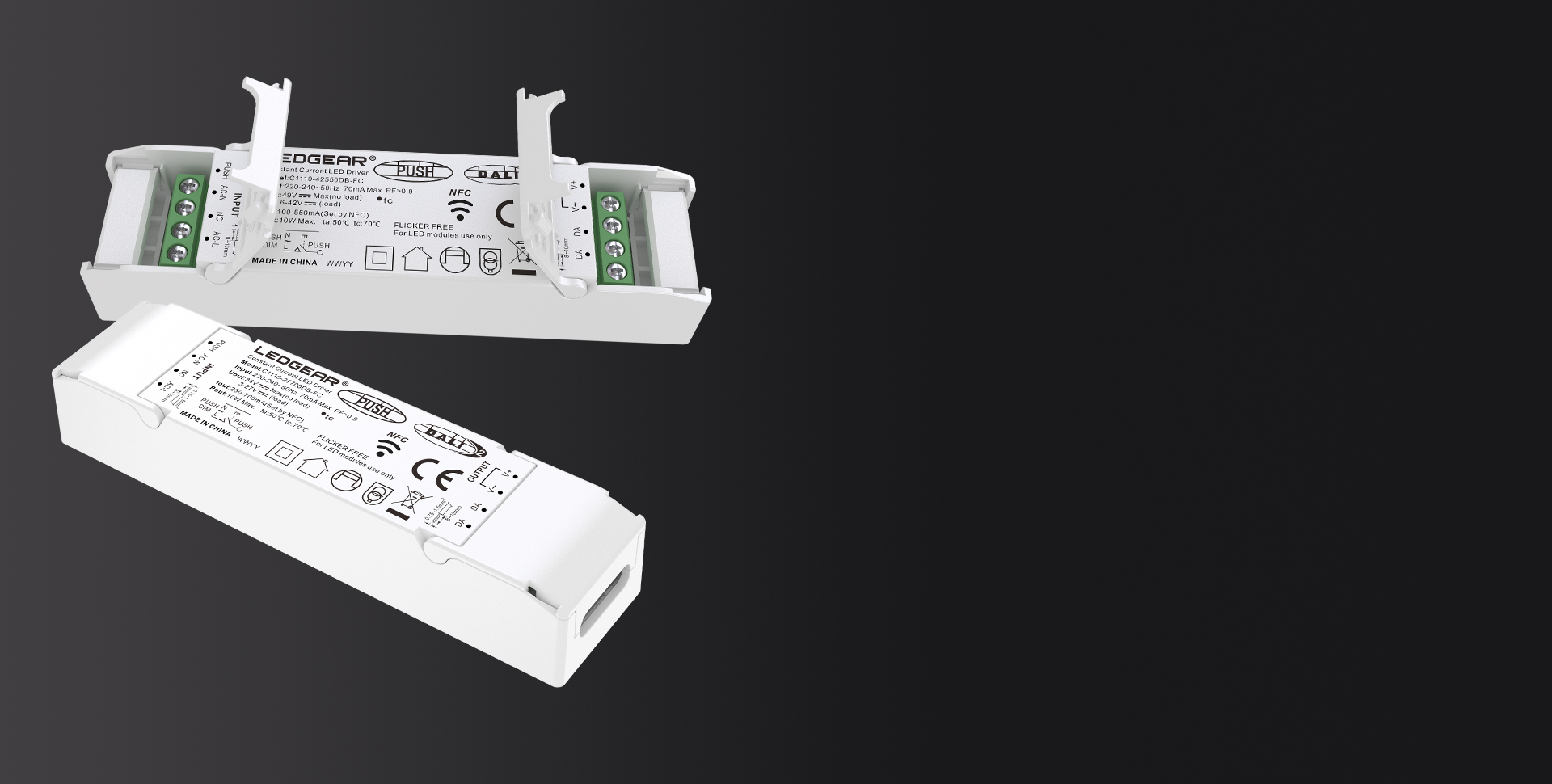

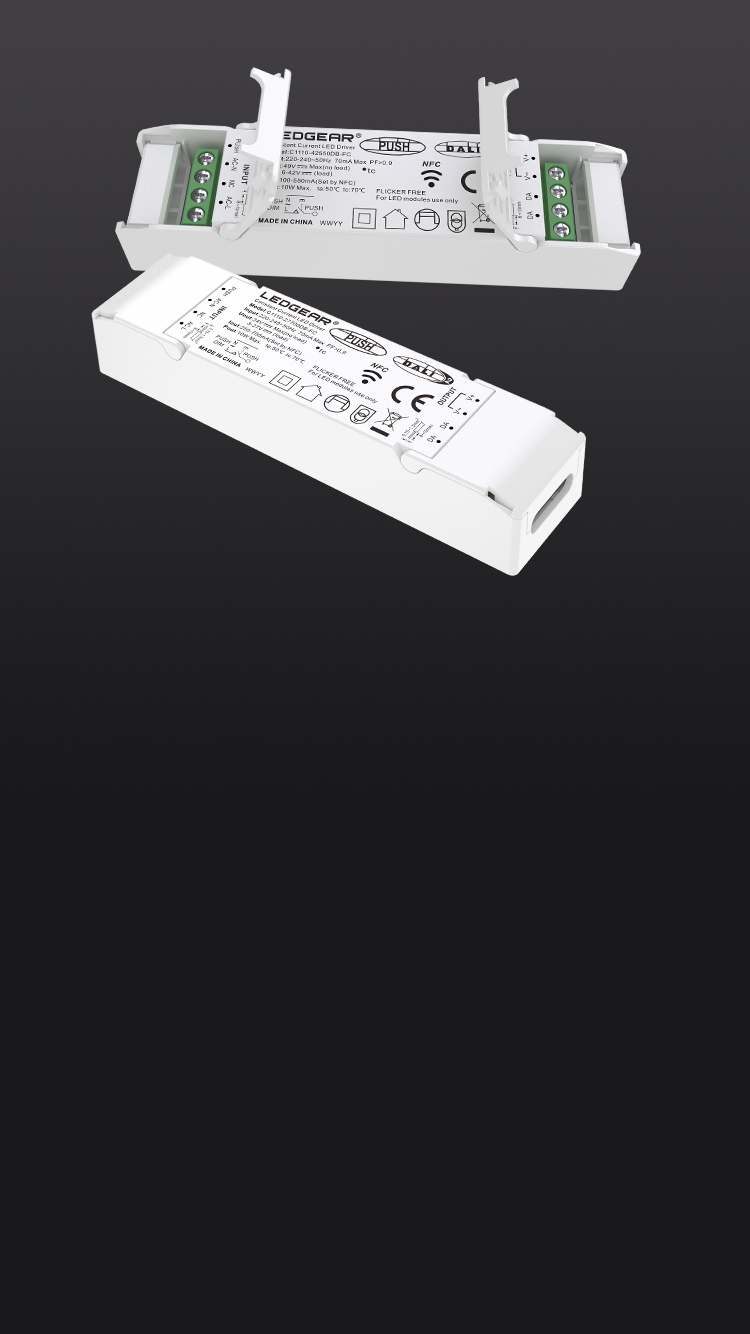

LEDGEAR NFC Programmable DALI2 Mini Driver
NFC Programmable DALI 2, Push-DIM, CLO capability LED driver
Features & Benefits
Wide Operating Range: Ensures adaptability across diverse LED modules,and
luminaires
Extensive Dimming Capability:Achieve ultra-low dimming down to 0.1%
Flexible Dimming Modes:Supports DALI2,Push-DIM

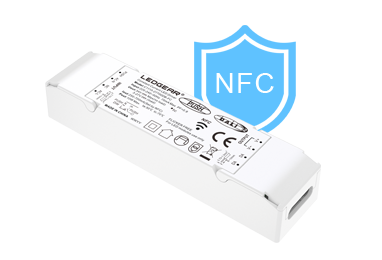

Simplified Setup and Maintenance: NFC-enabled fo intuitive configuration and
upkeep
Relevant Data
Product Parameter
| Product code | C1110-27700DB-FC | C1110-42550DB-FC |
| Housing | C11 | C11 |
| Output power(W) | 10 | 10 |
| Dimming range(%) | 0.1-100 | 0.1-100 |
| Output current range(mA) | 250-700 | 100-550 |
| Output voltage range(Vdc) | 3-27 | 3-27 |
| Pst | 0.01 | 0.01 |
| SVM | 0.01 | 0.01 |
| Flicker % | <0.3% | <0.3% |
| Dimension(mm） | 115 x 29 x 21 | 115 x 29 x 21 |
